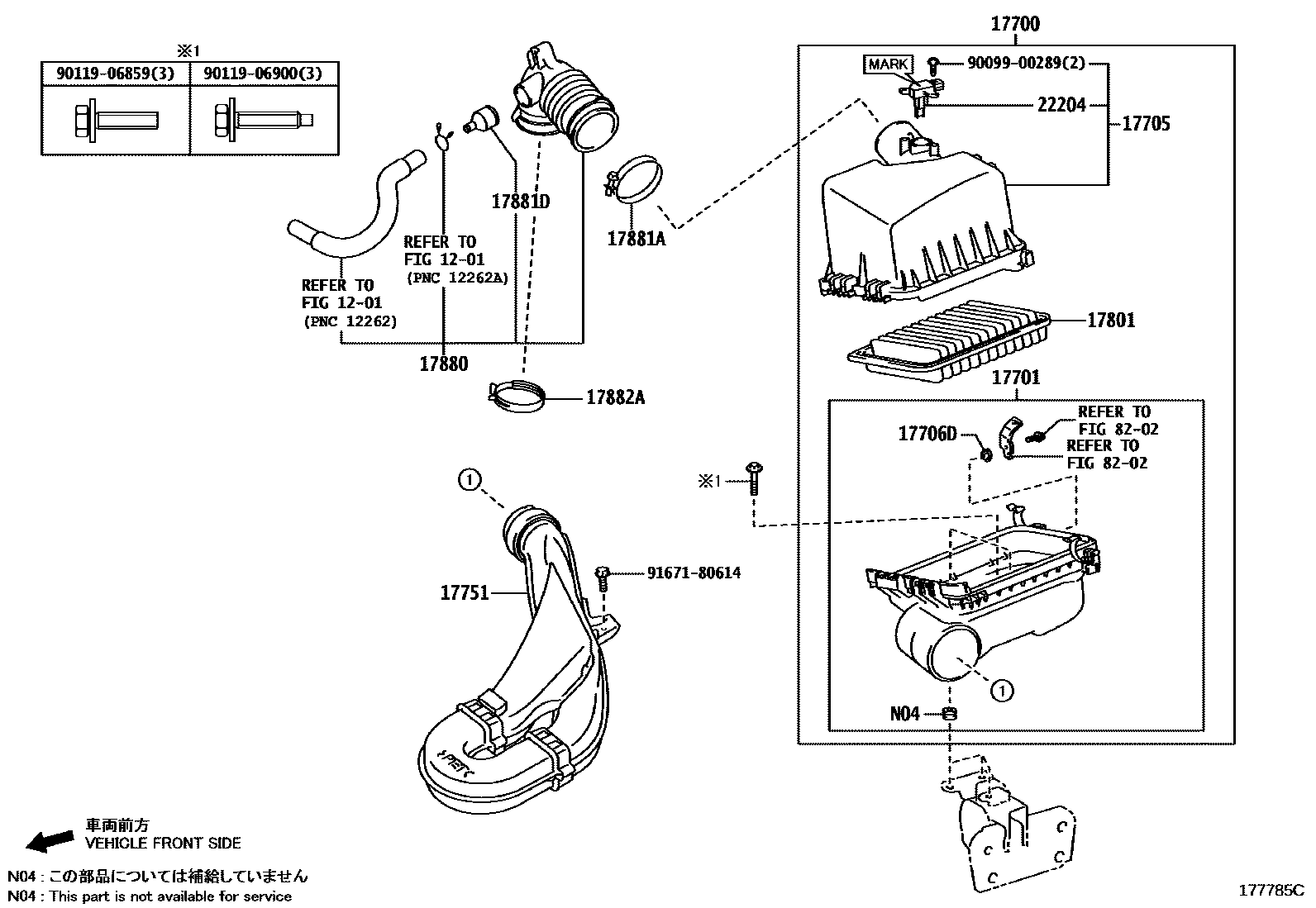

AIR CLEANER

0001 1 0002 1 0003 1

1201

17700CLEANER ASSY, AIR

main17700-37231i1ZRFAE,2ZRFE..ZRE18#201208-201503

main17700-37252i2ZRFXE..ZWE186201604

main17700-47131i1NRFE..NRE180201208-201503

17701CASE SUB-ASSY, AIR CLEANER

main17701-21110i1ZRFAE,2ZRFE..ZRE18#201208-201805

main17701-37170i2ZRFXE..ZWE186201604-201805

17705CAP SUB-ASSY, AIR CLEANER

main17705-37111i1ZRFAE,2ZRFE..ZRE18#201208-201503

main17705-37121i2ZRFXE..ZWE186201604

main17705-47081i1NRFE..NRE180201208-201503

17706DSTAY SUB-ASSY, AIR CLEANER

main17706-21010i1NRFE..NRE180201208-201503

17751INLET, AIR CLEANER, NO.1

main17751-37120i2ZRFE..ZRE182201208-201503

main17751-47070i1NRFE..NRE180201208-201503

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i1ZRFAE,2ZRFE..ZRE18#201208-201503

main17801-37021i2ZRFXE..ZWE186201604

17880HOSE ASSY, AIR CLEANER

main17880-47010i1NRFE..NRE180201208-201503

17881HOSE, AIR CLEANER, NO.1

main17880-22110i2ZRFE..ZRE182201208-201503

main17880-22120i1ZRFAE..ZRE181201208-201503

main17881-37120i2ZRFXE..ZWE186201604

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZWE186201604

main96111-10750i1ZRFAE,2ZRFE..ZRE18#201208-201503

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i1NRFE..NRE180201208-201503

17882HOSE, AIR CLEANER, NO.2

main17882-37040i2ZRFXE..ZWE186201604

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ZRFXE..ZWE186201208-201503

main96111-10780i1ZRFAE,2ZRFE..ZRE18#201208-201503

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1NRFE..NRE180201208-201503

MARK 22204-0T040

sub22204-28010

main22204-0V010i1NRFE..NRE180201208-201503

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1ZRFAE,2ZR#..ZRE18#,ZWE186201208-201503

MARK 22204-0V020

main22204-28010i1NRFE..NRE180201208-201503

MARK 22204-28010

8202

9009900289

main90099-00289

9011906859

main90119-06859

9011906900

main90119-06900

9167180614

main91671-80614

19 parts on this diagram · 3 diagrams in section
