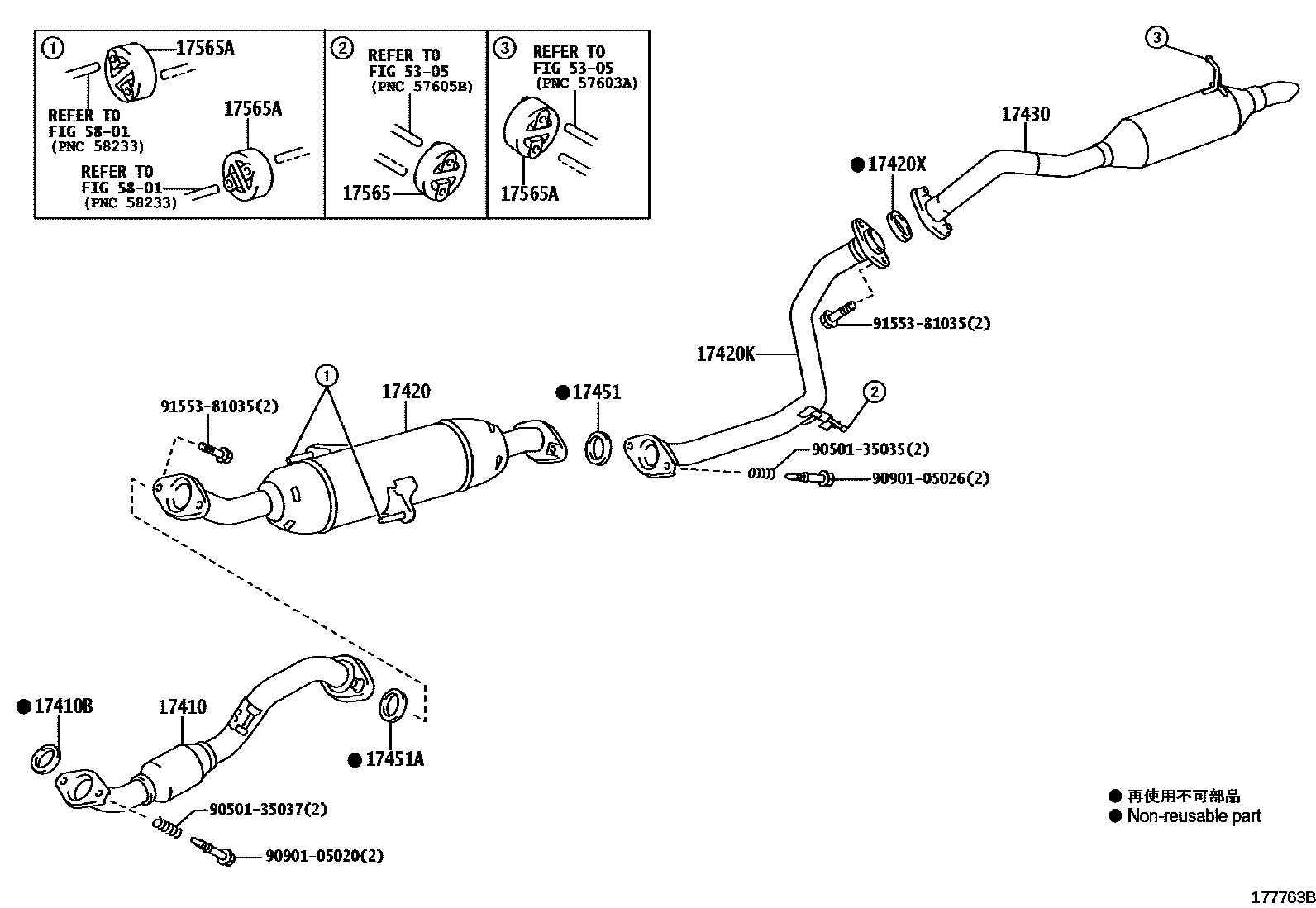

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-37340i1ZRFAE..ZRE181201208-201503

*114=*389

main17410-37620i2ZRFE..ZRE182201208-201503

main17410-37770i2ZRFXE..ZWE186201604

main17410-37A60i1ZRFAE..ZRE181201503

main17410-37A70i2ZRFE..ZRE182201503

main17410-47110i1NRFE..NRE180201503

*114=TOYOTA/CE9/Y

17410BGASKET, EXHAUST PIPE

main17451-28040i1ZRFAE,2ZRFE..ZRE18#201208-201503

main17451-47020i1NRFE..NRE180201503

17420PIPE ASSY, EXHAUST, CENTER

main17420-22110i1ZRFAE,2ZRFE..ZRE18#201208-201503

main17420-47070i1NRFE..NRE180201503

17420KPIPE ASSY, EXHAUST, CENTER NO.2

main17420-22110i1NRFE..NRE180201503

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

17430PIPE ASSY, EXHAUST, TAIL

main17430-37670i2ZRFXE..ZWE186201604

main17430-47141i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201503

17451GASKET, EXHAUST PIPE

main17451-23042i2ZRFXE..ZWE186201604

main17451-28032i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06089i1NRFE..NRE180201208-201503

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i1NRFE,1ZRFAE,2ZRFE..NRE180,ZRE18#201208-201503

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155381035

main91553-81035

17 parts on this diagram · 3 diagrams in section
