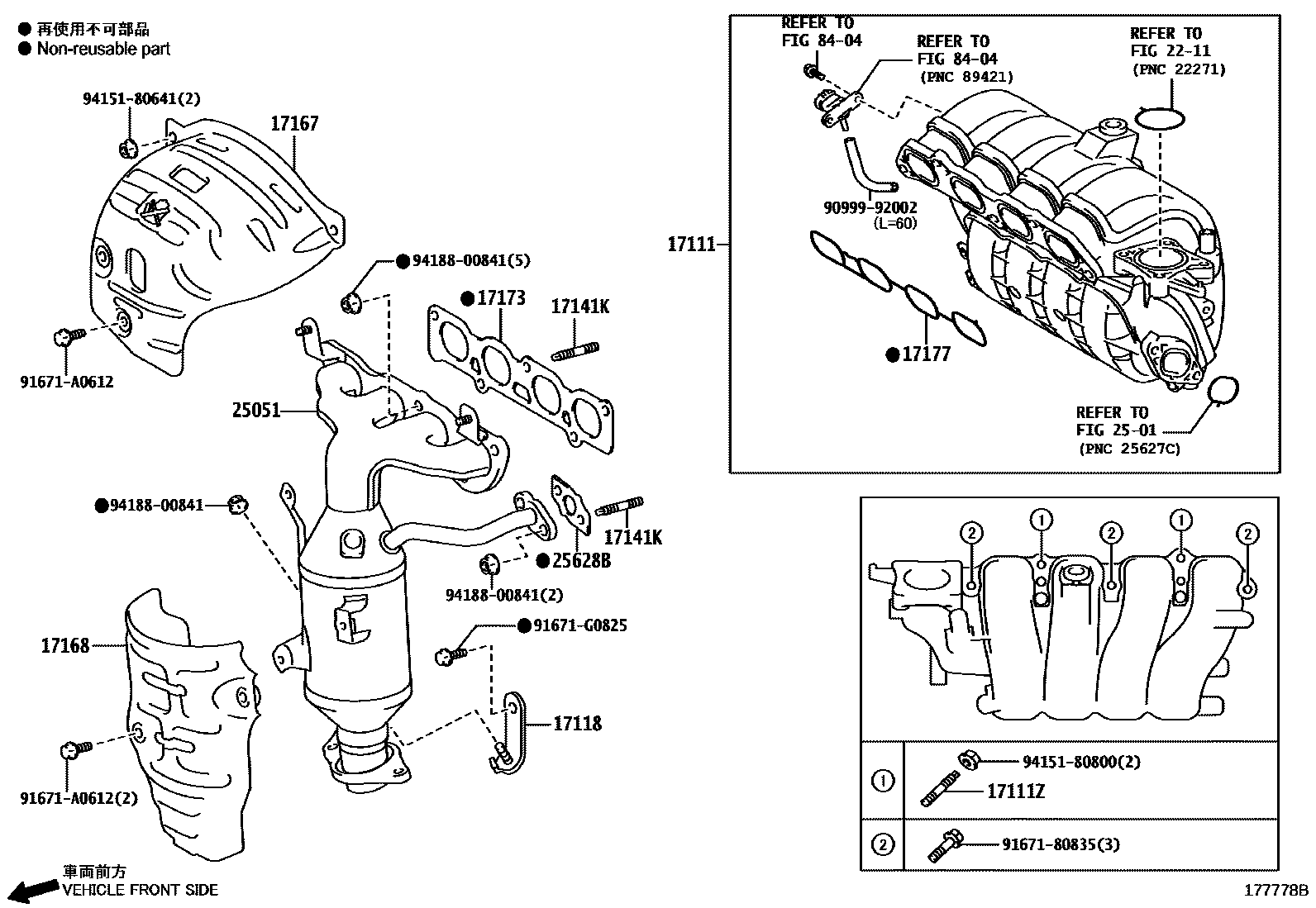

MANIFOLD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/47070/Y
*114=TOYOTA/47130/Y
25628BGASKET, EGR INLET
8404ELECTRONIC FUEL INJECTION SYSTEM
9099992002
main90999-92002
9167180835
main91671-80835
91671A0612
main91671-A0612
91671G0825
main91671-G0825
9415180641
main94151-80641
9415180800
main94151-80800
9418800841
main94188-00841
21 parts on this diagram · 5 diagrams in section
