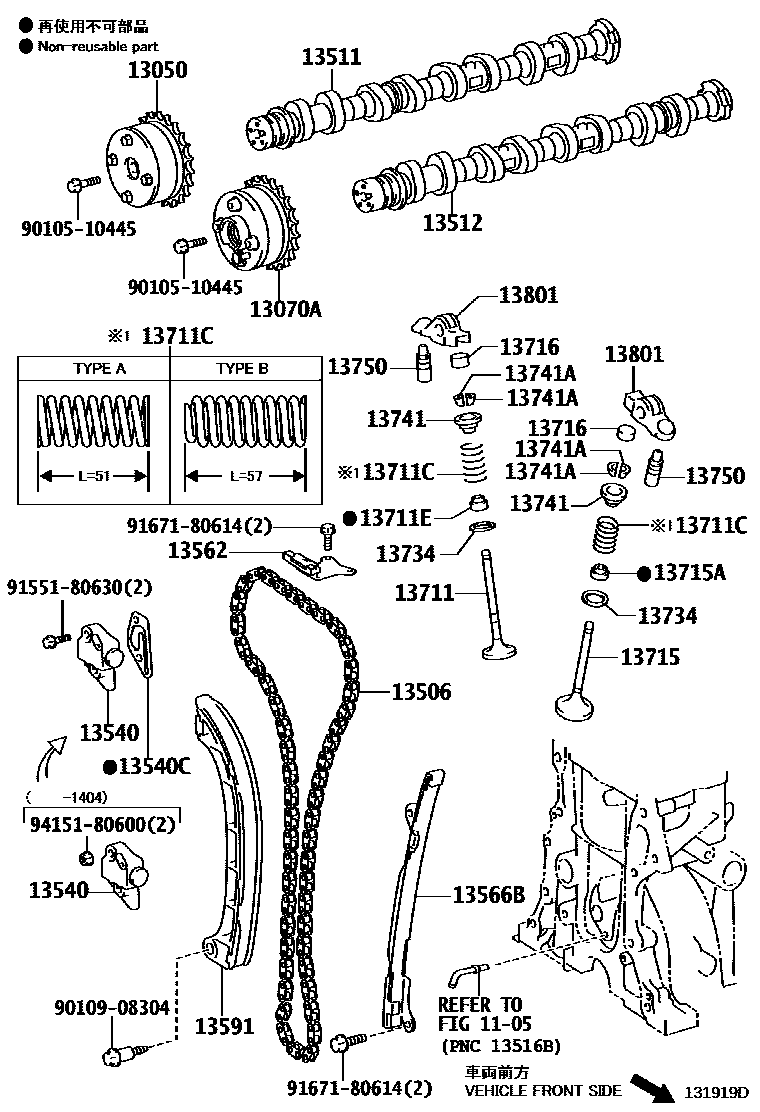

CAMSHAFT & VALVE
1105CYLINDER BLOCK
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13511CAMSHAFT
(L)
(J)
13512CAMSHAFT, NO.2
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13562DAMPER, CHAIN VIBRATION, NO.2
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711CSPRING, COMPRESSION(FOR OUTER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13711C=TYPE A
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
PNC 13711C=TYPE A
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
PNC 13711C=TYPE B
PNC 13711C=TYPE A
9010510445
main90105-10445
9010908304
main90109-08304
9155180630
main91551-80630
9167180614
main91671-80614
9415180600
main94151-80600
27 parts on this diagram · 4 diagrams in section
