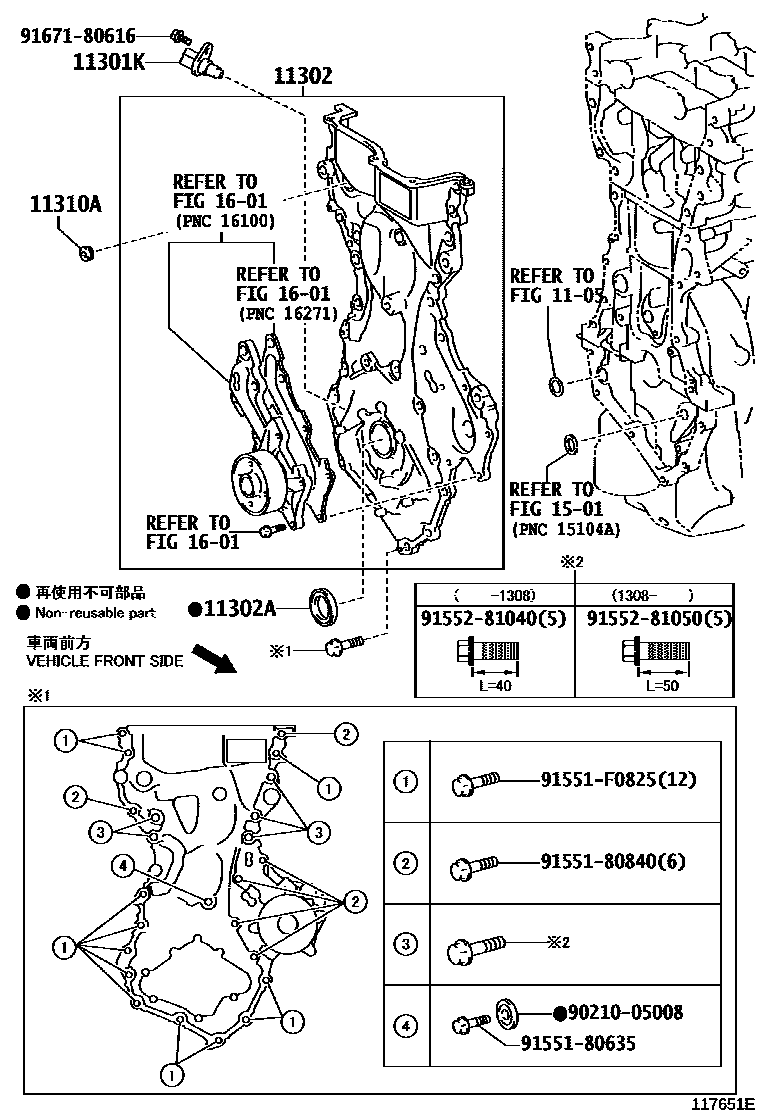

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301KSENSOR, CRANK POSITION

main90919-05073i1NRFE..NRE180201208-201503

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37011i1ZRFAE,2ZRFE..ZRE18#201208-201503

main11310-37040i2ZRFE..ZRE182201503

main11310-37062i2ZRFXE..ZWE186201604

main11310-47040i1NRFE..NRE180201208-201308

main11310-47041i1NRFE..NRE180201308-201406

main11310-47042i1NRFE..NRE180201503

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-25021i1NRFE..NRE180201208-201303

main90311-25032i1NRFE..NRE180201303-201503

main90311-38096i1ZRFAE,2ZRFE..ZRE18#201208-201503

11310APLUG, TAPER SCREW(FOR TIMING CHAIN COVER)

main90344-53006iNRE180201208-201503

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9021005008

main90210-05008

9155180635

main91551-80635

9155180840

main91551-80840

91551F0825

main91551-F0825

9155281040

main91552-81040

9155281050

main91552-81050

9167180616

main91671-80616

14 parts on this diagram · 3 diagrams in section
