ENGINE OVERHAUL GASKET KIT

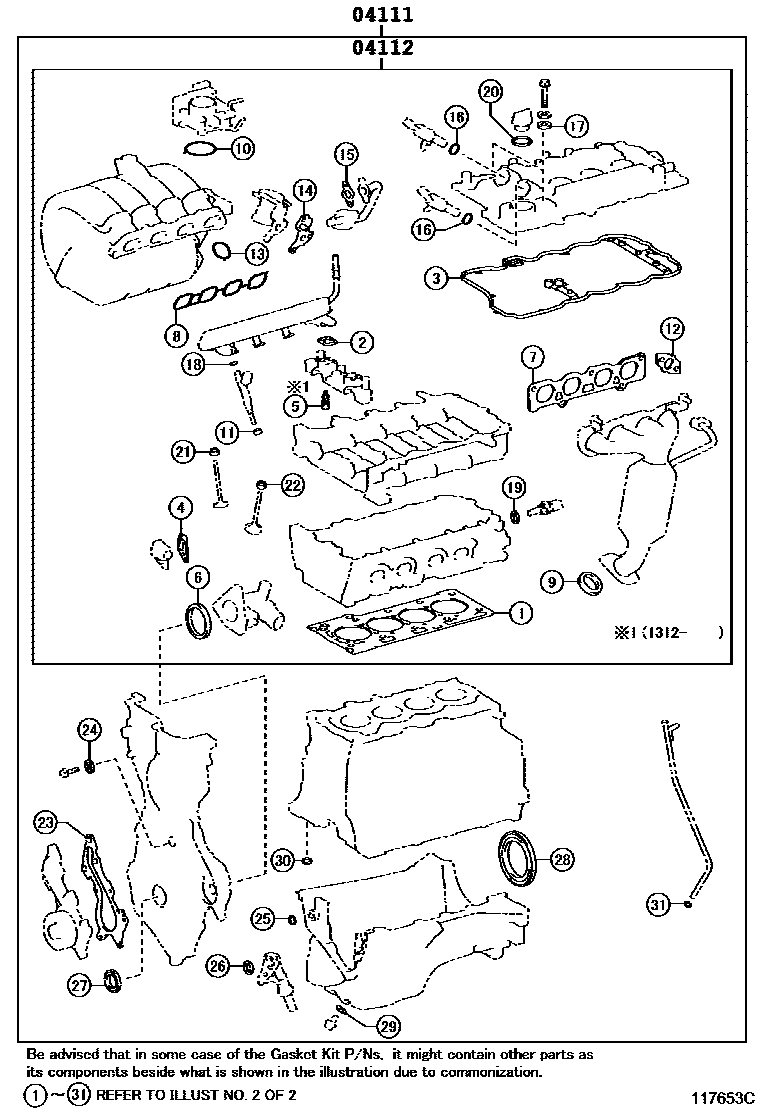

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-37096i201208-201502

main04111-37097i201502-201503

main04111-37274i201208-201502

main04111-37275i201503

main04111-37315i201604

main04111-37471i201503

main04111-47076i201208-201303

main04111-47077i201303-201312

main04111-47190i201503

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37075i201208-201502

main04112-37076i201502-201503

main04112-37223i201208-201502

main04112-37224i201503

main04112-37253i201604

main04112-37371i201503

main04112-47036i201208-201312

main04112-47130i201312-201503

2 parts on this diagram · 8 diagrams in section
