HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1MANUAL HEATER CONTROL 0002 1AUTO HEATER CONTROL 0003 1AIR DUCT 0004 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

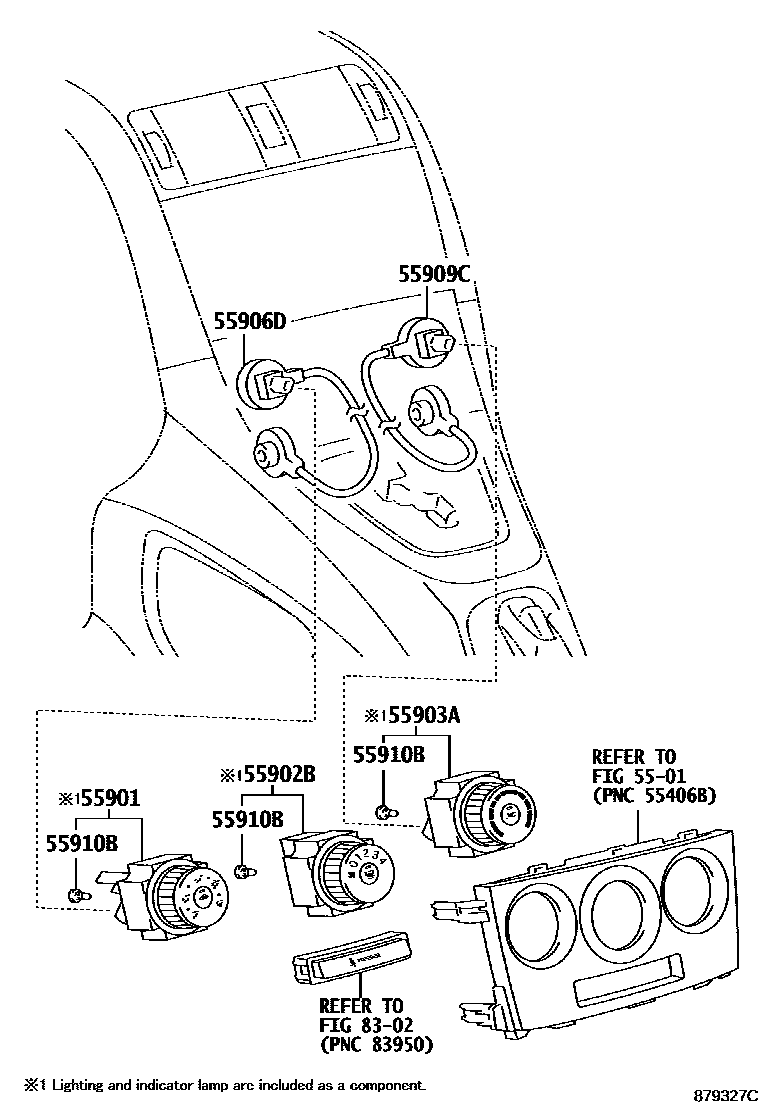

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12140iZRE152..TERRA200703-200812

55902BCONTROL SUB-ASSY, HEATER

main55902-12070iZRE152..TERRA200703-200812

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12010supersedes 55903-12030iZRE152..TERRA200812-200904

AIR CONDITIONER-MANUAL AIR CONDITIONER; AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iZRE152..TERRA200812-200910

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iZRE152..TERRA200910-201208

55910BBULB, HEATER CONTROL

main90010-01122iZRE152..TERRA200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

8302INDICATOR

→ Go to FIG 83-02

8 parts on this diagram · 4 diagrams in section
