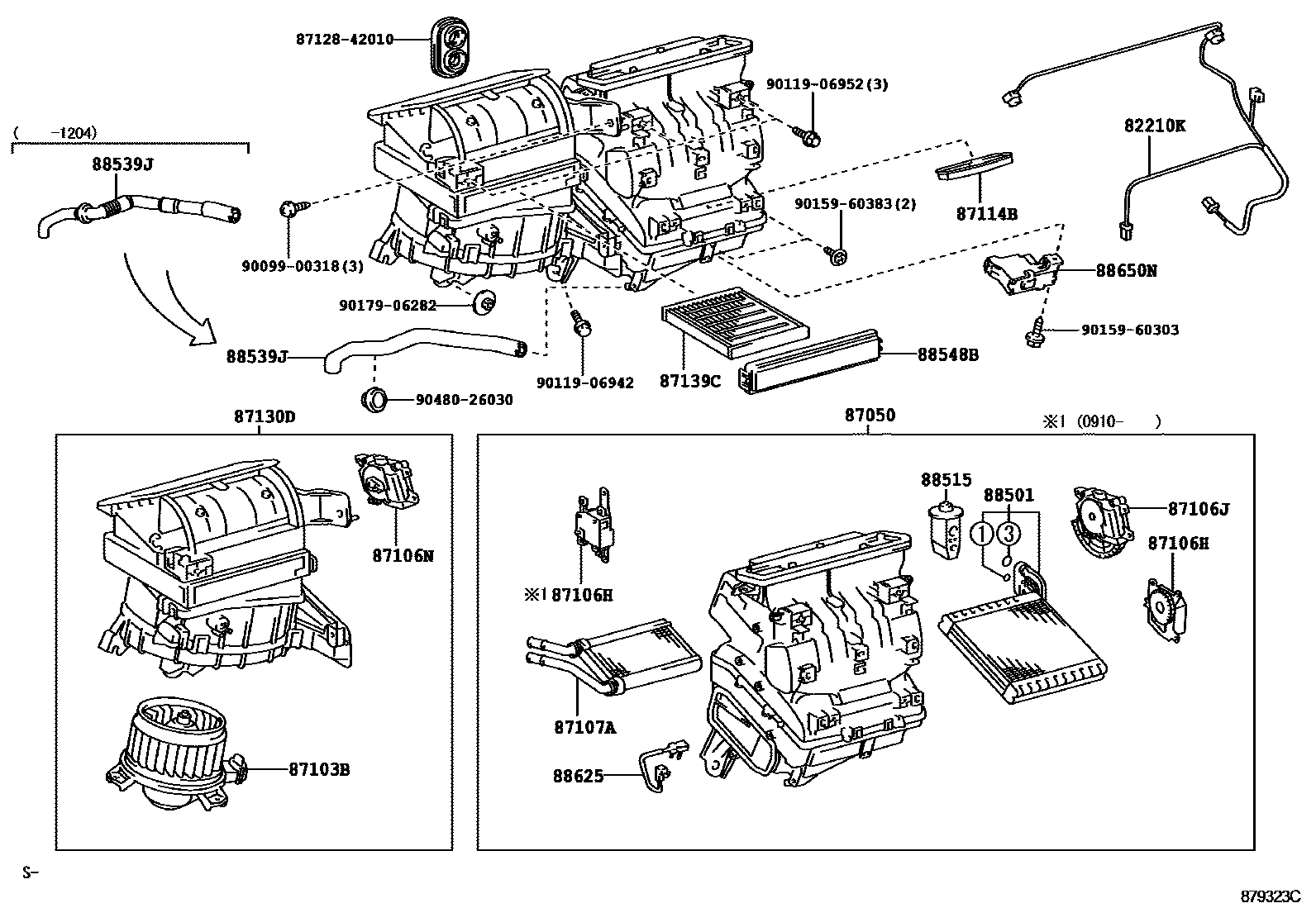

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12020supersedes 82212-12040i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12330i200910-201208

main87050-12350i200703-200812

main87050-12310supersedes 87050-12370i200812-200904

AIR CONDITIONER-MANUAL AIR CONDITIONER

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12060supersedes 87103-42081i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main87103-42070i200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170supersedes 87106-42090i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42110i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main87106-42120i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170i200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87114BCOVER, HEATER

main87114-12080i200703-200812

87130DBLOWER ASSY

main87130-12430supersedes 87130-12431i200703-200805

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12431i200812-200910

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12530supersedes 87130-12531i200703-200805

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12531i200806-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

87139CFILTER, CLEAN AIR

main87139-30040i200703-200812

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-26211i200910-201009

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main88501-72020i201010

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main88501-0K090supersedes 88501-26211i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main88501-26210supersedes 88501-72020i200703-200805

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION); AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88515VALVE, COOLER EXPANSION

main88515-12100supersedes 88515-42090i201005-201208

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main88515-26070supersedes 88515-42090i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION)

main88515-42090i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION); AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

88539JHOSE, DRAIN COOLER

main88539-12190i200812-200910

main88539-12210i201205-201208

88548BCASE, AIR FILTER

main88548-42010i200910

88625THERMISTOR, COOLER, NO.1

main88625-26090i200812-200910

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12B01i200910

main88650-12B20i200812-200910

main88650-12A80supersedes 88650-12E20i200703-200812

AIR CONDITIONER-MANUAL AIR CONDITIONER(DEALER OPTION); AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88650-12E20i200812-200904

AIR CONDITIONER-MANUAL AIR CONDITIONER

8712842010GROMMET, HEATER

main87128-42010

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

24 parts on this diagram · 4 diagrams in section
