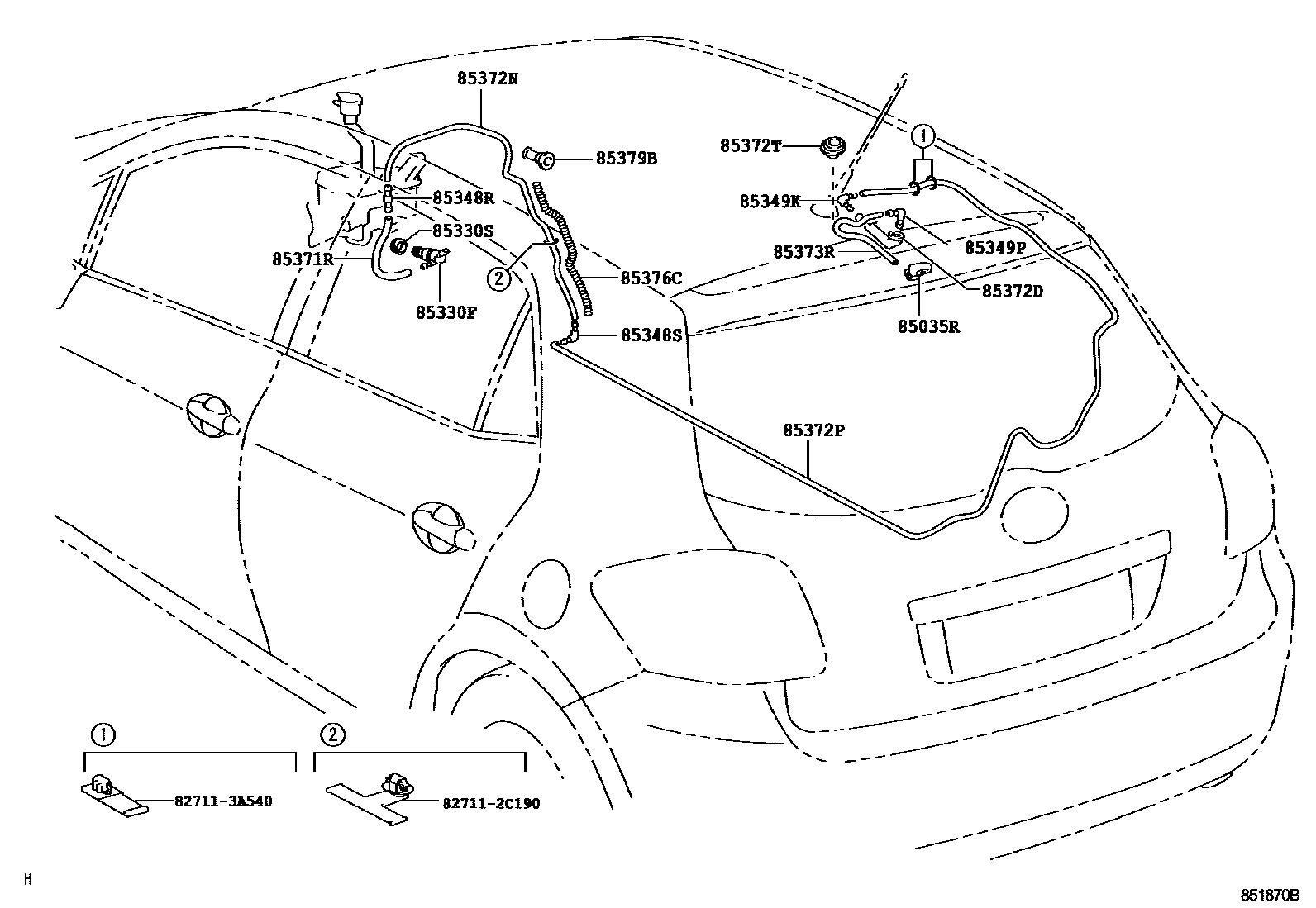

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
HEADLAMP-DISCHARGE & AFS&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH
85330SBUSH, REAR WASHER JAR
HEADLAMP-DISCHARGE & AFS&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=100)
HEADLAMP-DISCHARGE & AFS&HEADLAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEADLAMP CLEANER-WITH
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=1120)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=4985(*H,L=3450)
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=190)
85376CSPRING, WASHER HOSE
85379BGROMMET, WASHER, A
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
17 parts on this diagram · 1 diagram in section
