REAR WIPER

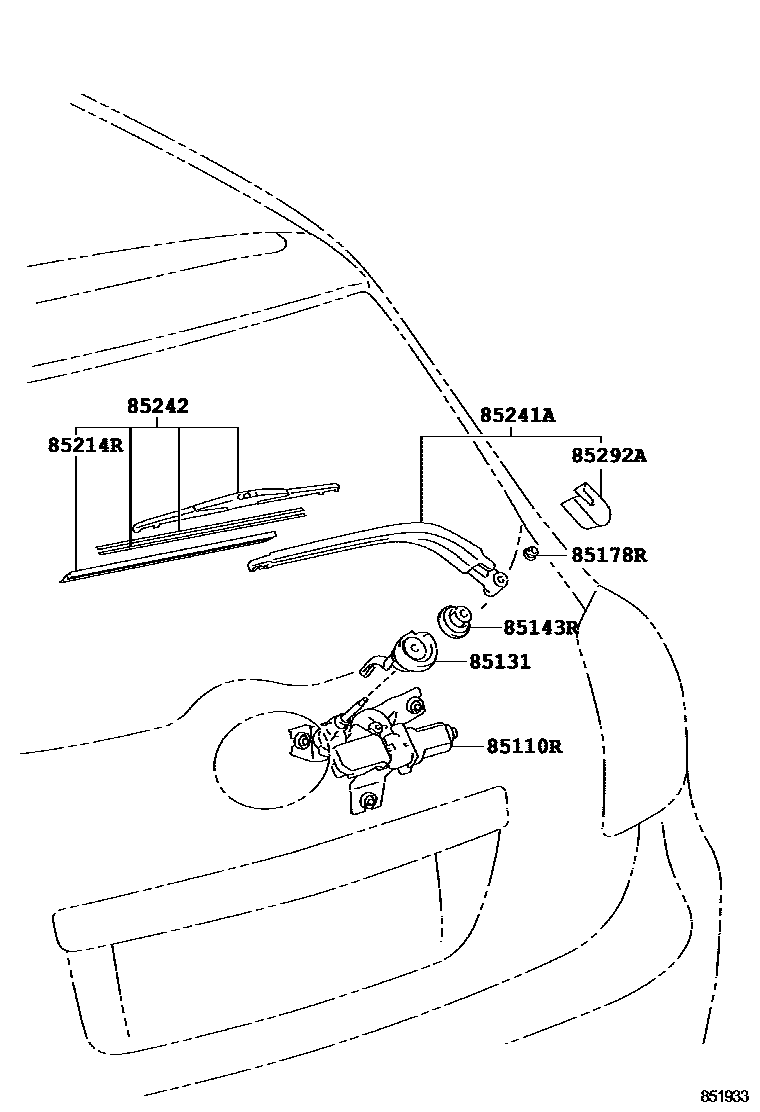

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-12880i200703-200910

85131COVER, REAR WIPER MOTOR

main85131-12800i200703-200910

85143RGROMMET, REAR WIPER MOTOR

main85143-12790i200703-200910

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i200703-200910

85214RRUBBER, REAR WIPER

main85214-12320i200703-200910

85241AARM, REAR WIPER

main85241-12100i200703-200910

85242BLADE, RR WIPER

main85242-12100i200703-200910

85292ACAP, REAR WIPER ARM HEAD

main85244-13010i200703-200910

8 parts on this diagram · 1 diagram in section
