WIRING & CLAMP

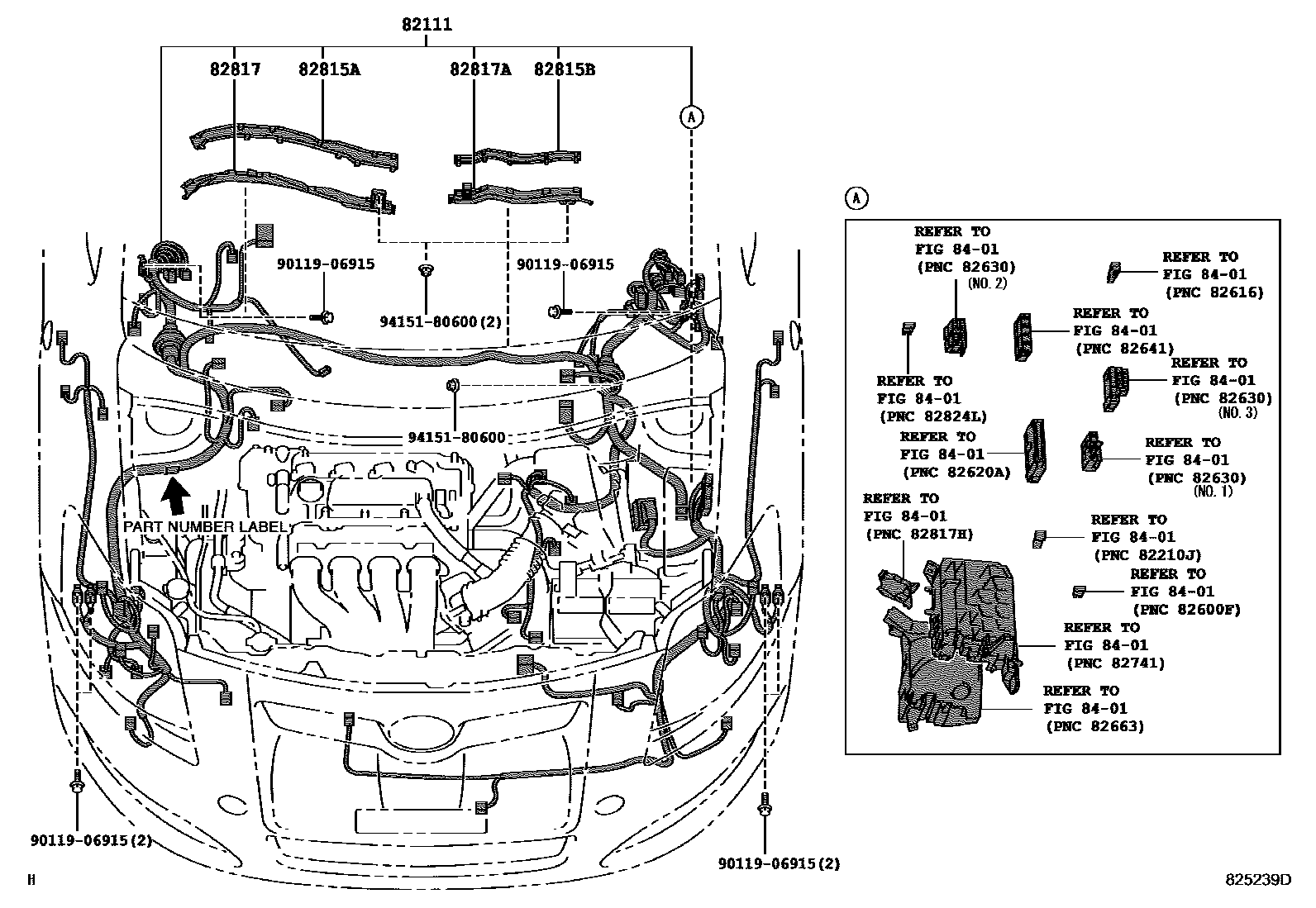

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-1EK20i201012-201101
main82111-1EK50i201012-201101
main82111-1HM80i201101
main82111-1HM90i201101
main82111-12R40supersedes 82111-1EK60i200703-200812
CRUISE CONTROL-WITH
main82111-12R50supersedes 82111-1EK70i200703-200812
CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE
main82111-12R70supersedes 82111-1EK90i200703-200812
HEADLAMP-DISCHARGE
main82111-1AR50supersedes 82111-1EK70i200703-200812
HEADLAMP-DISCHARGE
main82111-1AT90supersedes 82111-1EK70i200812-200910
HEADLAMP-DISCHARGE
main82111-1AU00supersedes 82111-1EK60i200812-200910
VSC-WITH(W/CUT OFF SWITCH)
main82111-1AU10supersedes 82111-1EK70i200812-200910
VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE
main82111-1AU30supersedes 82111-1EK90i200812-200910
HEADLAMP-DISCHARGE
main82111-1AU40supersedes 82111-1EK50i200812-200910
VSC-WITH(W/CUT OFF SWITCH)
main82111-1AU50supersedes 82111-1EK90i200812-200910
VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP-DISCHARGE
main82111-1EK30supersedes 82111-1EK70i201012-201203
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & AFS
main82111-1EK70i200910-201012
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & AFS
main82111-1EK80supersedes 82111-1EK90i200910-201012
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & AFS
main82111-1EK90i201012
HEADLAMP-DISCHARGE; HEADLAMP-DISCHARGE & AFS
82815ACOVER, WIRING HARNESS PROTECTOR
main82815-12150i200910
82815BCOVER, WIRING HARNESS PROTECTOR
main82815-12160i200703-200812
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-12B10i200703-200812
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-12B20i200703-200812
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906915
main90119-06915
9415180600
main94151-80600

8 parts on this diagram · 8 diagrams in section
