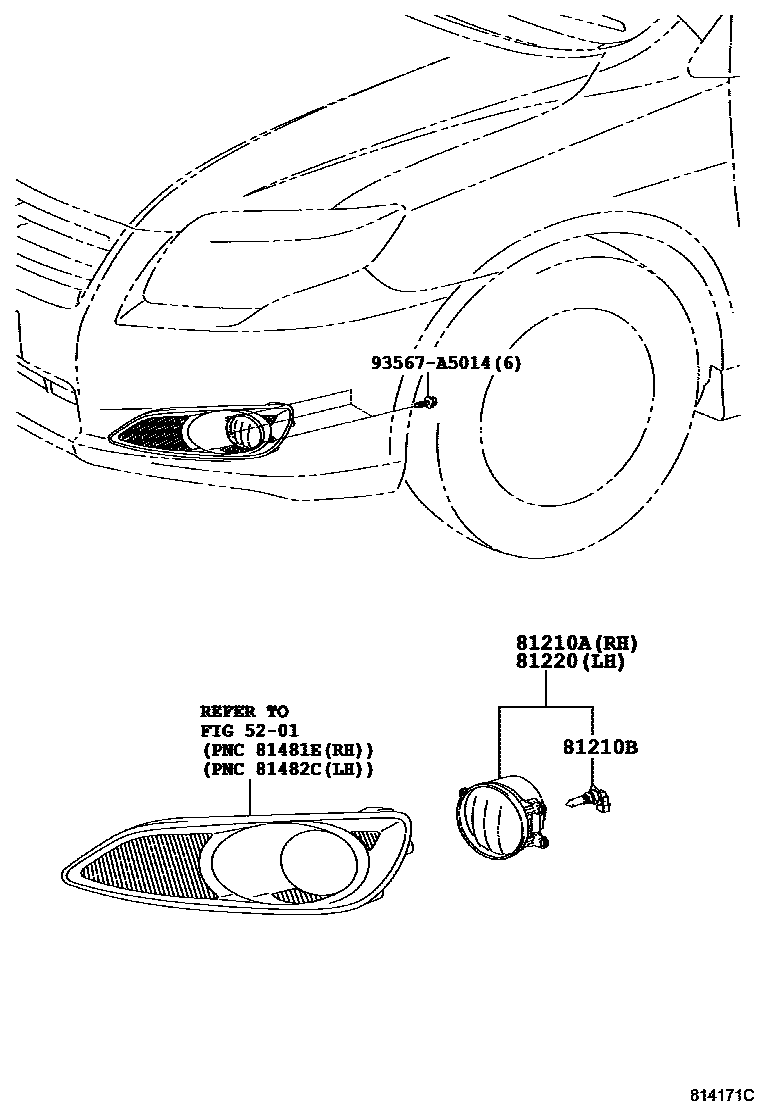

FOG LAMP

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D041iZRE152200812-200910

FRONT FOG LAMP-MOP

main81210-0W050iZRE152..TERRA200910-201208

FRONT FOG LAMP-MOP

81210BBULB, FOG LAMP

main90981-13075×2supersedes 90981-13081iZRE152..SOL200910-201102

12V 55W,HALOGEN,FRONT FOG LAMP-MOP,PHILIPS

main90981-13081×2iZRE152..SOL200910-201102

12V 55W,HALOGEN,FRONT FOG LAMP-MOP,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D041iZRE152200703-200812

FRONT FOG LAMP-MOP

main81220-0W040iZRE152..SOL200910-201102

FRONT FOG LAMP-MOP

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
