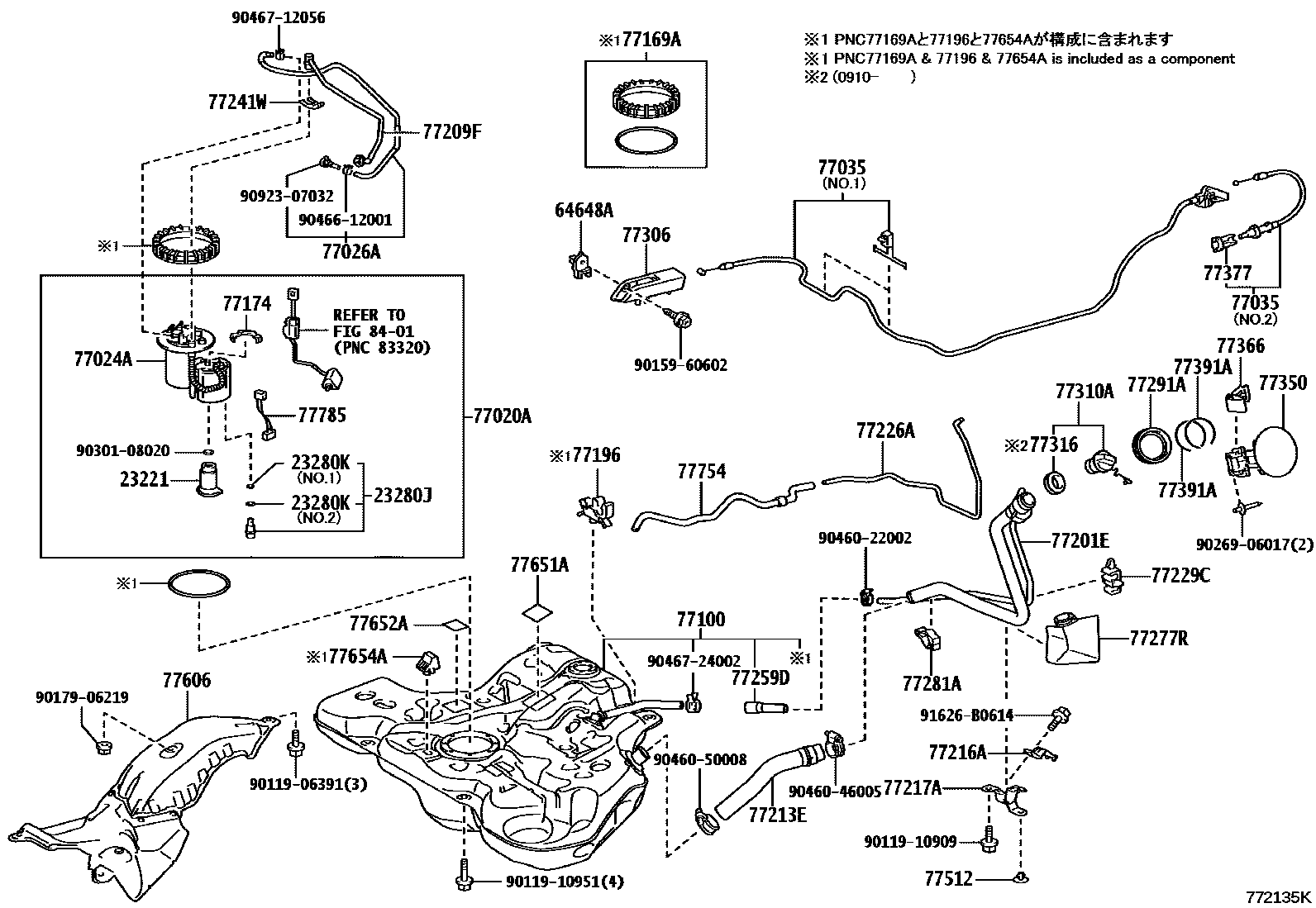

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23221PUMP, FUEL

main23220-37060i2ZRFE..ZRE152200703-200708

main23220-37120i2ZRFE..ZRE152200709-200812

main23220-37121i2ZRFE..ZRE152201204-201208

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFE..ZRE152200703-200812

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFE..ZRE152200703-200812

NO.1

main90301-15024i2ZRFE..ZRE152200812-200910

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iZRE152200910

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-12580iZRE152200703-200812

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12050iZRE152200703-200812

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-12030iZRE152200812-200910

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12430iZRE152200703-200812

NO.1

main77035-12490iZRE152200703-200812

NO.2

77100TANK ASSY, FUEL

main77001-12B60iZRE152200703-200812

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iZRE152200703-200812

77174SUPPORT, FUEL SUCTION, NO.1

main77174-12020iZRE152200812-200910

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iZRE152200703-200812

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12640iZRE152200703-200812

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12210iZRE152200703-200812

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12270iZRE152200703-200812

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iZRE152200812-200910

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iZRE152200812-200910

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-12030iZRE152200703-200812

77229CCLAMP, BREATHER TUBE

main77229-12070iZRE152200812-200910

77241WCLIP, TUBE JOINT

main77241-33011iZRE152201003-201208

main77241-60320iZRE152200703-200812

77259DHOSE, FUEL, NO.1

main77259-76010iZRE152200703-200812

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZRE152200703-200812

77281ACLAMP, FUEL FILLER PIPE

main77281-12100iZRE152200703-200812

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12190iZRE152200703-200812

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iZRE152200703-200812

main77306-52050iZRE152201010

77310ACAP ASSY, FUEL TANK

main77300-52030iZRE152200703-200812

77316GASKET, FUEL TANK CAP

main77316-52040iZRE152200910

77350LID ASSY, FUEL FILLER OPENING

main77350-12480iZRE152200703-200812

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iZRE152200703-200812

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iZRE152200703-200812

77391ARING, FUEL INLET BOX

main77391-12020×2iZRE152200703-200812

77512BRACKET, FUEL TANK, REAR

main77512-35140iZRE152200703-200812

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12130iZRE152200703-200812

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZRE152200703-200812

77652ACUSHION, FUEL TANK, NO.2

main77652-45020×3iZRE152200703-200812

77654ACUSHION, FUEL TANK, NO.4

main77654-12090iZRE152200703-200812

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-12160iZRE152200703-200812

77785HARNESS, FUEL PUMP

main77785-12020iZRE152200703-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906391

main90119-06391

9011910909

main90119-10909

9011910951

main90119-10951

9015960602

main90159-60602

9017906219

main90179-06219

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046612001

main90466-12001

9046712056

main90467-12056

9046724002

main90467-24002

9092307032

main90923-07032

91626B0614

main91626-B0614

54 parts on this diagram · 2 diagrams in section
