REAR SEAT & SEAT TRACK

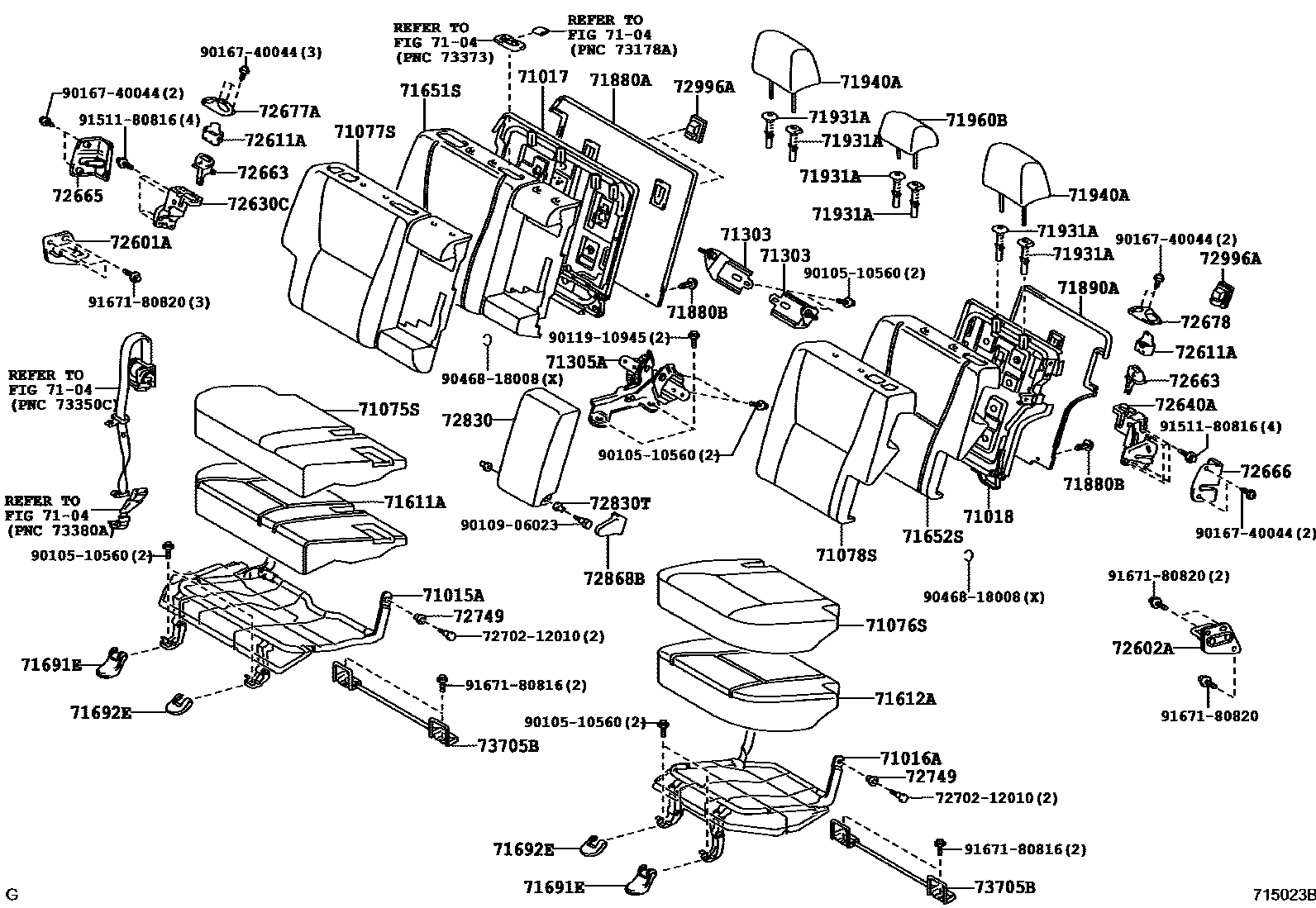

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-12420i200703-200812
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-12010i200812-200910
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-12740i200812-200910
main71017-12750supersedes 71017-12740i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-12350i200812-200910
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-12C60-E2i200703-200812
GREGE,TRIM4#
main71075-12J30-E1i200910-201208
GREGE,TRIM4#
main71075-12F50-B0supersedes 71075-12J20-B1i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DARK GRAY,TRIM1#; FRONT SEAT-SPORT,DARK GRAY,TRIM1#
main71075-12K90-B1supersedes 71075-12C60-B3i200910-201012
S PACKAGE&REAR ARMREST-WITH,DARK GRAY,TRIM1#
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-12230-E2i200703-200812
GREGE,TRIM4#
main71076-12360-E1i200910-201203
GREGE,TRIM4#
main71076-12420-B1supersedes 71076-12230-B4i200910-201106
S PACKAGE,DARK GRAY,TRIM1#
main71076-12430-B0i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DARK GRAY,TRIM1#; FRONT SEAT-SPORT,DARK GRAY,TRIM1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-12M20-E1i201012-201203
GREGE,TRIM4#
main71077-12E90-B5supersedes 71077-12M40-B2i200703-200812
REAR ARMREST-WITH,DK.GRAY,TRIM1#
main71077-12E90-E3supersedes 71077-12M40-E1i200703-200812
REAR ARMREST-WITH,GREGE,TRIM4#
main71077-12L00-B0supersedes 71077-12M10-B1i201203-201208
DARK GRAY,TRIM1#; FRONT SEAT-SPORT,DARK GRAY,TRIM1#
main71077-12M20-B2supersedes 71077-12M40-B2i200910-201012
REAR ARMREST-WITH,DARK GRAY,TRIM1#
main71077-12M30-B2supersedes 71077-12M40-B2i200910-201012
S PACKAGE&REAR ARMREST-WITH,DARK GRAY,TRIM1#
main71077-12P00-B1supersedes 71077-12M40-B2i200910-201012
S PACKAGE,DARK GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-12D80-E3i200703-200812
GREGE,TRIM4#
main71078-12K90-E1i200910-201208
GREGE,TRIM4#
main71078-12J00-B0supersedes 71078-12K90-B2i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DARK GRAY,TRIM1#; FRONT SEAT-SPORT,DARK GRAY,TRIM1#
main71078-12L00-B2supersedes 71078-12D80-B6i200910-201106
S PACKAGE,DARK GRAY,TRIM1#
71303HINGE SUB-ASSY, REAR SEATBACK
main71303-12161×2i200703-200812
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-12190i200812-200910
71611APAD, REAR SEAT CUSHION, RH
main71611-12670i200703-200812
71612APAD, REAR SEAT CUSHION, LH
main71612-12380i200703-200812
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-12840i200703-200812
main71651-12850i200910-201012
REAR ARMREST-WITH; S PACKAGE&REAR ARMREST-WITH
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-12720i200910-201208
71691ECOVER, REAR SEAT CUSHION HINGE, NO.1
main71691-12010-B0×2i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71691-12010-E1×2i200703-200812
GREGE,TRIM4#
71692ECOVER, REAR SEAT CUSHION HINGE, NO.2
main71692-12030-B0×2i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71692-12030-E1×2i200812-200910
GREGE,TRIM4#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71885-12210-C0i200703-200812
BLACK,TRIM1#; BLACK,TRIM1#,4#
71880BCLIP(FOR REAR SEATBACK CARPET)
main90467-05161-B0×4i200812-200910
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
71890ACARPET ASSY, REAR SEATBACK BOARD, LH
main71886-12090-C0i200703-200812
BLACK,TRIM1#; BLACK,TRIM1#,4#
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-B0×3i200910-201208
W(LOCK),DK.GRAY,TRIM1#
main71930-44020-E0×3i200910-201208
W(LOCK),GREGE,TRIM4#
main71930-47010-B2×3i200703-200812
W(LOCK),DK.GRAY,TRIM1#; W(LOCK),DK.GRAY,TRIM17
main71930-47010-E3×3i200812-200910
W(LOCK),GREGE,TRIM4#
main71931-47010-B2×3i200703-200812
W/O(LOCK),DK.GRAY,TRIM1#; W/O(LOCK),DK.GRAY,TRIM17
main71931-47010-E4×3i200910-201203
W/O(LOCK),GREGE,TRIM4#
71940AHEADREST ASSY, REAR SEAT
main71940-12770-B2×2i200812-200910
DARK GRAY,TRIM1#
main71940-12770-E1×2i200703-200812
GREGE,TRIM4#
main71940-12C30-B0×2i200910-201208
DARK GRAY,TRIM1#
main71940-12C30-E0×2i200910-201208
GREGE,TRIM4#
main71940-12C70-B0×2i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-12360-B2i200703-200812
DARK GRAY,TRIM1#
main71960-12360-E1i200703-200812
GREGE,TRIM4#
main71960-12700-B0i200910-201208
DARK GRAY,TRIM1#
main71960-12700-E0i200910-201208
GREGE,TRIM4#
main71960-12740-B0i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH
main72601-12200i200812-200910
72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH
main72602-12060i200703-200812
72611ABASE, REAR SEAT LOCK
main72631-12100i200703-200812
RH
main72632-12090i200812-200910
LH
72630CLOCK ASSY, REAR SEATBACK, RH
main72603-12040i200910-201208
main72630-12320i200703-200704
72640ALOCK ASSY, REAR SEATBACK, LH
main72604-12060i200704-200812
main72640-12290i200703-200704
72663LEVER, REAR SEAT LOCK CONTROL, NO.1
main72663-12021-B0i200812-200910
DK.GRAY,TRIM1#,RH
main72663-12021-E0i200910-201208
GREGE,TRIM4#,RH
main72664-12021-B0i200910-201208
DK.GRAY,TRIM1#,LH
main72664-12021-E0i200910-201203
GREGE,TRIM4#,LH
72665COVER, REAR SEATBACK LOCK, RH
main72665-12030-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
72666COVER, REAR SEATBACK LOCK, LH
main72666-12020-B0i200910-201208
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
72677ABASE, REAR SEATBACK LOCK CONTROL LEVER, RH
main72677-12010-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main72677-12010-E0i200910-201208
GREGE,TRIM4#
72678BASE, REAR SEATBACK LOCK CONTROL LEVER, LH
main72678-12010-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main72678-12010-E0i200910-201208
GREGE,TRIM4#
72749SPACER, REAR SEAT RECLINING
main72749-12010×4i200910-201208
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-12570-E0i201012-201203
GREGE,TRIM4#
main72830-12440-B5i200812-200910
REAR ARMREST-WITH,DK.GRAY,TRIM1#
main72830-12440-E4i200812-200910
REAR ARMREST-WITH,GREGE,TRIM4#
main72830-12570-B0i200910-201012
REAR ARMREST-WITH,DK.GRAY,TRIM1#; S PACKAGE&REAR ARMREST-WITH,DK.GRAY,TRIM1#
main72830-12770-B1i201203-201208
DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
72830TBUSH (FOR REAR SEAT CENTER ARMREST)
main90386-08077i200910-201012
REAR ARMREST-WITH; S PACKAGE&REAR ARMREST-WITH
72868BCOVER, CENTER ARMREST HINGE
main72868-12020-E0i201012-201203
GREGE,TRIM4#
main72868-12020-B0i200703-200812
REAR ARMREST-WITH,DK.GRAY,TRIM17
72996ACOVER, REAR SEATBACK
main72996-12320-B0×3i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-12060×2i200703-200812
7270212010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-12010
9010510560
main90105-10560
9010906023
main90109-06023
9011910945
main90119-10945
9016740044
main90167-40044
9046818008
main90468-18008
9151180816
main91511-80816
9167180816
main91671-80816
9167180820
main91671-80820

48 parts on this diagram · 2 diagrams in section
