FRONT SEAT & SEAT TRACK

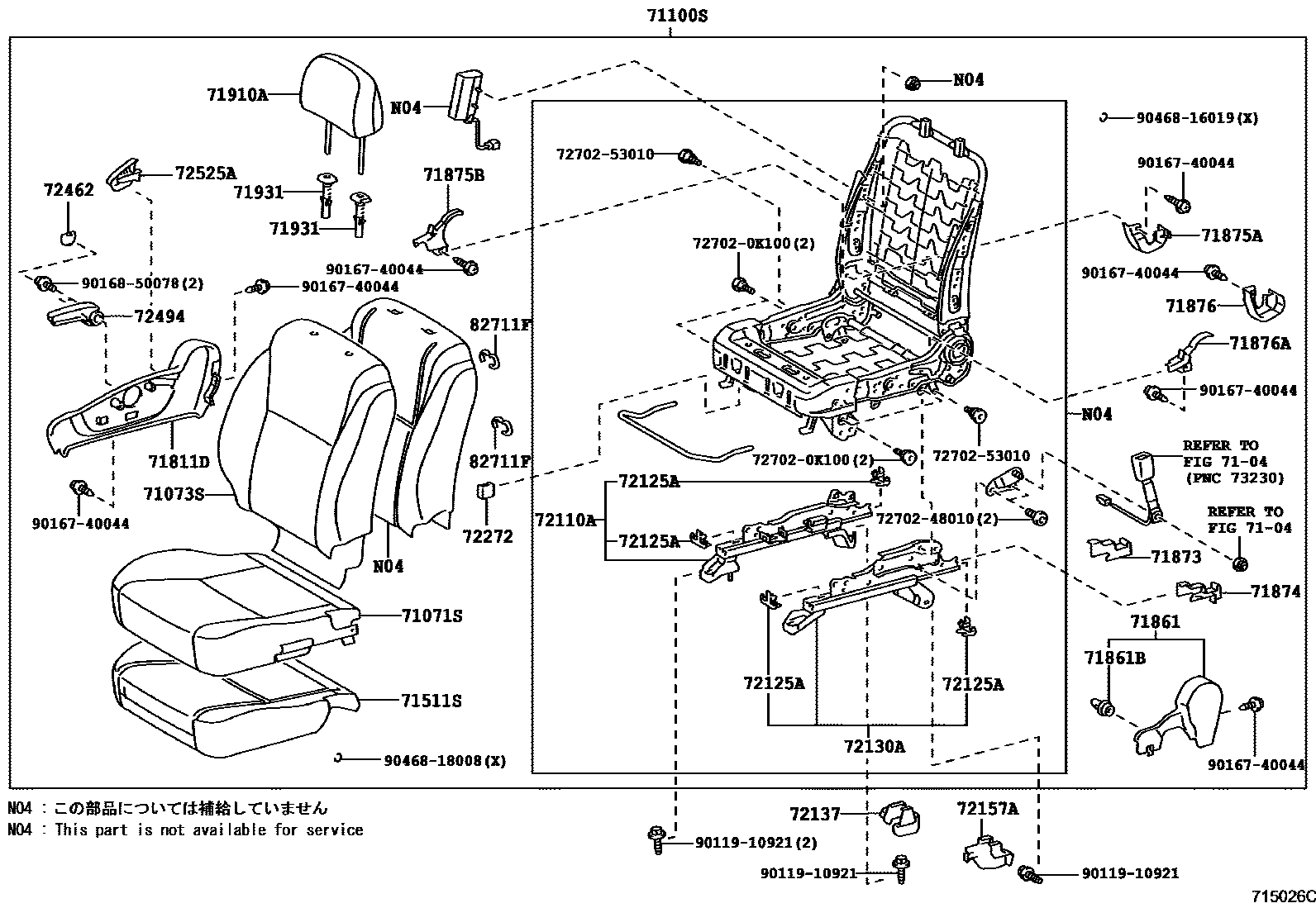

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-12C00-E3i200703-200812
GREGE,TRIM4#
main71071-12R90-E1i200910-201208
GREGE,TRIM4#
main71071-12E20-B3supersedes 71071-12R80-B1i200703-200812
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(SIDE) & KNEE BOLSTER,DK.GRAY,TRIM1#
main71071-12Q30-B0supersedes 71071-12R90-B2i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DARK GRAY,TRIM1#; FRONT SEAT-SPORT,DARK GRAY,TRIM1#
main71071-12U40-B1supersedes 71071-12C00-B5i200910-201012
S PACKAGE&REAR ARMREST-WITH,DARK GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-12D80-E2i200812-200910
GREGE,TRIM4#
main71073-12S90-E1i200910-201203
GREGE,TRIM4#
main71073-12E40-B3supersedes 71073-12T10-B1i200812-200910
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(SIDE) & KNEE BOLSTER,DK.GRAY,TRIM1#
main71073-12Q40-B0supersedes 71073-12T10-B1i201203-201208
DARK GRAY,TRIM1#; FRONT SEAT-SPORT,DARK GRAY,TRIM1#
main71073-12V40-B1supersedes 71073-12D80-B5i200910-201012
S PACKAGE&REAR ARMREST-WITH,DARK GRAY,TRIM1#
71100SSEAT ASSY, FRONT RH
main71100-12K60-E6i200703-200812
GREGE,TRIM4#
main71100-12Z00-E1i200910-201203
GREGE,TRIM4#
main71100-12K70-B4supersedes 71100-12Y90-B2i200703-200812
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(SIDE) & KNEE BOLSTER,DK.GRAY,TRIM1#
main71100-1AB50-B2supersedes 71100-12K60-B6i200910-201012
S PACKAGE&REAR ARMREST-WITH,DK.GRAY,TRIM1#
main71100-1AN20-B0i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12B00i200703-200812
main71511-12C00i201106-201203
FRONT SEAT-SPORT; FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-42090-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71811-42090-E1i200910-201208
GREGE,TRIM4#
main71811-12430-B0supersedes 71811-42090-B0i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-12280-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71861-12280-E0i200910-201208
GREGE,TRIM4#
main71861-60140-B1supersedes 71861-12280-B0i201203-201208
DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
71861BCLIP(FOR FRONT SEAT SHIELD, RH)
main71769-33020i200910-201208
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-42030×2i200812-200910
main71873-47040i201203-201208
FRONT SEAT-SPORT
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-42020×2i200703-200812
main71874-47040i201106-201208
FRONT SEAT-SPORT
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52170-B0×2i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71875-52170-E0×2i200812-200910
GREGE,TRIM4#
main71875-47030-B1supersedes 71875-52170-B0i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-60160-B3×2i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71875-60160-E2×2i200910-201208
GREGE,TRIM4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-52160-B0×2i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71876-52160-E0×2i200703-200812
GREGE,TRIM4#
main71876-47030-B1supersedes 71876-52160-B0i201203-201208
DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-60160-B3×2i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main71876-60160-E1×2i200910-201203
GREGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-12B30-B3×2i200812-200910
DARK GRAY,TRIM1#
main71910-12B30-E2×2i200703-200812
GREGE,TRIM4#
main71910-12F40-B0×2i200910-201208
DARK GRAY,TRIM1#
main71910-12F40-E0×2i200910-201208
GREGE,TRIM4#
main71910-12F70-E0×2i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),ORANGE,TRIM1#; FRONT SEAT-SPORT,ORANGE,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B0×2i200805-200812
W(LOCK),DK.GRAY,TRIM1#
main71930-44020-E0×2i200812-200910
W(LOCK),GREGE,TRIM4#
main71930-47010-B2×2i200703-200804
W(LOCK),DK.GRAY,TRIM1#; W(LOCK),DK.GRAY,TRIM17
main71930-47010-E3×2i200703-200804
W(LOCK),GREGE,TRIM4#
main71931-47010-B2×2i200910-201208
W/O(LOCK),DK.GRAY,TRIM1#
main71931-47010-E4×2i200703-200812
W/O(LOCK),GREGE,TRIM4#
main71930-47020-B2×2supersedes 71931-47010-B2i201203-201208
W(LOCK),DK.GRAY,TRIM1#; W(LOCK),FRONT SEAT-SPORT,DK.GRAY,TRIM1#
main71931-47020-B2×2i201106-201203
W/O(LOCK),FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; W/O(LOCK),FRONT SEAT-SPORT,DK.GRAY,TRIM1#
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-12170i200703-200812
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-13040×8i200703-200812
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-12760i200703-200812
72137COVER, SEAT TRACK, OUTER RH
main72137-12150-B0i200910-201203
DK.GRAY,TRIM1#,4#
main72137-47040-B1i201104-201208
FRONT SEAT-SPORT,DK.GRAY,TRIM1#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-12120-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
main72157-12190-B0i201104-201203
FRONT SEAT-SPORT,DK.GRAY,TRIM1#
72272CLAMP, SEAT TRACK CONTROL CABLE
main72272-12020×2i200910-201208
72462COVER, VERTICAL ADJUSTER RH
main72462-42010-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main72462-42010-E1i200703-200812
GREGE,TRIM4#
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-42010-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main72494-42010-E1i200910-201203
GREGE,TRIM4#
main72494-47010-B1supersedes 72494-42010-B0i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-42020-B0i200703-200812
DK.GRAY,TRIM1#; DK.GRAY,TRIM17
main72525-42020-E1i200910-201208
GREGE,TRIM4#
main72525-47010-B1i201106-201203
FRONT SEAT-SPORT&SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE),DK.GRAY,TRIM1#; FRONT SEAT-SPORT,DK.GRAY,TRIM1#
82711FCLAMP, WIRING HARNESS
main82711-12120×4i200703-200812
SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE); SRS AIR BAG-WITH(SIDE) & KNEE BOLSTER
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-48010
7270253010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-53010
9011910921
main90119-10921
9016740044
main90167-40044
9016850078
main90168-50078
9046816019
main90468-16019
9046818008
main90468-18008

34 parts on this diagram · 6 diagrams in section
