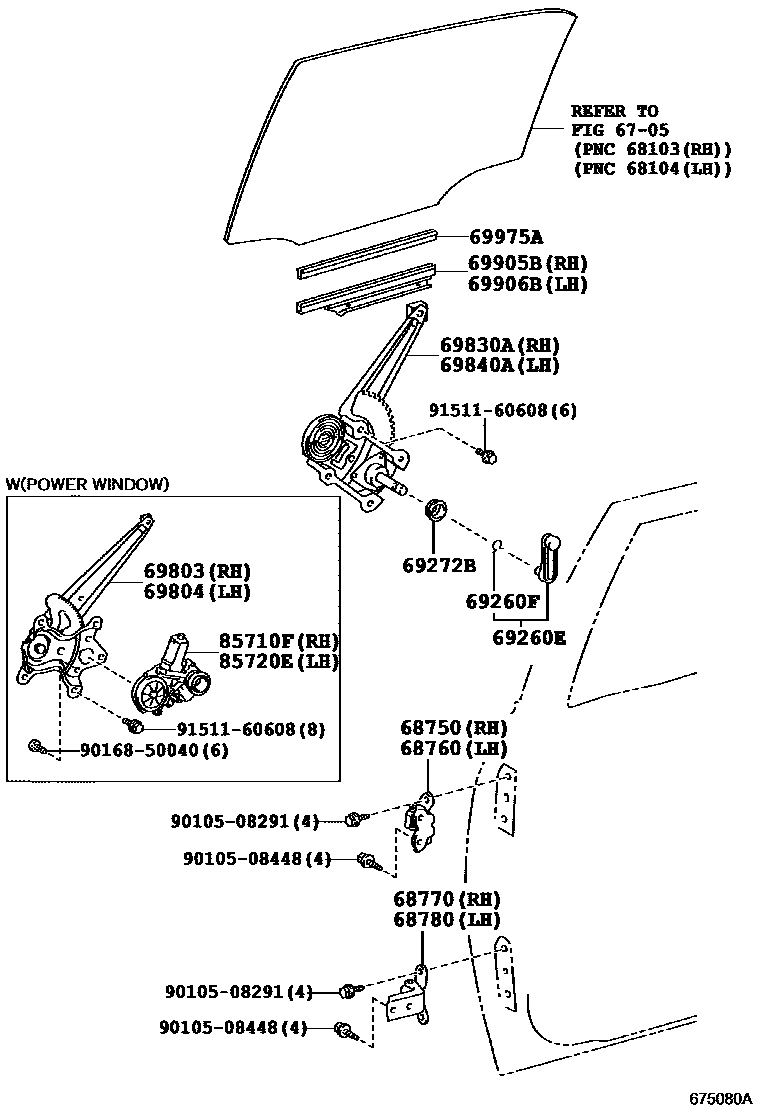

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iZRE152200703-200812

main68750-20122iZRE152201206-201208

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iZRE152200703-200812

main68760-20122iZRE152201206-201208

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZRE152200703-200812

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZRE152200703-200812

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52070-B0×2iZRE152..TERRA200703-200812

DK.GRAY,TRIM1#; POWER WINDOW-WITH(FRONT & REAR),DK.GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iZRE152..TERRA200703-200812

POWER WINDOW-WITH(FRONT & REAR)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-12020×2iZRE152..TERRA200703-200812

POWER WINDOW-WITH(FRONT & REAR)

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12180iZRE152..SOL; ZRE152..TERRA200703-200812

POWER WINDOW-WITH(FRONT & REAR)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12180iZRE152..SOL; ZRE152..TERRA200703-200812

POWER WINDOW-WITH(FRONT & REAR)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-12420iZRE152..TERRA200703-200812

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-12420iZRE152..TERRA200703-200812

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12190iZRE152200703-200812

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12180iZRE152200703-200812

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iZRE152200703-200812

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iZRE152..SOL; ZRE152..TERRA200703-200812

POWER WINDOW-WITH(FRONT & REAR)

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iZRE152..SOL; ZRE152..TERRA200703-200812

POWER WINDOW-WITH(FRONT & REAR)

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

9151160608

main91511-60608

21 parts on this diagram · 1 diagram in section
