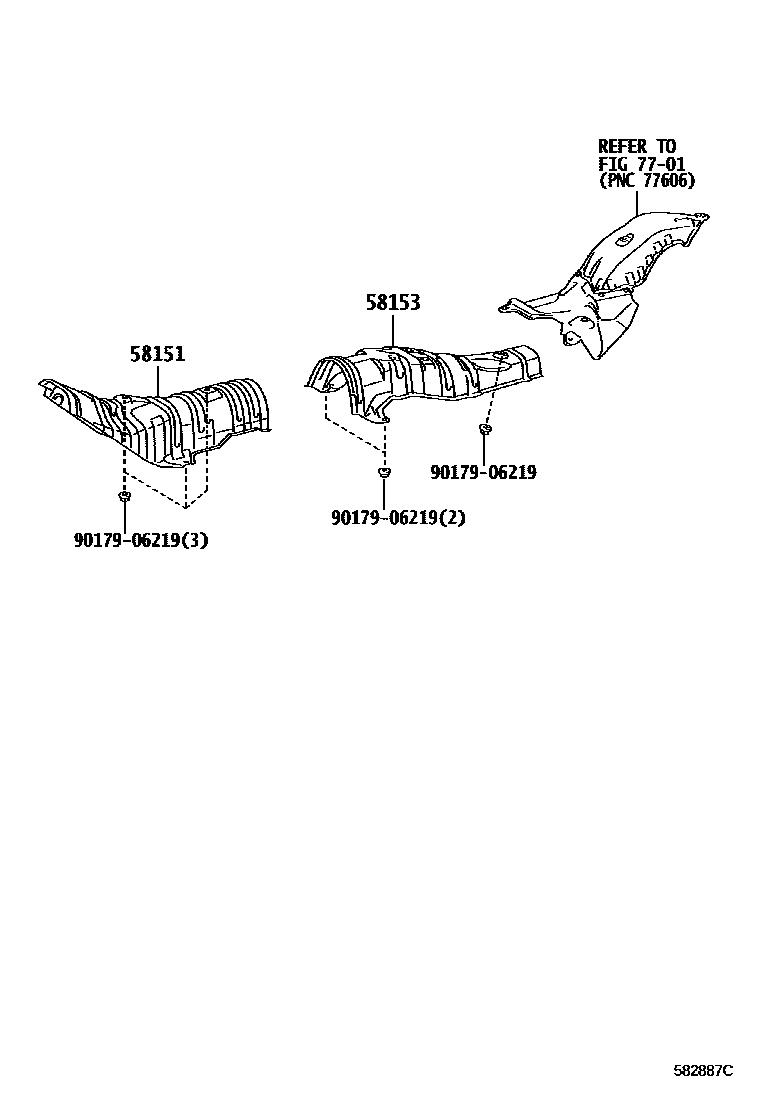

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12240iZRE152200703-200801

main58151-12241iZRE152200802-200812

main58151-12310iZRE152200812-200910

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12180iZRE152200703-200804

main58153-12181iZRE152200805-200812

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9017906219

main90179-06219

4 parts on this diagram · 1 diagram in section
