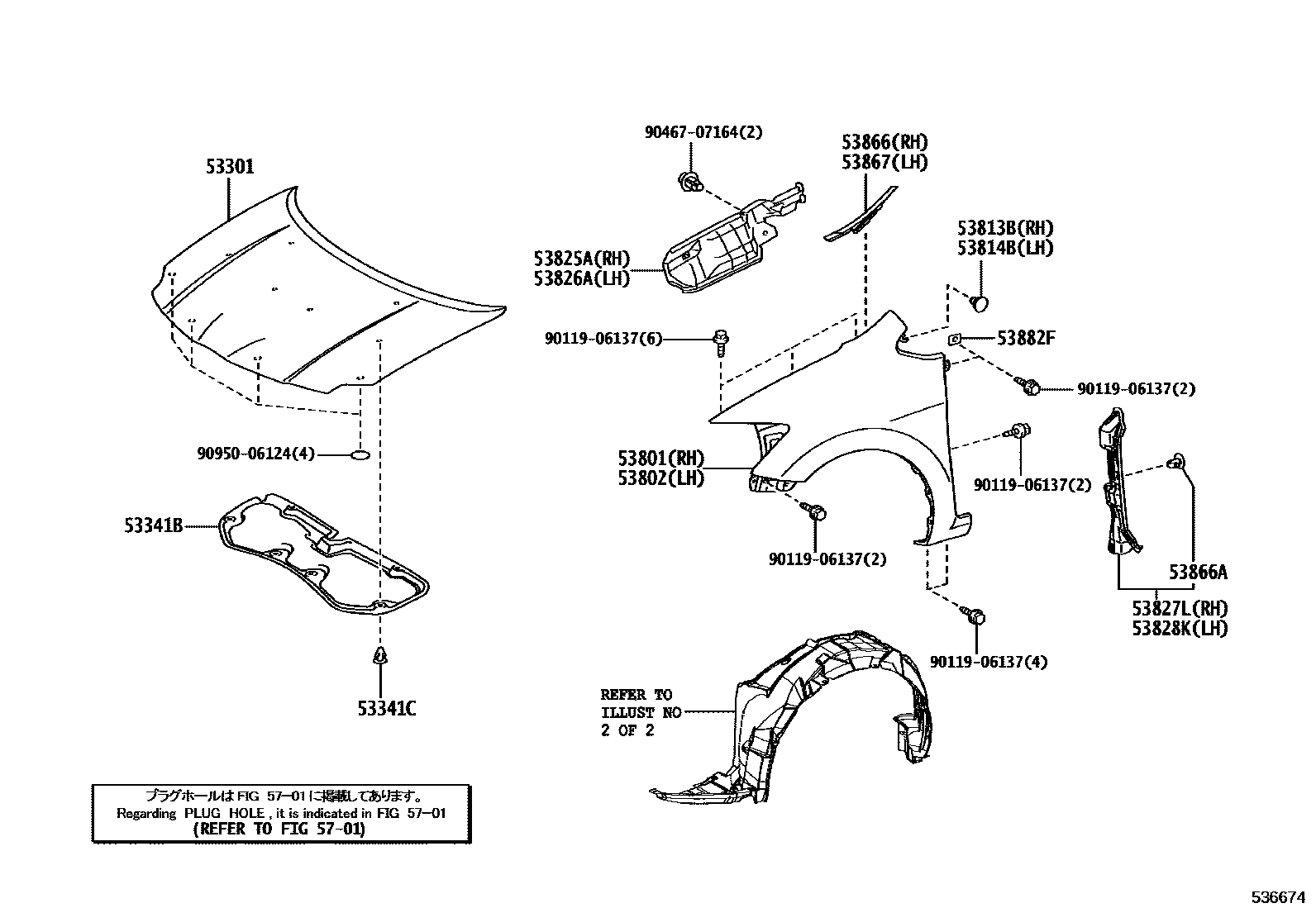

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12A10iZRE152200812-200910

main53301-12B00iZRE152200910-201208

53341BINSULATOR, HOOD

main53341-12240iZRE152200812-200910

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iZRE152200703-200812

(L)

main90467-W0003×6iZRE152200812-200910

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-12A10iZRE152..SOL; ZRE152..TERRA200703-200812

REAR SPOILER-WITH(LARGE TYPE)

main53801-12A90supersedes 53801-12A80iZRE152..SOL200910-201208

53802FENDER SUB-ASSY, FRONT LH

main53802-12A10iZRE152..SOL; ZRE152..TERRA200703-200812

REAR SPOILER-WITH(LARGE TYPE)

main53802-12A90supersedes 53802-12A80iZRE152..SOL200910-201208

53813BEXTENSION, FRONT FENDER, RH

main53813-52020iZRE152200703-200812

53814BEXTENSION, FRONT FENDER, LH

main53813-52020iZRE152200812-200910

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12040iZRE152200703-200812

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12020iZRE152200910

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12070iZRE152200703-200812

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12070iZRE152200812-200910

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-12030iZRE152200812-200910

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-06205-C0×2iZRE152200807-200812

BLACK

main90467-08136×2iZRE152200703-200806

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-12040iZRE152200812-200910

53882FSEAL, FRONT FENDER

main53882-16030×2iZRE152200703-200812

5701HOLE PLUG

→ Go to FIG 57-01

9011906137

main90119-06137

9046707164

main90467-07164

9095006124

main90950-06124

19 parts on this diagram · 4 diagrams in section
