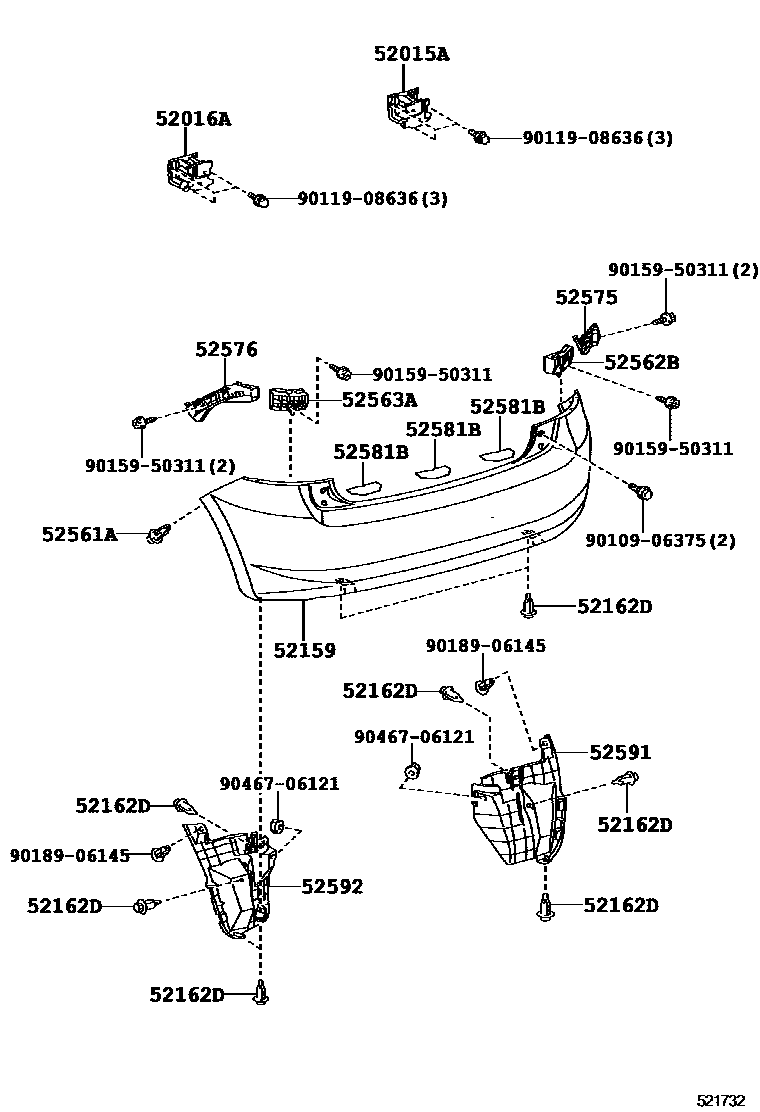

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12330iZRE152200812-200910

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12300iZRE152200703-200812

52159COVER, REAR BUMPER

main52159-12933iZRE152200703-200812

PAINT REQ.

main52159-12939iZRE152200910-201208

PAINT REQ.

52162DPIECE, REAR BUMPER

main52161-16010×8iZRE152200703-200812

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05090-B1×2iZRE152200703-200812

DK.GRAY

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-12110iZRE152200910

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-12030iZRE152200812-200910

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12150iZRE152200703-200812

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12150iZRE152200703-200812

52581BPROTECTOR, REAR BUMPER

main52581-12140×3iZRE152201201

main52581-13030×3iZRE152200703-200812

52591SEAL, REAR BUMPER SIDE, RH

main52591-12180iZRE152200703-200812

main52591-12250iZRE152200910

52592SEAL, REAR BUMPER SIDE, LH

main52592-12100iZRE152200703-200812

main52592-12170iZRE152200910

9010906375

main90109-06375

9011908636

main90119-08636

9015950311

main90159-50311

9018906145

main90189-06145

9046706121

main90467-06121

17 parts on this diagram · 2 diagrams in section
