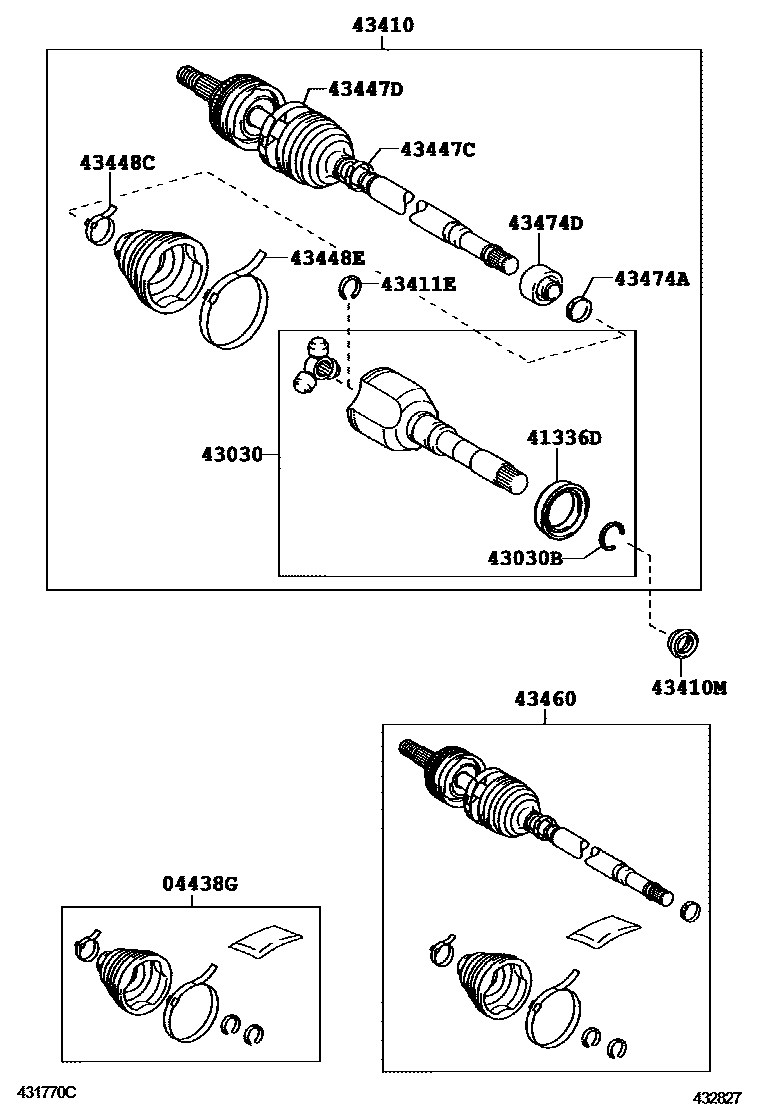

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02280iZRE152200703-200910

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05140iZRE152200703-200910

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-05110iZRE152200703-200910

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52055iZRE152200703-200910

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02580iZRE152200703-201111

main43410-02581iZRE152201111-201208

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35055iZRE152..4FC200703-201208

main90311-35057iZRE152..6F200703-200812

main90311-35062iZRE152..6F200812-201011

*201,*206

main90311-35065iZRE152..6F201011-201208

*201,*206

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52093iZRE152200703-200910

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05140iZRE152200703-200910

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02220iZRE152200703-200910

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iZRE152200703-200910

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05030iZRE152200703-200910

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R30iZRE152200703-201110

main43460-09R31iZRE152201111

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02230iZRE152200703-200910

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02150iZRE152200703-200910

14 parts on this diagram · 3 diagrams in section
