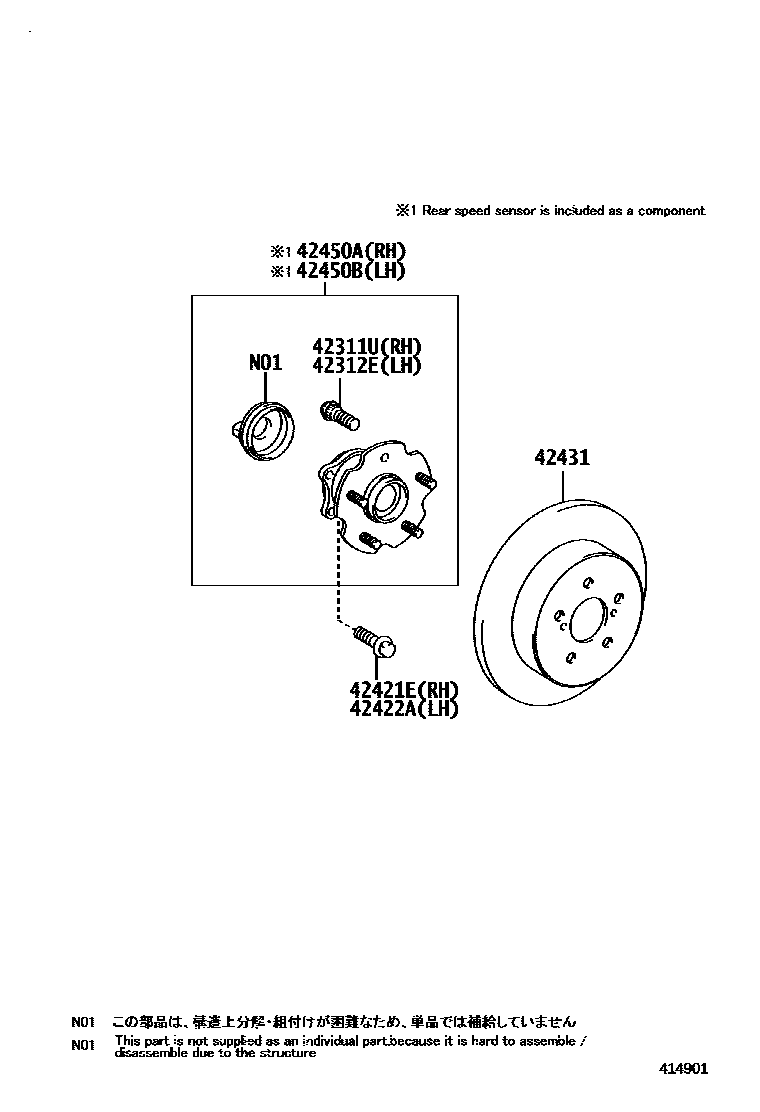

Toyota COROLLA HB — REAR AXLE SHAFT & HUB
42311UBOLT, HUB(FOR REAR AXLE RH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
42431DISC, REAR
42450AHUB & BEARING ASSY, REAR AXLE, RH
42450BHUB & BEARING ASSY, REAR AXLE, LH
7 parts on this diagram · 1 diagram in section
REAR AXLE SHAFT & HUB for Toyota COROLLA HB
This section contains 7 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota COROLLA HB. Key components include: BOLT, HUB(FOR REAR AXLE RH), BOLT, HUB(FOR REAR AXLE LH), BOLT (FOR REAR AXLE BEARING CASE RH), BOLT (FOR REAR AXLE BEARING CASE LH), DISC, REAR.
