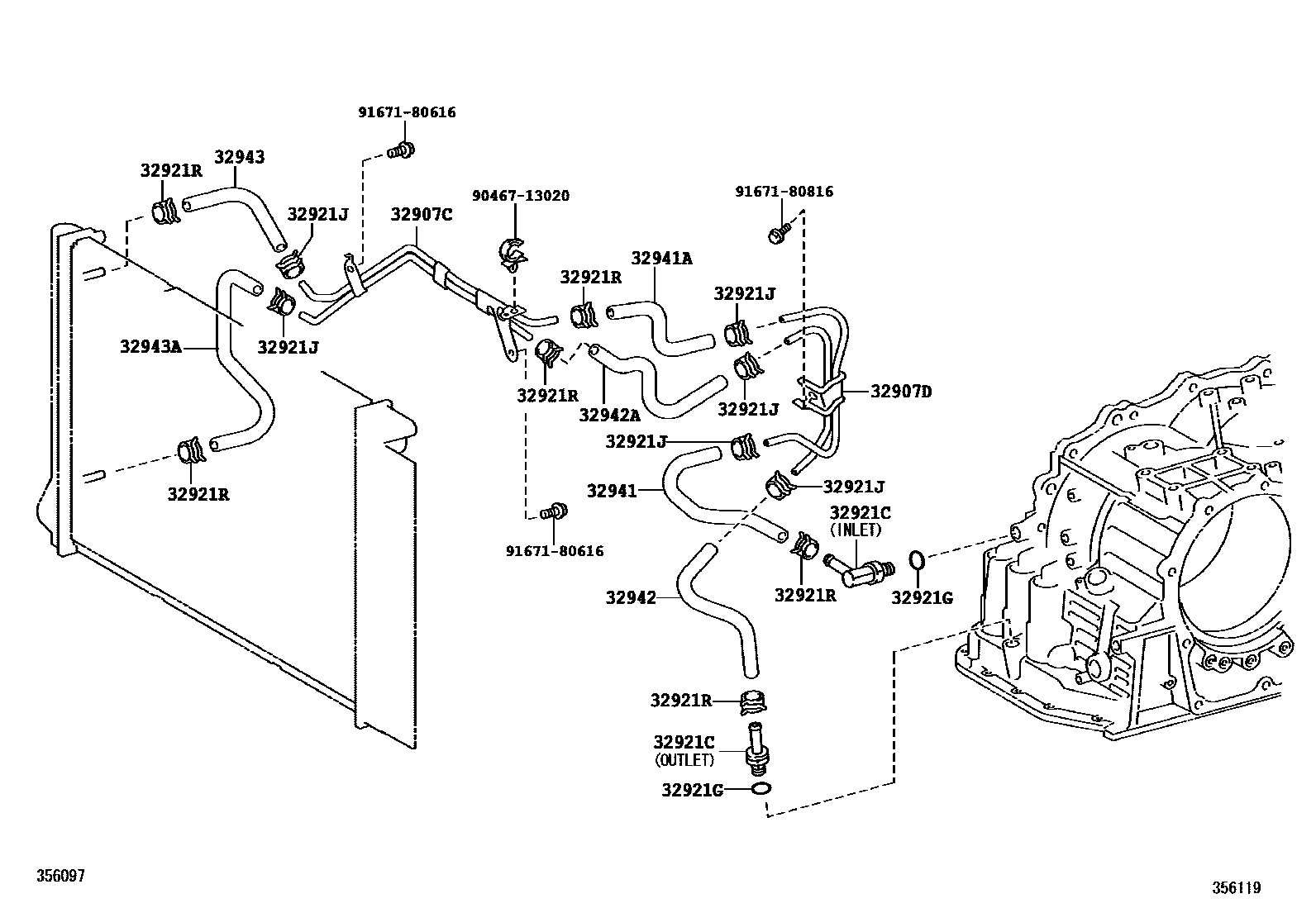

OIL COOLER & TUBE (ATM)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-12050iZRE152..4FC200703-200812

main32907-12240iZRE152..4FC200812-200901

main32907-12241iZRE152..4FC200901-200910

32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2

main32907-12060iZRE152..4FC200812-200910

32921CUNION(FOR OIL COOLER TUBE)

main90404-13005iZRE152..4FC200703-200812

INLET

main90404-13007iZRE152..4FC200812-200910

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZRE152..4FC200703-200812

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×6iZRE152..4FC200703-200812

main96137-41501×6iZRE152..4FC201001

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96137-41501×6iZRE152..4FC200910

32941HOSE, OIL COOLER INLET, NO.1

main32943-12060iZRE152..4FC200703-200812

main32943-12061iZRE152..4FC200907-200910

32941AHOSE, OIL COOLER INLET, NO.2

main90445-15044iZRE152..4FC200703-200812

32942HOSE, OIL COOLER OUTLET, NO.1

main32943-12050iZRE152..4FC200703-200812

main32943-12051iZRE152..4FC200907-200910

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-15016iZRE152..4FC200703-200812

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-12070iZRE152..4FC200703-200812

main32943-12071iZRE152..4FC200907-200910

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-12080iZRE152..4FC200703-200812

main32943-12081iZRE152..4FC200907-200910

9046713020

main90467-13020

9167180616

main91671-80616

9167180816

main91671-80816

15 parts on this diagram · 1 diagram in section
