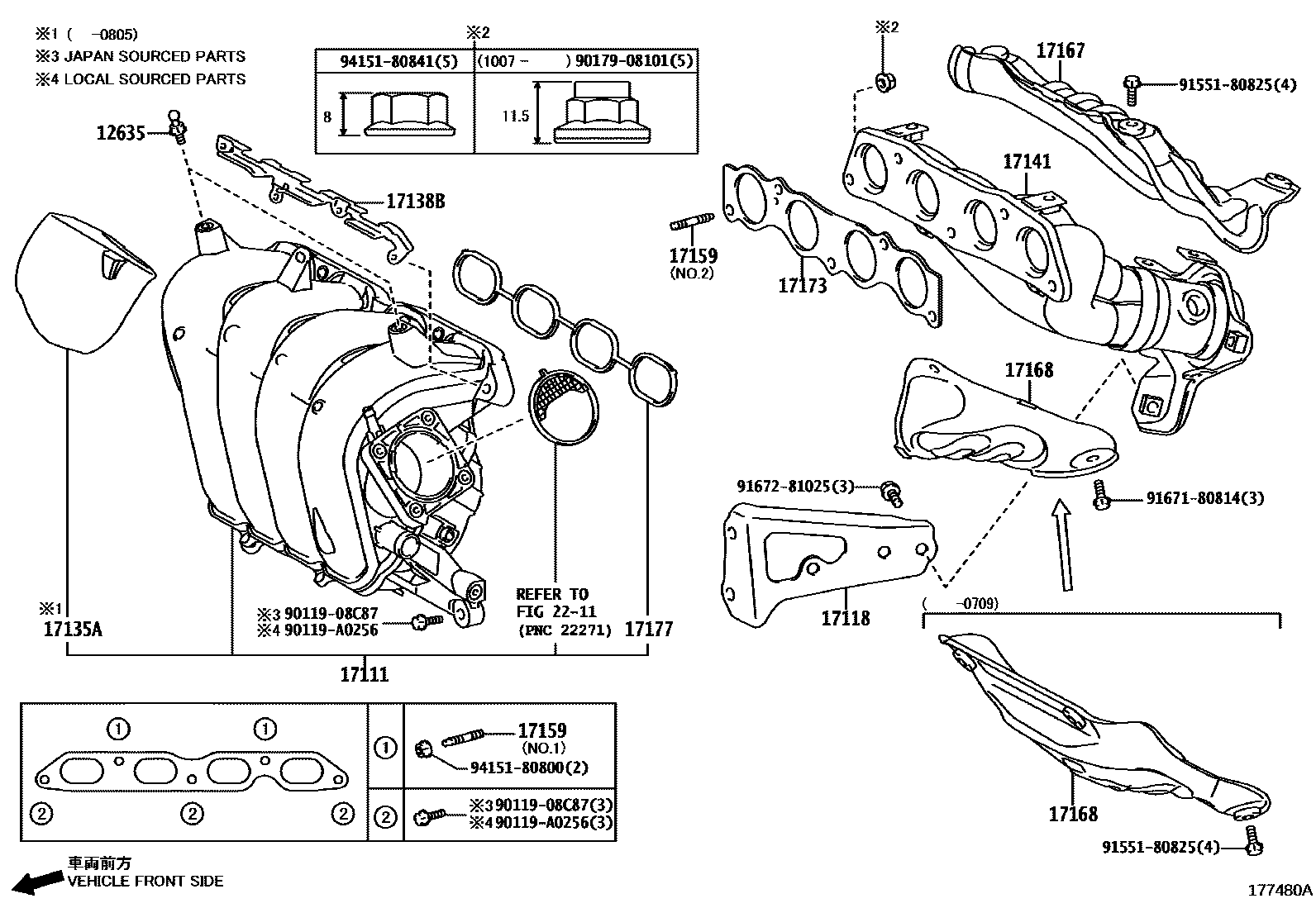

MANIFOLD
12635JOINT, ENGINE COVER
17111MANIFOLD, INTAKE
(L)
(J)
17118STAY, MANIFOLD
(L)
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
(L)
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
2211FUEL INJECTION SYSTEM
9011908C87
main90119-08C87
90119A0256
main90119-A0256
9017908101
main90179-08101
9155180825
main91551-80825
9167180814
main91671-80814
9167281025
main91672-81025
9415180800
main94151-80800
9415180841
main94151-80841
20 parts on this diagram · 1 diagram in section
