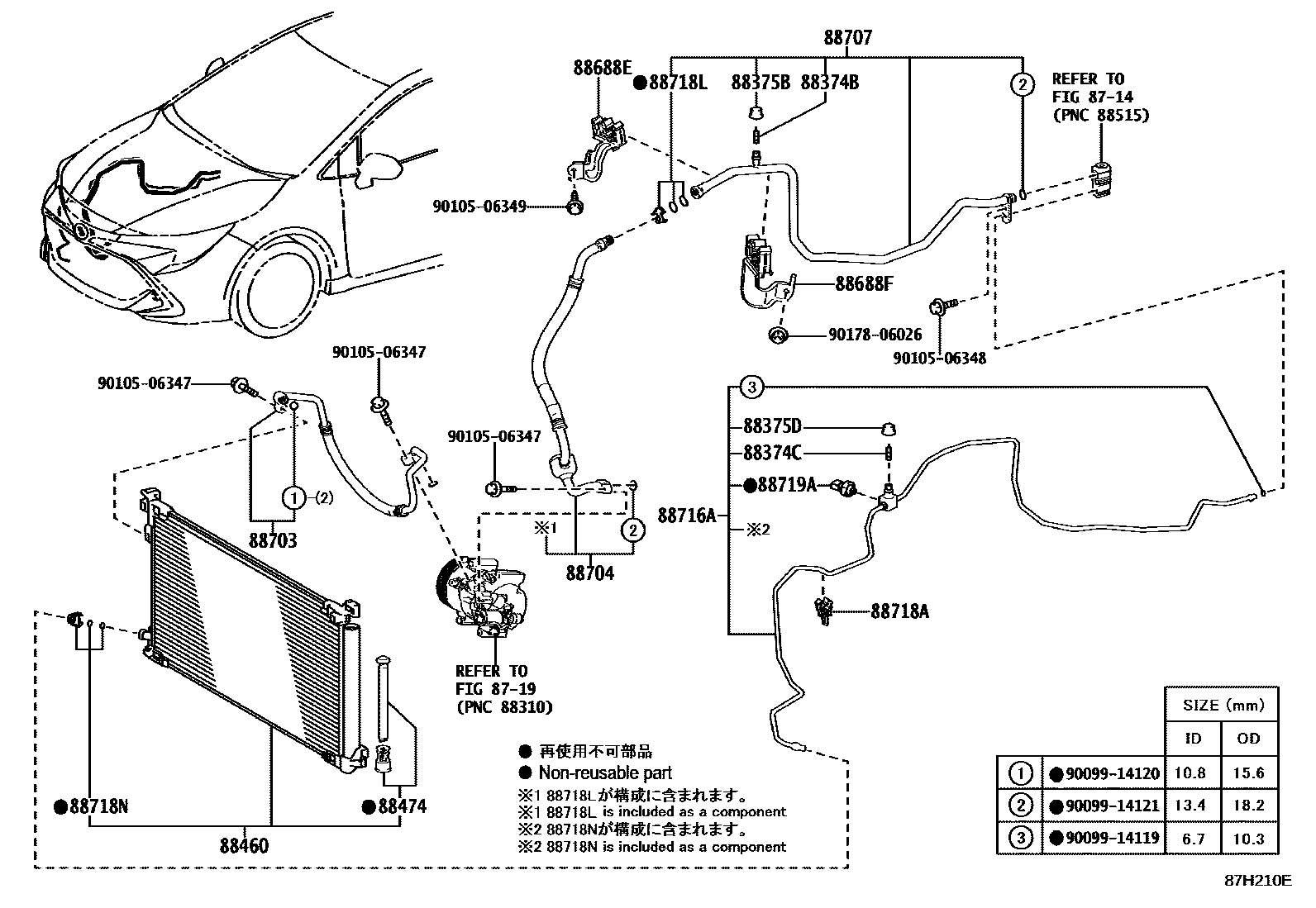

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iMZEA12..ARL202209-202508

88374CVALVE, SERVICE, NO.2

main88374-30010iZWE219;MZEA12..TAIW202209

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iMZEA12,ZWE219..SA,TAIW202209

main88375-30310iZWE219..ARL202310

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iMZEA12,ZWE219..SA,TAIW202209

main88375-30320iMZEA12..ARL202310-202508

88460CONDENSER ASSY, COOLER

main88460-10310iNRE210201806

main88460-10320iZWE211201806

main884A0-12020iMZEA12..CVT201806-202209

main884A0-12100iMZEA12..TAIW202209

main884A0-12110iZWE219202209

main884A0-12120iMZEA12..ARL202404-202508

88474DRYER, COOLER

main88474-12010iMZEA12..ARL202209-202508

main88474-12020iMZEA12..6F;NRE210,ZWE211201806

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-10540iNRE210201806

main88688-12A20iMZEA12..CVT201806-202209

main88688-47700iZWE211201806

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-10560iNRE210;MZEA12..6F201806

main88688-47710iZWE219202209

88703HOSE SUB-ASSY, DISCHARGE

main88703-10100iNRE210201806

main88703-12A20iMZEA12..ARL202209-202508

main88703-16340iZWE219202209

main88703-47080iZWE211201806

88704HOSE SUB-ASSY, SUCTION

main88704-10260iNRE210201806

main88704-12A90iMZEA12..CVT..ARL201806-202209

main88704-12B30iMZEA12..TAIW202209-202405

main88704-12B90iMZEA12..TAIW202406

main88704-16500iZWE219202209

main88704-47100iZWE211201806

88707PIPE SUB-ASSY, SUCTION

main88707-12370iMZEA12..TAIW201806-202209

main88707-12410iMZEA12..CVT..ARL201806-202209

main88707-12430iNRE210201806

main88707-12450iMZEA12..ARL202310-202508

main88707-47090iZWE219..ARL202209-202310

main88707-47100iZWE219..ARL202310

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12B10iMZEA12..TAIW201806-201909

main88710-12B20iMZEA12..ARL201806-201909

main88710-12B40iNRE210201806

main88710-12C20iMZEA12..TAIW201909-202209

main88710-12C30iMZEA12..CVT..ARL201909-202209

main88710-12C60iMZEA12..ARL202310-202508

main88710-12D50iZWE219..ARL202310

main88710-12D60iZWE219..ARL202209-202310

main88710-47160iZWE211201806-202006

main88710-47161iZWE211202006

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-47110iMZEA12..CVT201806-202209

88718LCLAMP, PIPING

main88718-52280iMZEA12..TAIW; ZWE219;MZEA12..TAIW202209

88718NCLAMP, PIPING

main88718-1E150iMZEA12..6F;NRE210,ZWE211201806

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMZEA12..ARL202209-202508

main88719-47010iZWE211201806

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9017806026

main90178-06026

25 parts on this diagram · 6 diagrams in section
