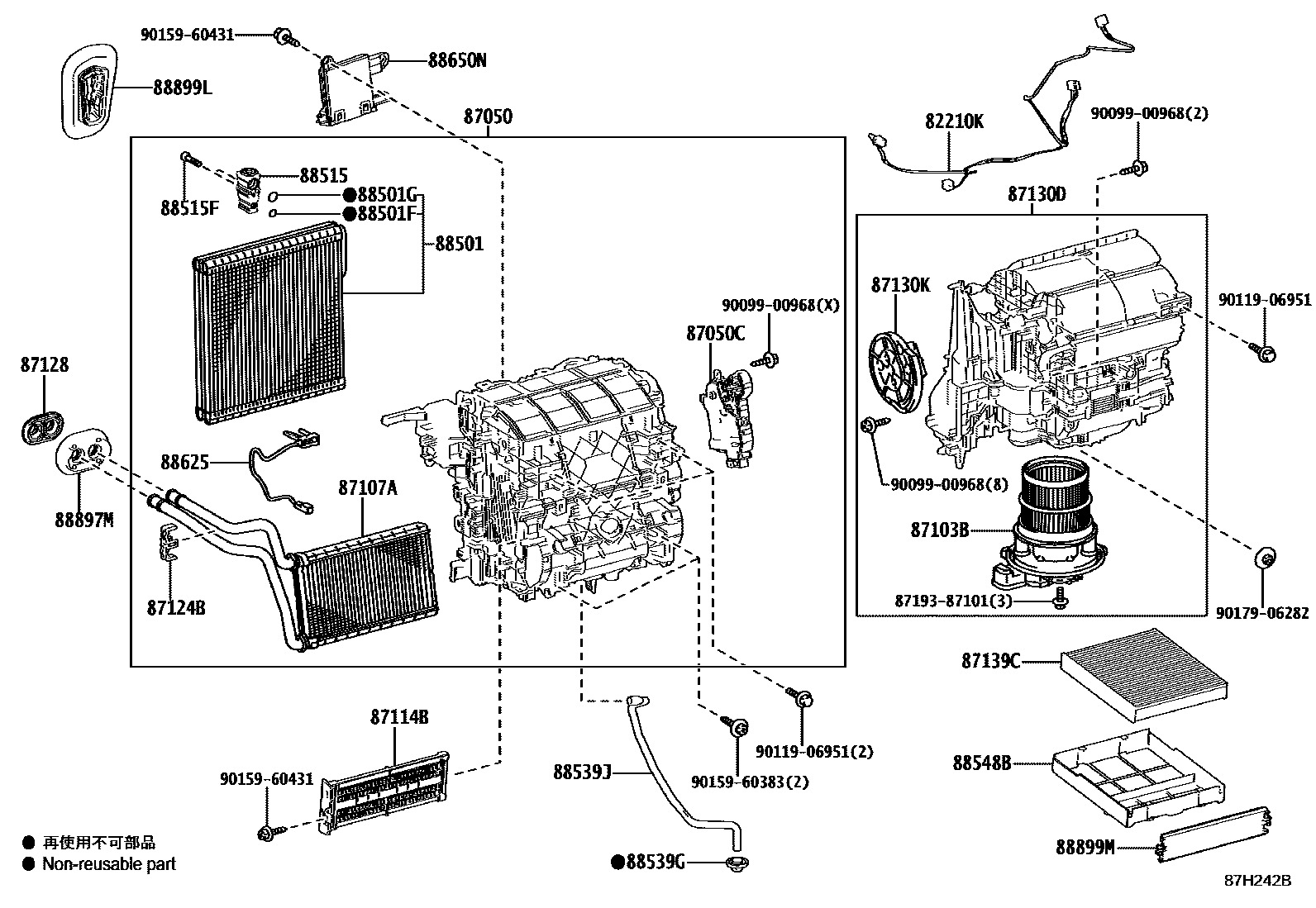

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12050iMZEA12..TAIW201806-202209

main82212-12130iMZEA12..ARL202209-202508

main82212-12100iMZEA12..N..ARL202209-202508

Z PACKAGE

main82212-12110supersedes 82212-12080iZWE211201806

Z PACKAGE

87050RADIATOR ASSY, AIR CONDITIONER

main87050-10030supersedes 87050-12D90iNRE210201806

main87050-12890iMZEA12..CVT..D201806-202209

main87050-12D80iMZEA12..D202404-202508

main87050-12E90iZWE219..SA202209

main87050-12C20supersedes 87050-12C30iZWE211201806

Z PACKAGE

main87050-12C70supersedes 87050-12840iMZEA12..TAIW202009-202209

AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)

main87050-12D10supersedes 87050-10030iMZEA12..N..ARL201806-202209

Z PACKAGE

main87050-12E80supersedes 87050-12E90iZWE219..ARL202209-202404

Z PACKAGE

main87050-16040supersedes 87050-12D90iMZEA12..N..ARL202404-202508

Z PACKAGE

main87050-16060supersedes 87050-12E70iZWE219..ARL202404

Z PACKAGE

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-47180iMZEA12..6F201806

main87106-48170supersedes 87106-47180iNRE210,ZWE211201806

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42120iMZEA12..TAIW202107-202209

main87103-42130iMZEA12..CVT..ARL202107-202209

main87103-58070iMZEA12,ZWE219..RHD202209-202404

main87103-58080iMZEA12..TAIW201806-202107

main87103-78040iMZEA12..TAIW202404

main87103-78050iZWE219202404

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iZWE219202209

main87107-47080iMZEA12..TAIW202209

87114BCOVER, HEATER

main87114-47020iMZEA12..CVT201806-202209

87124BCLAMP, HEATER

main87124-33070iZWE219;MZEA12..TAIW202209

87128GROMMET, HEATER

main87128-28010iZWE219;MZEA12..TAIW202209

87130DBLOWER ASSY

main87130-16211iMZEA12..N..ARL202404-202508

main87130-42470iMZEA12..TAIW202107-202209

main87130-42480iMZEA12..CVT..ARL202107-202209

main87130-42491iMZEA12..TAIW202404

main87130-47290iMZEA12..TAIW202209-202404

main87130-47300iMZEA12..ARL202209-202404

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iMZEA12..D202209-202404

main87106-58050iMZEA12..TAIW201806-202209

87139CFILTER, CLEAN AIR

main87139-28020iMZEA12..6F;NRE210,ZWE211201806

POLLEN FILTER

main87139-58010iMZEA12..CVT201806-202209

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10180iZWE219202209

main88501-12540iMZEA12..ARL202404-202508

main88501-12620iMZEA12..CVT201806-202209

main88501-47090iZWE211201806

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMZEA12..CVT201806-202209

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMZEA12..CVT201806-202209

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-30800iZWE211201806

main88515-33080iZWE219..ARL202404

main88515-48110iMZEA12,ZWE219..ARL202209-202404

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iZWE219..ARL202209-202404

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iNRE210201806

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iMZEA12..CVT201806-202209

88539JHOSE, DRAIN COOLER

main88539-47050iMZEA12..ARL202209-202508

main88539-47060iMZEA12..TAIW202209

88548BCASE, AIR FILTER

main88899-47090iMZEA12..6F;NRE210,ZWE211201806

88625THERMISTOR, COOLER, NO.1

main88620-28050iMZEA12..CVT201806-202209

main88620-28060iZWE211201806

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12G90iMZEA12..CVT201806-202209

main88650-12M00iMZEA12,ZWE219202209-202308

main88650-12N00iMZEA12,ZWE219202309-202404

main88650-12N30iMZEA12..ARL202404-202508

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iZWE219;MZEA12..TAIW202209

88899LPARTS, COOLING UNIT

main88899-10120iMZEA12..CVT201806-202209

main88899-47070iZWE211201806

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iZWE219;MZEA12..TAIW202209

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

31 parts on this diagram · 4 diagrams in section
