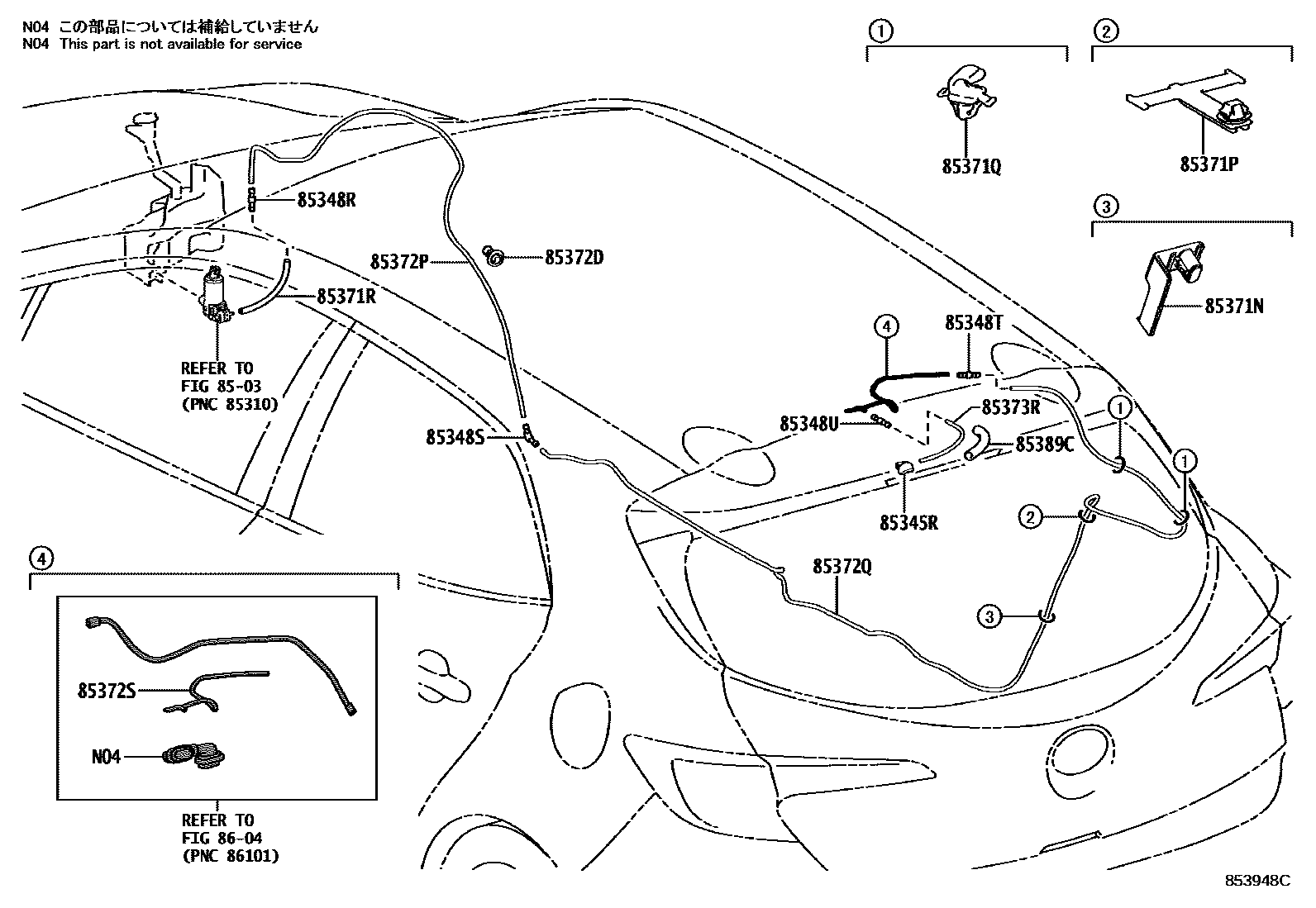

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=250)
85372DGROMMET, REAR WASHER HOSE
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1480
L=1480,AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB 6SPEAKER
L=1480,AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB JBL 8SPEAKER
L=1480,SOUTH AFRICA SPEC
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=3267
L=3267,AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB 6SPEAKER
L=3267,AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB JBL 8SPEAKER
L=3300
L=3300,AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB 6SPEAKER
L=3300,AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB JBL 8SPEAKER
L=3300,SOUTH AFRICA SPEC
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=460)
L=1450(*H,L=470),AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB 6SPEAKER
L=1450(*H,L=470),AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB JBL 8SPEAKER
L=1450(*H,L=450),SOUTH AFRICA SPEC
L=1450(*H,L=450)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=200)
L=1450(*H,L=200),AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB 6SPEAKER
L=1450(*H,L=200),AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI DAB JBL 8SPEAKER
L=1450(*H,L=200),SOUTH AFRICA SPEC
85389CPROTECTOR, WASHER
8604
17 parts on this diagram · 1 diagram in section
