REAR WIPER

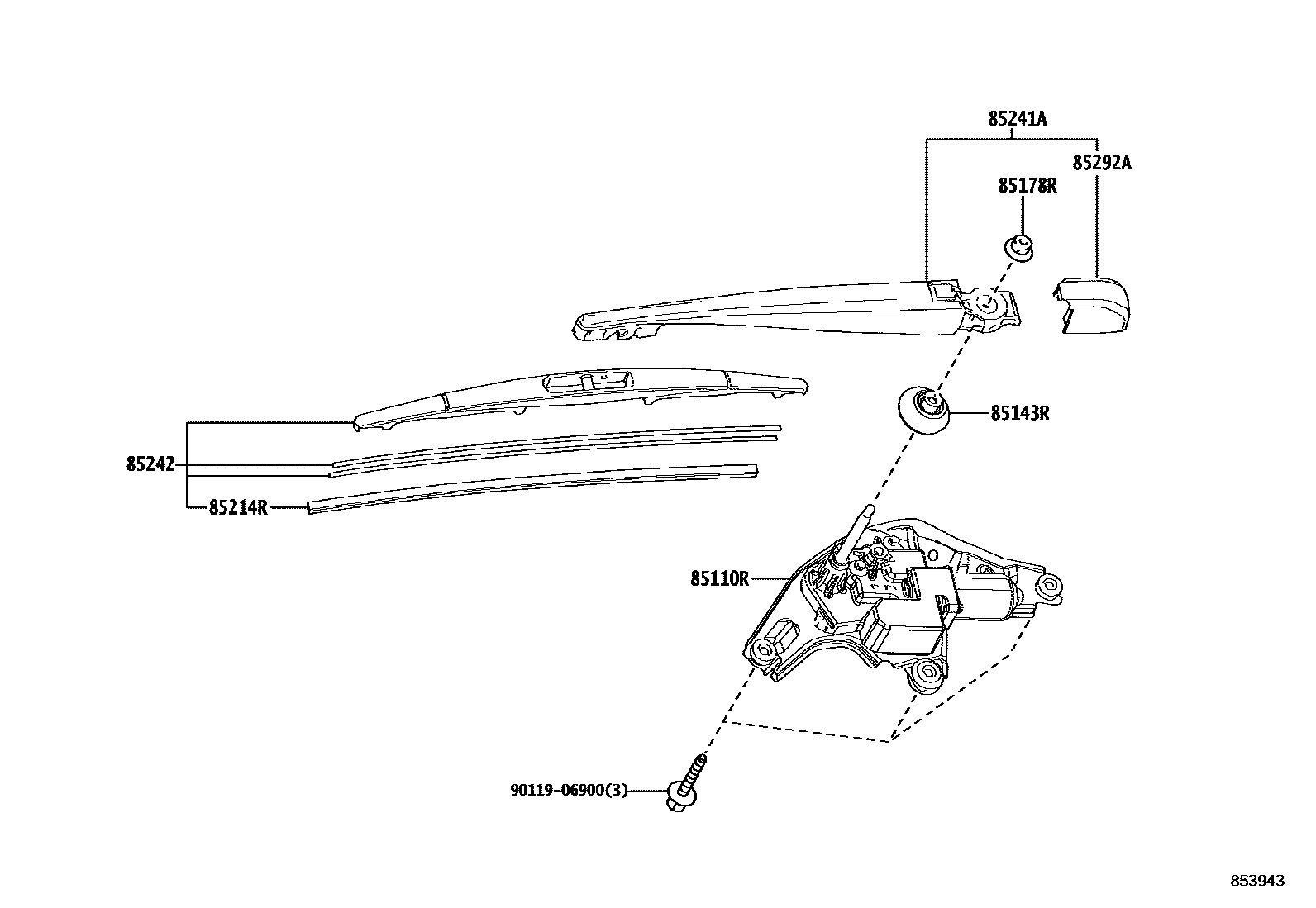

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-12A40i201806-202508

85143RGROMMET, REAR WIPER MOTOR

main85143-12830i201806-202508

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i201806-202508

85214RRUBBER, REAR WIPER

main85214-12320i201806-202508

85241AARM, REAR WIPER

main85241-12170i201806-202508

85242BLADE, RR WIPER

main85242-12150i201806-202508

85292ACAP, REAR WIPER ARM HEAD

main85244-12050i201806-202508

9011906900

main90119-06900

8 parts on this diagram · 1 diagram in section
