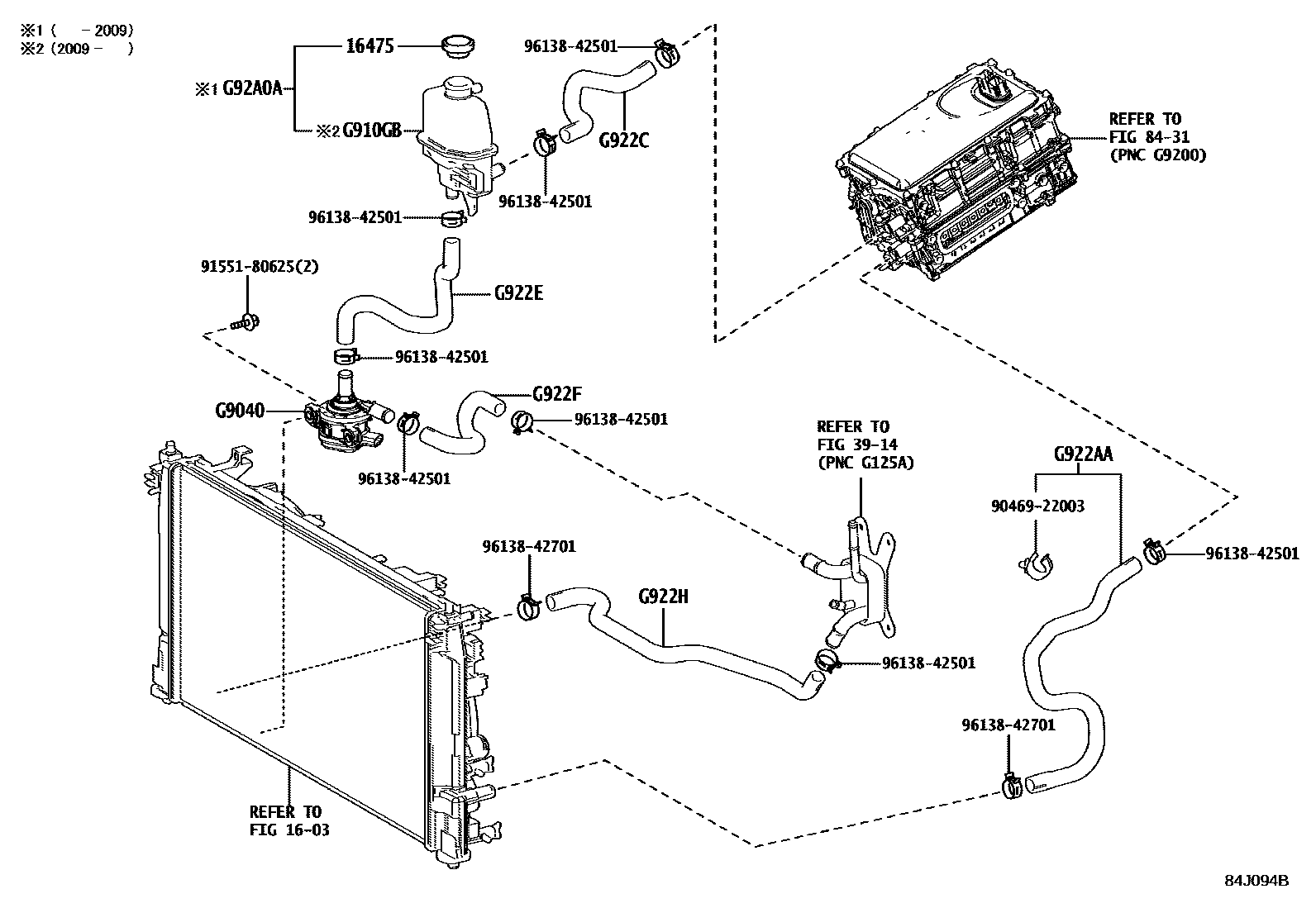

INVERTER COOLING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZWE211201806

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iZWE219202209

mainG904047040iZWE211201806

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G12010iZWE211202009

mainG910G16010iZWE219202209

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iZWE219202209

mainG922A47010iZWE211201806

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZWE219202209

mainG922C47010iZWE211201806

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16030iZWE219202209

mainG922E47010iZWE211201806

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZWE211201806

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iZWE219202209

mainG922H47010iZWE211201806

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H047011iZWE211201806-202008

9046922003

main90469-22003

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

16 parts on this diagram · 2 diagrams in section
