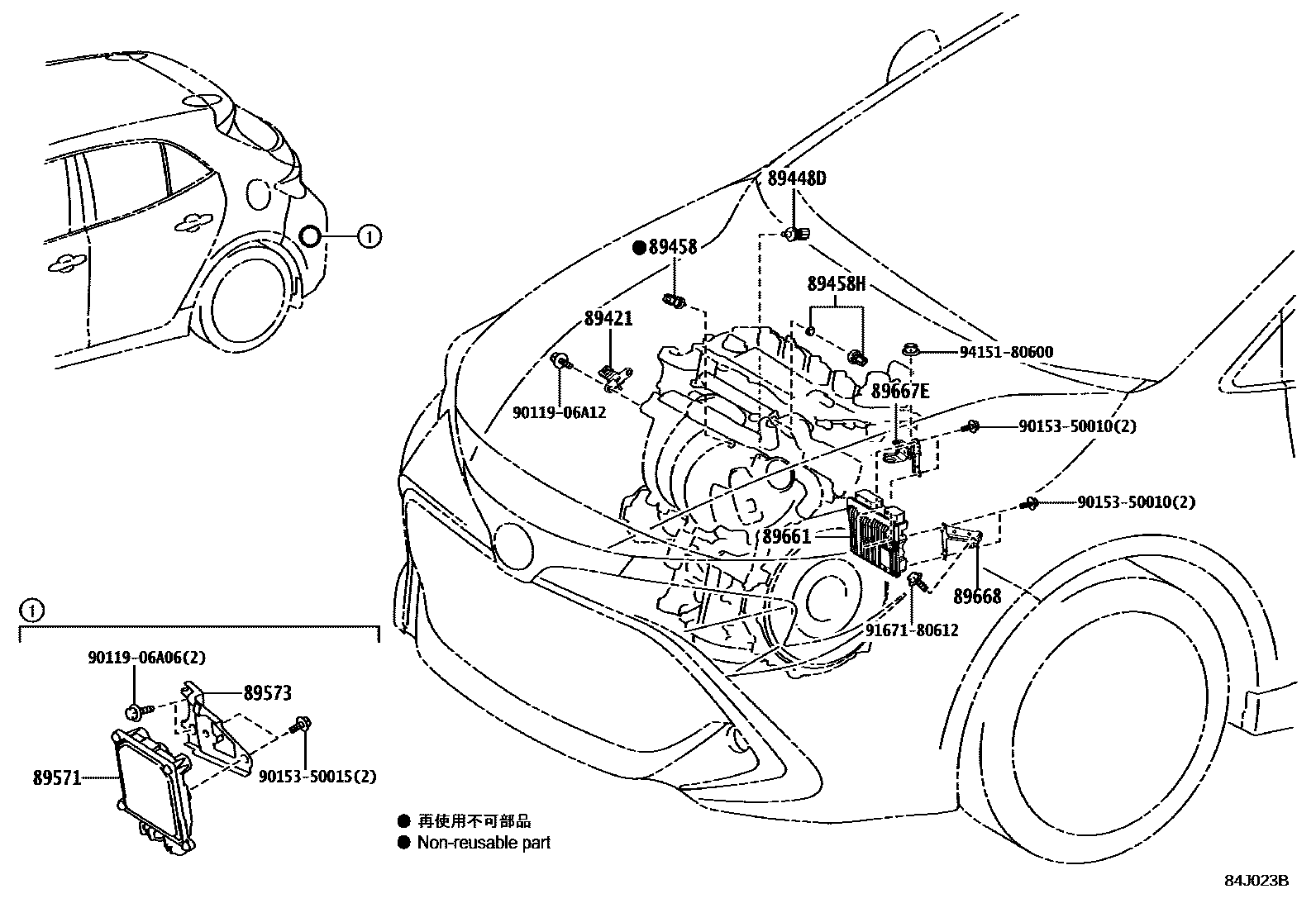

ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89448DSENSOR, OIL PRESSURE & TEMPERATURE
89458SENSOR, FUEL PRESSURE
89571COMPUTER, FUEL PUMP CONTROL
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
DENSO
DENSO
DENSO
DENSO TEN
DENSO,*614
DENSO TEN
DENSO TEN
DENSO TEN
DENSO TEN
DENSO TEN
DENSO,*614
DENSO,*614
DENSO,*614
DENSO TEN,*AVS-WITH
DENSO,SOUTH AFRICA SPEC,*614
DENSO,*AVS-WITH,*614
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906A06
main90119-06A06
9011906A12
main90119-06A12
9015350010
main90153-50010
9015350015
main90153-50015
9167180612
main91671-80612
9415180600
main94151-80600
15 parts on this diagram · 5 diagrams in section
