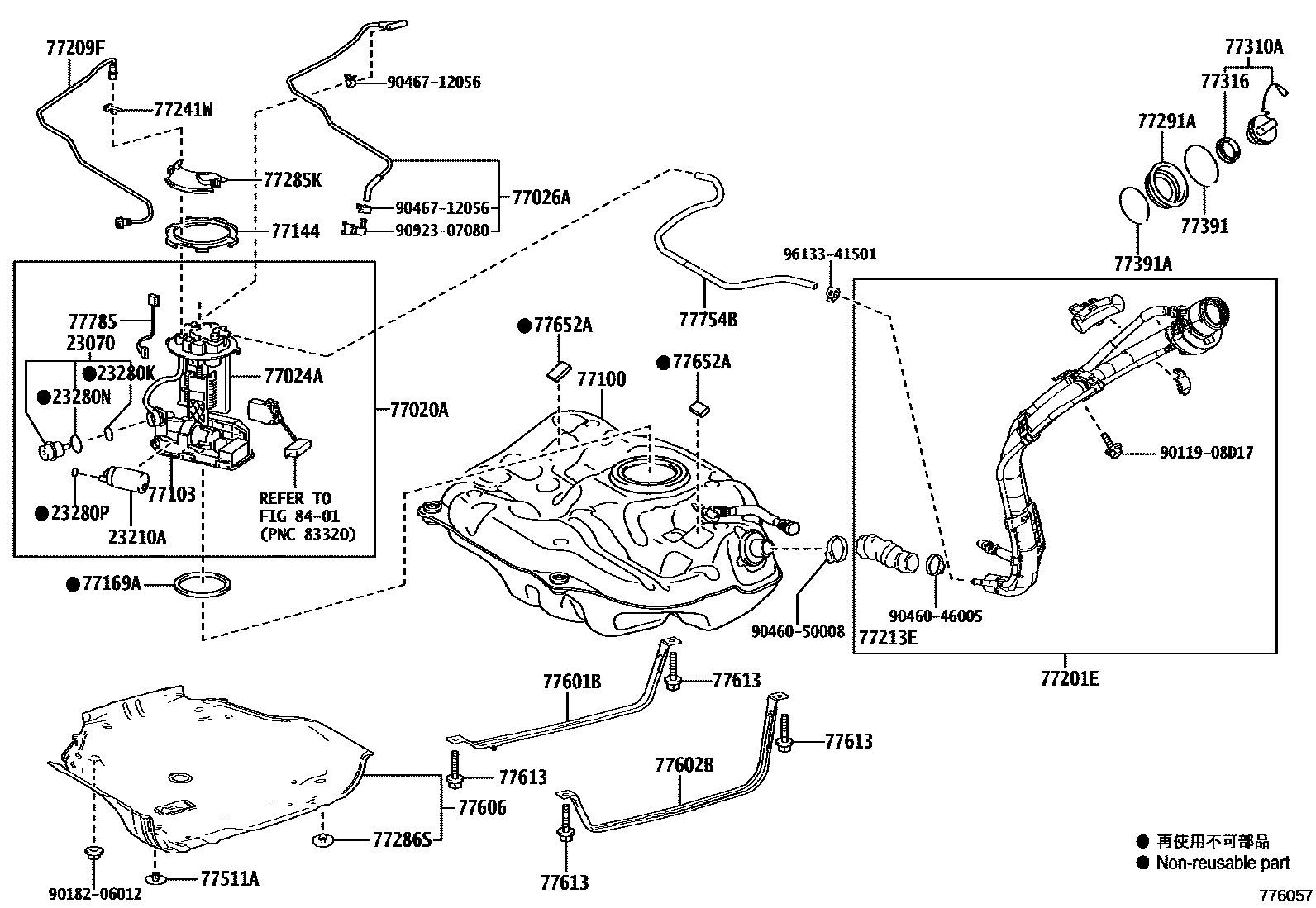

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL LID OPENER 0011 1FUEL LID OPNER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20AFKS..MZEA12..ARL202209-202508

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-24010iM20AFKS..MZEA12..ARL202209-202508

main23210-37020i2ZRFXE..ZWE211201806

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013iM20AFKS..MZEA12201806-201808

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024iM20AFKS..MZEA12..ARL202209-202508

23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3

main90301-07046iM20AFKS..MZEA12..CVT201808-202209

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-10110iNRE210201806

main77020-12A10iMZEA12..TAIW202209

main77020-12A60iZWE219202209

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10020iZWE211201806-202208

main77024-10030iNRE210201806-202208

main77024-12380iMZEA12201806-202208

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-10040iNRE210;MZEA12..6F201806

main77026-47040iZWE211201806

77100TANK ASSY, FUEL

main77001-10380iNRE210;MZEA12..6F201806

sub77001-10420

main77001-12E70iMZEA12..TAIW202107-202209

main77001-12F10iMZEA12..ARL202209-202508

main77001-12F30iZWE219202209

main77001-47220iZWE211201806

77103SUB-TANK SUB-ASSY, FUEL

main77103-12170iMZEA12..CVT201806-202209

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA12..CVT201806-202209

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iMZEA12..CVT..ARL201806-202209

main77169-47040iMZEA12..TAIW202209

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77210-12620iMZEA12,NRE210,ZWE211201806-202001

main77210-12621iMZEA12..6F;NRE210,ZWE211202002

main77210-12890iMZEA12..TAIW202107-202209

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-10130iNRE210;MZEA12..6F201806

main77209-12360iMZEA12..TAIW202107-202209

main77209-47100iZWE211201806

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12360iMZEA12..TAIW201806-202107

77241WCLIP, TUBE JOINT

main77241-33011iMZEA12,NRE210,ZWE211201806-202108

main77241-60550iMZEA12..CVT202109-202209

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iMZEA12..CVT201806-202209

main77285-30350iZWE211201806

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12..ARL202209-202508

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12260iMZEA12..6F;NRE210,ZWE211201806

77310ACAP ASSY, FUEL TANK

main77300-12020iMZEA12..6F;NRE210,ZWE211201806

main77300-48020iMZEA12..TAIW202107-202209

77316GASKET, FUEL TANK CAP

main77316-52040iZWE219;MZEA12..TAIW202209

main77316-75020iMZEA12..TAIW202107-202209

77391RING, FUEL INLET BOX

main77391-33060iMZEA12..CVT201806-202209

77391ARING, FUEL INLET BOX

main77391-12020iMZEA12..CVT201806-202209

77511ABRACKET, FUEL TANK

main77512-35140×4iMZEA12..CVT201806-202209

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-10080iMZEA12..CVT201806-202209

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-10030iMZEA12..ARL202209-202508

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10060iNRE210;MZEA12..6F201806

77613BOLT, FUEL TANK BAND SET

main90119-10995×4iMZEA12..CVT201806-202209

77652ACUSHION, FUEL TANK, NO.2

main77652-10070×2iMZEA12..TAIW202209

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-10020iMZEA12..ARL202209-202508

main77754-16120iZWE219202312

main77754-47090iZWE211201806

77785HARNESS, FUEL PUMP

main77785-12010iNRE210,ZWE211201806

main77785-76010iMZEA12..TAIW202209

8401

9011908D17

main90119-08D17

9018206012

main90182-06012

9046046005

main90460-46005

9046050008

main90460-50008

9046712056

main90467-12056

9092307080

main90923-07080

9613341501

main96133-41501

39 parts on this diagram · 11 diagrams in section
