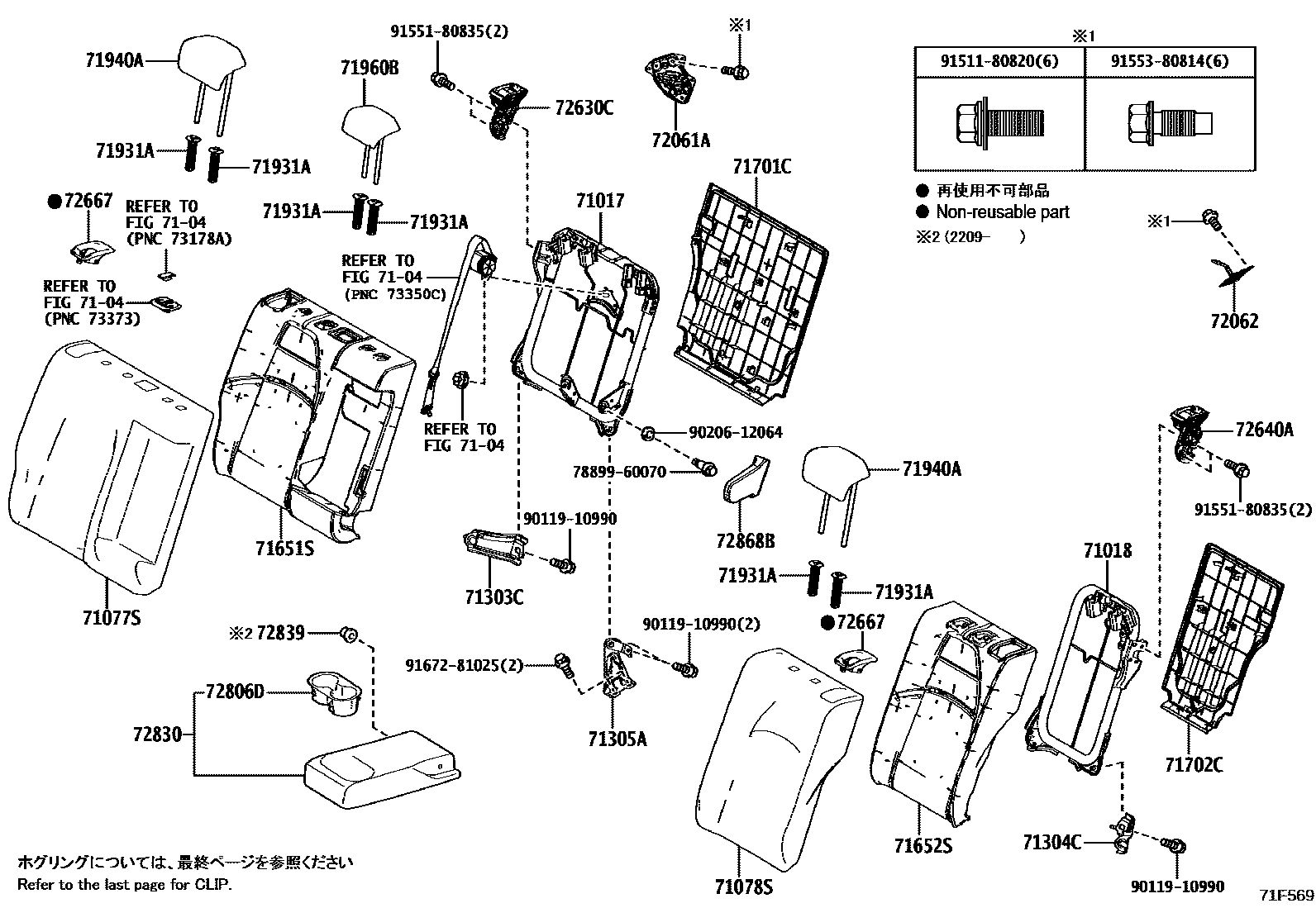

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-12C20i202209

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-12540i202209-202505

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-12U80-C6i201806-201909

BLACK / GRAY DOT,TRIM2#

main71077-12X70-C3i201806-201909

BLACK / GRAY DOT,TRIM2#

main71077-12Y80-C0i201909

BLACK / GRAY DOT,TRIM2#

main71077-12Z50-C0i201909-202209

BLACK / GRAY DOT,TRIM2#

main71077-1AB70-C1i202209-202404

BLACK/GRAY DOT,TRIM2#

main71077-1AB71-C2i202404-202505

BLACK/GRAY,TRIM2#

main71077-1AC20-C4supersedes 71077-1AB60-C2i202209-202404

BLACK/BLACK/GRAY,TRIM2#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/BLACK/GRAY,TRIM2#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/BLACK/GRAY,TRIM2#

main71077-1AC20-C5i202209-202404

BLACK/SENSUAL RED/BLACK,TRIM3#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED/BLACK,TRIM3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED/BLACK,TRIM3#

main71077-1AC21-C6supersedes 71077-1AB61-C3i202404

BLACK/GRAY,TRIM2#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/GRAY,TRIM2#

main71077-1AC21-C7i202404

BLACK/SENSUAL RED,TRIM3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71077-12V10-C7i201806-201909

SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#; Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#

main71077-12V10-C8i201806-201909

SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#; Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71077-12X50-C4i201806-201909

Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#

main71077-12X50-C5i201806-201909

Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71077-12Z00-C0i201909-202006

Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#

main71077-12Z00-C1i202006-202209

SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUALSEAT)&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71077-12Z60-C0i201909-202209

Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#

main71077-12Z60-C1i201909

Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71077-12Z70-B0i201909

SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#

main71077-1AB60-C2i202209-202404

BLACK/GRAY DOT,TRIM2#; SOUTH AFRICA SPEC,BLACK/GRAY DOT,TRIM2#

main71077-1AB61-C3i202404-202508

SOUTH AFRICA SPEC,BLACK/GRAY,TRIM2#

main71077-1AC00-B1i202209-202404

SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY/BLACK,TRIM2#

main71077-1AC30-C4i202209-202404

Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/BLACK/GRAY,TRIM2#

main71077-1AC30-C5i202209-202404

Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/SENSUAL RED/BLACK,TRIM3#

main71077-1AC31-C6i202404-202508

Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/GRAY,TRIM2#

main71077-1AC31-C7i202404

Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-12Q30-C0i201909

BLACK / GRAY DOT,TRIM2#

main71078-12S10-C4i201806-201909

BLACK / GRAY DOT,TRIM2#

main71078-12U00-C2i202209-202404

BLACK/GRAY DOT,TRIM2#

main71078-12U01-C3i202404

BLACK/GRAY,TRIM2#

main71078-12U40-C4i202209-202404

BLACK/BLACK/GRAY,TRIM2#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/BLACK/GRAY,TRIM2#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/BLACK/GRAY,TRIM2#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/BLACK/GRAY,TRIM2#

main71078-12U40-C5i202209-202404

BLACK/SENSUAL RED/BLACK,TRIM3#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED/BLACK,TRIM3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/SENSUAL RED/BLACK,TRIM3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED/BLACK,TRIM3#

main71078-12U41-C6i202404

BLACK/GRAY,TRIM2#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/GRAY,TRIM2#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/GRAY,TRIM2#

main71078-12U41-C7i202404

BLACK/SENSUAL RED,TRIM3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71078-12Q60-C7i201806-201909

SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#; Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#

main71078-12Q60-C8i201806-201909

SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#; Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71078-12S60-B0i201909

SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY,TRIM2#

main71078-12S70-C0i202006-202209

SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUALSEAT)&SEAT HEATER-WITH,BLACK,TRIM2#

main71078-12S70-C1i202006

Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK/SENSUAL RED,TRIM3#

main71078-12U20-B1i202209-202404

SEAT COVER MATERIAL-FABRIC & LEATHER,GRAY/BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12230i202209-202508

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-12100i202209

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47040i202209-202508

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-12B90i201806-202209

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-12A20i201806-202209

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-12010i201806

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-12010i201806-202209

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5×3i201806-201909

W(LOCK),BLACK,TRIM2#

main71931-47030-C4×3i202209-202505

W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,3#

71940AHEADREST ASSY, REAR SEAT

main71940-12F10-C7×2i201806

BLACK / GRAY DOT,TRIM2#

main71940-12F11-C9×2i202404-202505

BLACK/GRAY,TRIM2#

main71940-12F50-C4×2i202209-202404

BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#

main71940-12F50-D3×2i202209-202404

SENSUAL RED,TRIM3#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,SENSUAL RED,TRIM3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,SENSUAL RED,TRIM3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,SENSUAL RED,TRIM3#

main71940-12F51-C8×2i202404

BLACK,TRIM2#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#

main71940-12F51-D4×2i202404

SENSUAL RED,TRIM3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,SENSUAL RED,TRIM3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,SENSUAL RED,TRIM3#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-12B10-C2i201806-202209

BLACK / GRAY DOT,TRIM2#

main71960-12B11-C4i202404

BLACK/GRAY,TRIM2#

main71960-12B20-C2i202209-202404

BLACK,TRIM2#,3#; SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#,3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#,3#

main71960-12B21-C6i202404

BLACK,TRIM2#,3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#,3#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-12020i201806-202209

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-12020i201806-202209

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2i201806-202209

BLACK,TRIM2#; BLACK,TRIM2#,3#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2i201806-202209

BLACK,TRIM2#; BLACK,TRIM2#,3#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1×2i202209-202505

BLACK,TRIM2#; BLACK,TRIM2#,3#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-47010-C1i202209-202505

BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-12A91-C5i201806-202209

BLACK,TRIM2#

main72830-12A92-C7i202404-202505

BLACK/GRAY,TRIM2#

main72830-12B01-C3i202209-202404

BLACK,TRIM2#,3#; SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM2#; SOUTH AFRICA SPEC&Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#,3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#,3#

main72830-12B02-C4i202404

BLACK,TRIM2#,3#; Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&FRONTSEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM2#,3#; Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE&SEAT HEATER-WITH,BLACK,TRIM2#,3#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010i202006

72868BCOVER, CENTER ARMREST HINGE

main72868-12080-C0i201806-202006

BLACK,TRIM2#,3#

7889960070BOLT, FRONT SEAT

main78899-60070

9011910990

main90119-10990

9020612064

main90206-12064

9151180820
