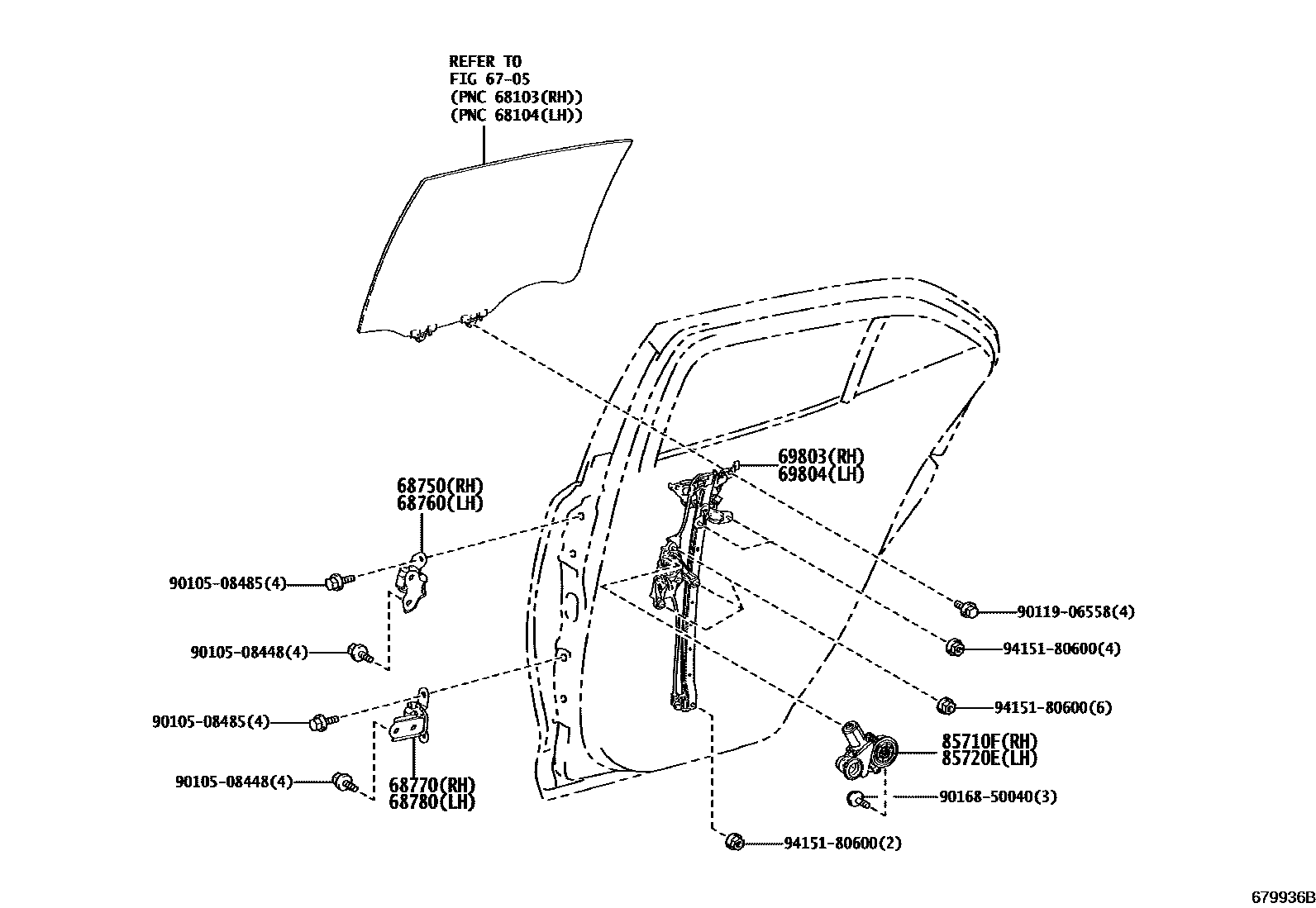

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iMZEA12..CVT201806-202209

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iMZEA12..CVT201806-202209

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iMZEA12..CVT201806-202209

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iMZEA12..CVT201806-202209

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12210iMZEA12,NRE210,ZWE211201806-201812

main69803-12211iMZEA12,NRE210,ZWE211201812-202002

main69803-12212iMZEA12,NRE210,ZWE211202003-202104

main69803-12213iMZEA12..CVT202105-202209

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12210iMZEA12,NRE210,ZWE211201806-201812

main69804-12211iMZEA12,NRE210,ZWE211201812-202002

main69804-12212iMZEA12,NRE210,ZWE211202003-202104

main69804-12213iMZEA12..CVT202105-202209

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12540iMZEA12..CVT201806-202209

main85710-12541iMZEA12,ZWE219202209-202305

main85710-12570iMZEA12..ARL202306-202508

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12530iMZEA12..CVT201806-202209

main85720-12531iMZEA12,ZWE219202209-202305

main85720-12580iMZEA12..ARL202306-202508

9010508448

main90105-08448

9010508485

main90105-08485

9011906558

main90119-06558

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
