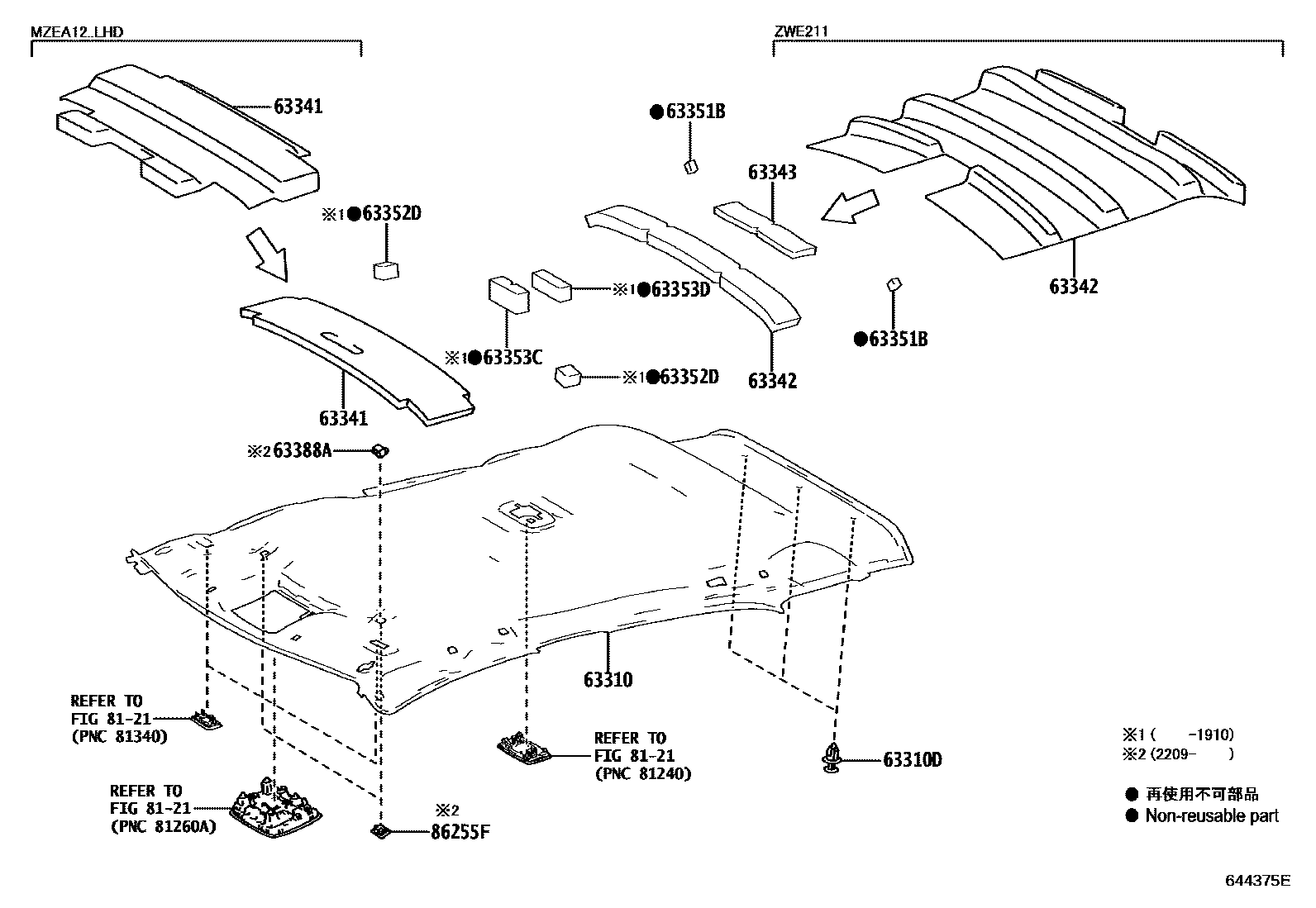

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-12N10-C1iMZEA12,NRE210,ZWE211..N; MZEA12..D201806-201908

BLACK,TRIM2#; BLACK,TRIM2#,3#

main63310-12N11-C1iMZEA12,NRE210,ZWE211..N; MZEA12..D201909-202107

BLACK,TRIM2#; BLACK,TRIM2#,3#

main63310-12N12-C1iMZEA12..6F; NRE210,ZWE211202108

BLACK,TRIM2#; BLACK,TRIM2#,3#

main63310-12Q00-C1supersedes 63310-12P90-C1iMZEA12..D; MZEA12..N..ARL202209-202508

BLACK,TRIM2#; BLACK,TRIM2#,3#

63310DCLIP, ROOF HEADLINING

main90467-05168-C0×3iMZEA12..D; MZEA12..N..ARL202209-202508

BLACK,TRIM2#; BLACK,TRIM2#,3#

63341PAD, ROOF SILENCER, NO.1

main63341-12370iZWE211;MZEA12..TAIW201806-202108

main63341-12380iMZEA12,NRE210..RHD201806-202107

main63341-12381iMZEA12..ARL202209-202508

63342PAD, ROOF SILENCER, NO.2

main63342-12400iZWE211201806-202107

main63342-12410iNRE210;MZEA12..6F201806

63343PAD, ROOF SILENCER, NO.3

main63342-12420iMZEA12..CVT201806-202209

63351BPAD, ROOF HEADLINING

main63351-12110×2iMZEA12..ARL202209-202508

63352DPAD, ROOF HEADLINING, NO.2

main63352-12120×2iMZEA12,NRE210,ZWE211201806-201910

63353CPAD, ROOF HEADLINING, CENTER

main63353-12030iMZEA12,NRE210,ZWE211201806-201910

63353DPAD, ROOF HEADLINING, CENTER

main63353-12050iMZEA12,NRE210,ZWE211201806-201910

63388ACOVER, ROOF HEADLINING HOLDER

main63388-52030iZWE219..SA202209

AUDIO-8INCH 6SPEAKER

8121INTERIOR LAMP

→ Go to FIG 81-21

86255FCASE, MICROPHONE

main86255-42010-C0×2iMZEA12..D; MZEA12..N..ARL202209-202508

BLACK,TRIM2#; BLACK,TRIM2#,3#

12 parts on this diagram · 1 diagram in section
