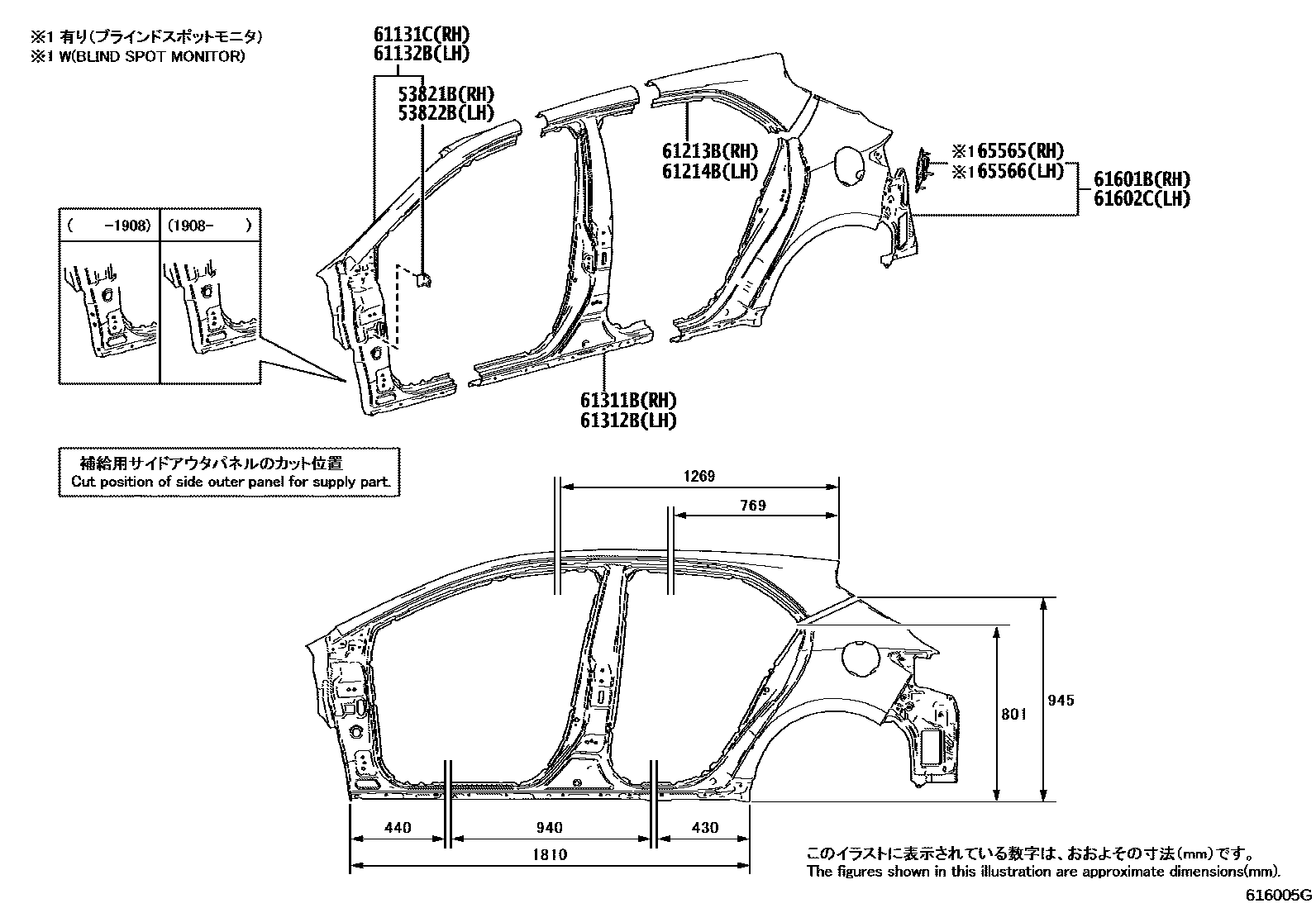

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53879-68020iMZEA12..CVT201806-202508

53822BBRACKET, FRONT FENDER, REAR LH

main53879-68020iMZEA12..CVT201806-202508

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12820iMZEA12,NRE210,ZWE211201806-201908

main61131-12821iMZEA12..CVT201908-202508

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12800iMZEA12,NRE210,ZWE211201806-201908

main61132-12801iMZEA12..CVT201908-202508

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-12110iMZEA12..CVT201806-202508

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-12110iMZEA12..CVT201806-202508

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12530iMZEA12..CVT201806-202508

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12570iMZEA12..CVT201806-202508

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-12C10iMZEA12..ARL202107-202508

main61601-12C10iZWE219202209

Z PACKAGE

main61601-12C20iMZEA12..TAIW;MZEA12..CVT..D201806-202209

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-12C10iMZEA12..ARL202107-202508

main61602-12C10iZWE219202209

Z PACKAGE

main61602-12C20iMZEA12..N..ARL201806-202209

65565PATCH, SIDE PANEL REAR END, RH

main65565-50010iMZEA12..N..ARL202107-202508

main65565-50010iZWE219202209

Z PACKAGE

65566PATCH, SIDE PANEL REAR END, LH

main65565-50010iMZEA12..N..ARL202107-202508

main65565-50010iZWE219202209

Z PACKAGE

12 parts on this diagram · 3 diagrams in section
