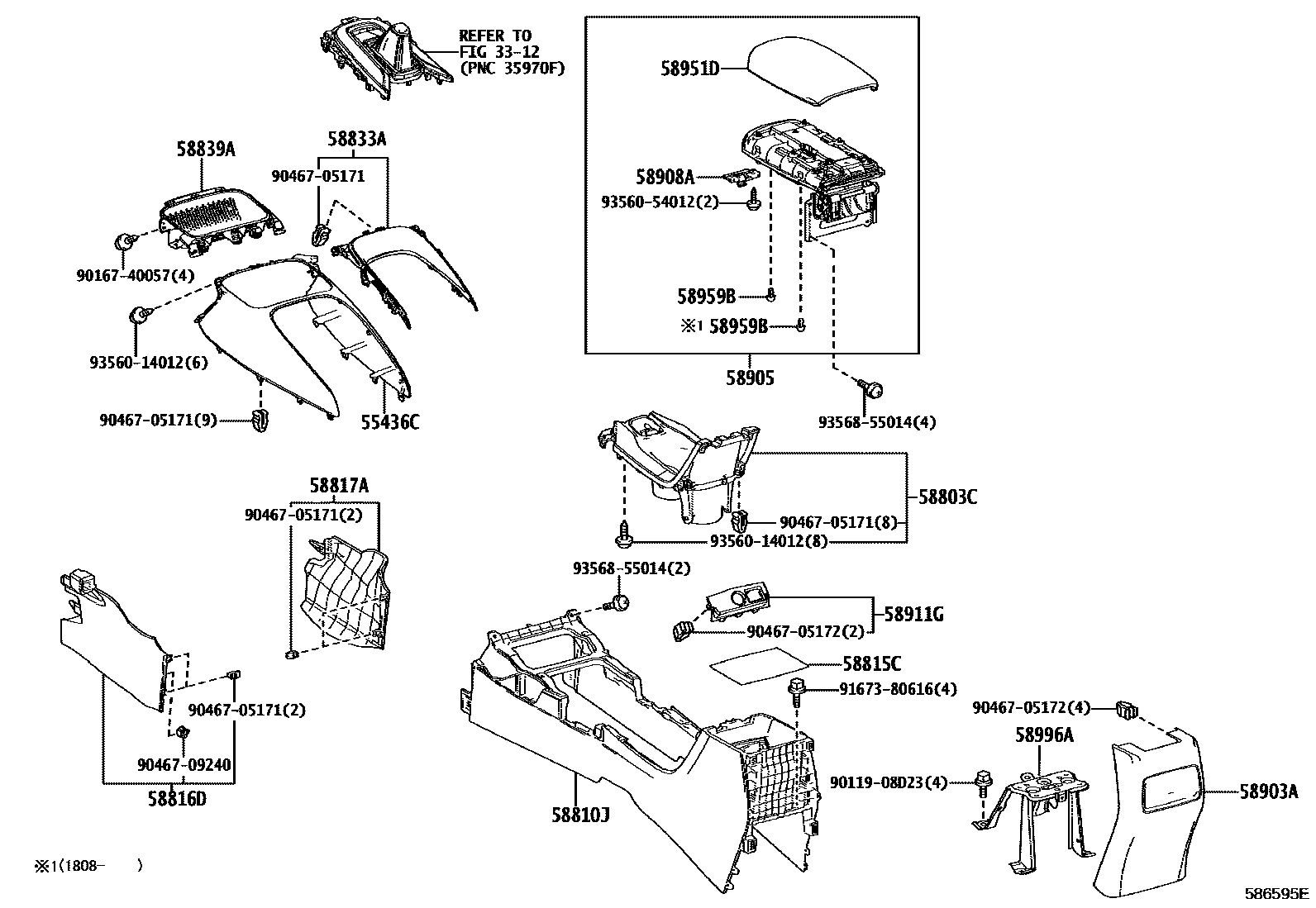

CONSOLE BOX & BRACKET
3312
55436CPANEL, INSTRUMENT PANEL FINISH, END LH
BLACK,TRIM2#
SEAT HEATER-WITH,BLACK,TRIM2#,3#
Z PACKAGE&DOOR ARM REST-PVC LEATHER,BLACK,TRIM2#,3#
Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK,TRIM2#,3#
Z PACKAGE&DOOR ARM REST-PVC LEATHER&SEAT COVER MATERIAL-LEATHER & SUEDE&WIRELESS CHARGER-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM2#,3#
58815CCARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
58833ACOVER, CONSOLE, UPPER
BLACK,TRIM2#
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM2#
SEAT HEATER-WITH,BLACK,TRIM2#
BLACK,TRIM2#
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE,SENSUAL RED,TRIM3#
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH&SEAT COVER MATERIAL-LEATHER & SUEDE&WIRELESS CHARGER-WITH,SENSUAL RED,TRIM3#
SEAT HEATER-WITH,SENSUAL RED,TRIM3#
SENSUAL RED,TRIM3#
58839ACOVER, CONSOLE BOX HOLE
BLACK,TRIM2#,3#
BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#,3#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/GRAY DOT,TRIM2#
BLACK/RED,TRIM3#
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH,BLACK/RED,TRIM3#
DOOR ARM REST-TPU,WITH STITCH,BLACK/RED,TRIM3#
BLACK/DK.ROSE,TRIM20,3#
Z PACKAGE&DOOR ARM REST-PVC LEATHER,BLACK/DK.ROSE,TRIM3#
BLACK/GRAY,TRIM2#
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH,BLACK/GRAY,TRIM2#
DOOR ARM REST-TPU,WITH STITCH,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM20
Z PACKAGE&DOOR ARM REST-PVC LEATHER,BLACK/GRAY,TRIM2#
BLACK / GRAY DOT,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911GPANEL, BOX, NO.1
BLACK,TRIM2#,3#
BLACK,TRIM2#
58951DDOOR, CONSOLE COMPARTMENT, OUTER
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH,BLACK/RED,TRIM3#
DOOR ARM REST-TPU,WITH STITCH,BLACK/RED,TRIM3#
BLACK/RED,TRIM3#
BLACK,TRIM20,3#
Z PACKAGE&DOOR ARM REST-PVC LEATHER,BLACK,TRIM3#
DOOR ARM REST-TPU,WITH STITCH,BLACK,TRIM2#
BLACK,TRIM20
Z PACKAGE&DOOR ARM REST-PVC LEATHER,BLACK,TRIM2#
Z PACKAGE&DOOR ARM REST-TPU,WITH STITCH,BLACK,TRIM2#
BLACK,TRIM2#
BLACK / GRAY DOT,TRIM2#
BLACK / GRAY DOT,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9011908D23
main90119-08D23
9016740057
main90167-40057
9046705171
main90467-05171
9046705172
main90467-05172
9046709240
main90467-09240
9167380616
main91673-80616
9356014012
main93560-14012
9356054012
main93560-54012
9356855014
main93568-55014
25 parts on this diagram · 5 diagrams in section
