HOOD & FRONT FENDER

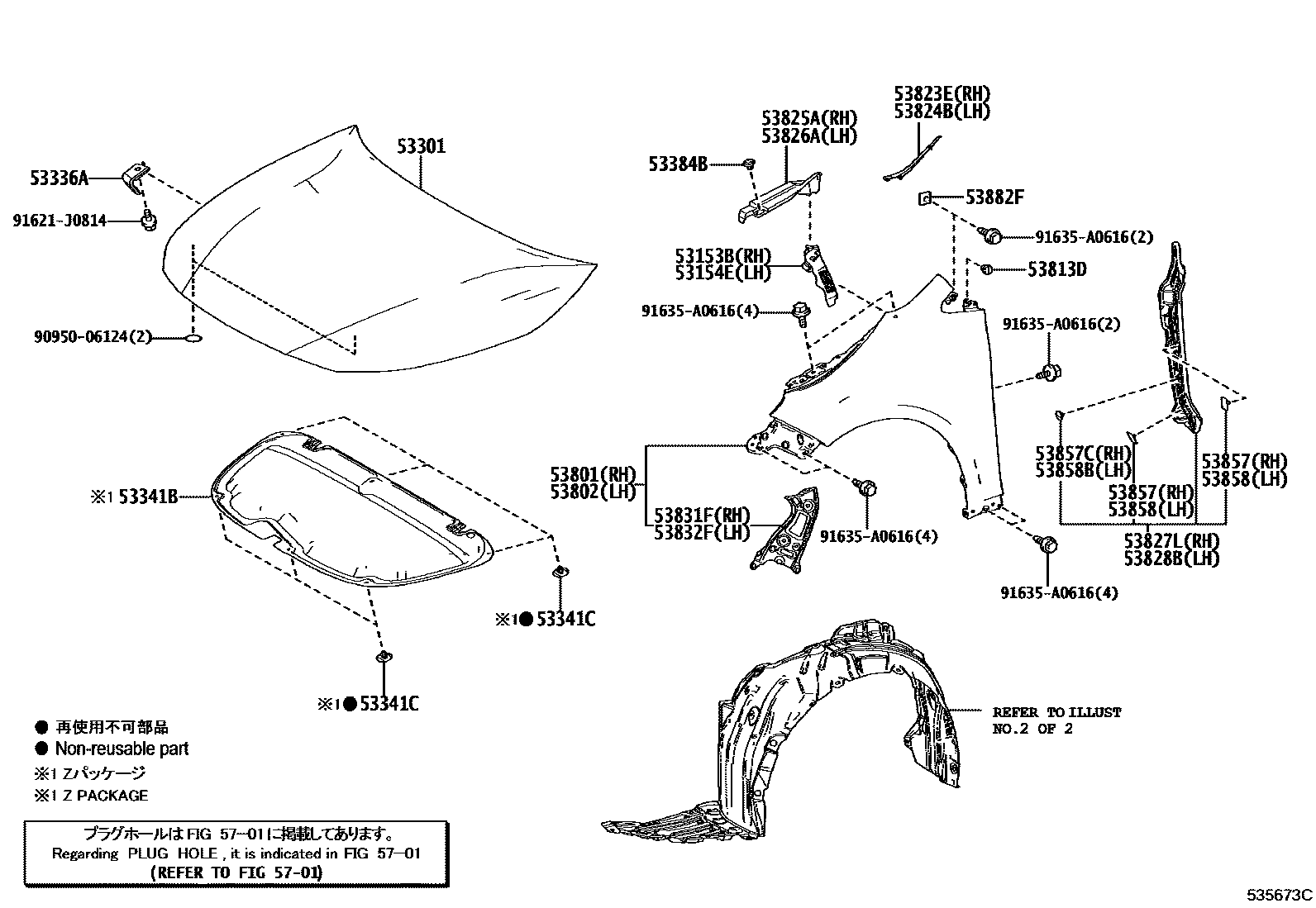

Parts diagram

53153BGUIDE, FRONT SIDE AIR

main53153-12040i201806-202508

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-12030i201806-202508

53301HOOD SUB-ASSY

main53301-12B50i201806-202102

W/O(PNC 53301B)

main53301-12B70i202102-202508

W(PNC 53301B)

53336ABRACKET, HOOD STAY

main53336-12020i201806-202102

main53336-12030i202102-202508

53341BINSULATOR, HOOD

53341CCLIP(FOR HOOD INSULATOR)

53384BCUSHION, HOOD, CENTER

main53384-78010i201806-202508

53801FENDER SUB-ASSY, FRONT RH

main53801-12B10i201806-202508

53802FENDER SUB-ASSY, FRONT LH

main53802-12B10i201806-202508

53813DEXTENSION, FRONT FENDER

main53813-47040i201806-202508

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12060i201806-202508

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12050i201806-202508

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12100i201806-202508

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12080i201806-202508

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12150i201806-202508

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12150i201806-202508

53831FPANEL, FRONT FENDER SIDE, RH

main53831-12360i201806-202508

53832FPANEL, FRONT FENDER SIDE, LH

main53832-12360i201806-202508

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010i201806-202508

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011i201806-202508

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010i201806-202508

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011i201806-202508

53882FSEAL, FRONT FENDER

main53882-33060i201806-202508

5701HOLE PLUG

→ Go to FIG 57-01

9095006124

main90950-06124

91621J0814

main91621-J0814

91635A0616

main91635-A0616

27 parts on this diagram · 3 diagrams in section
