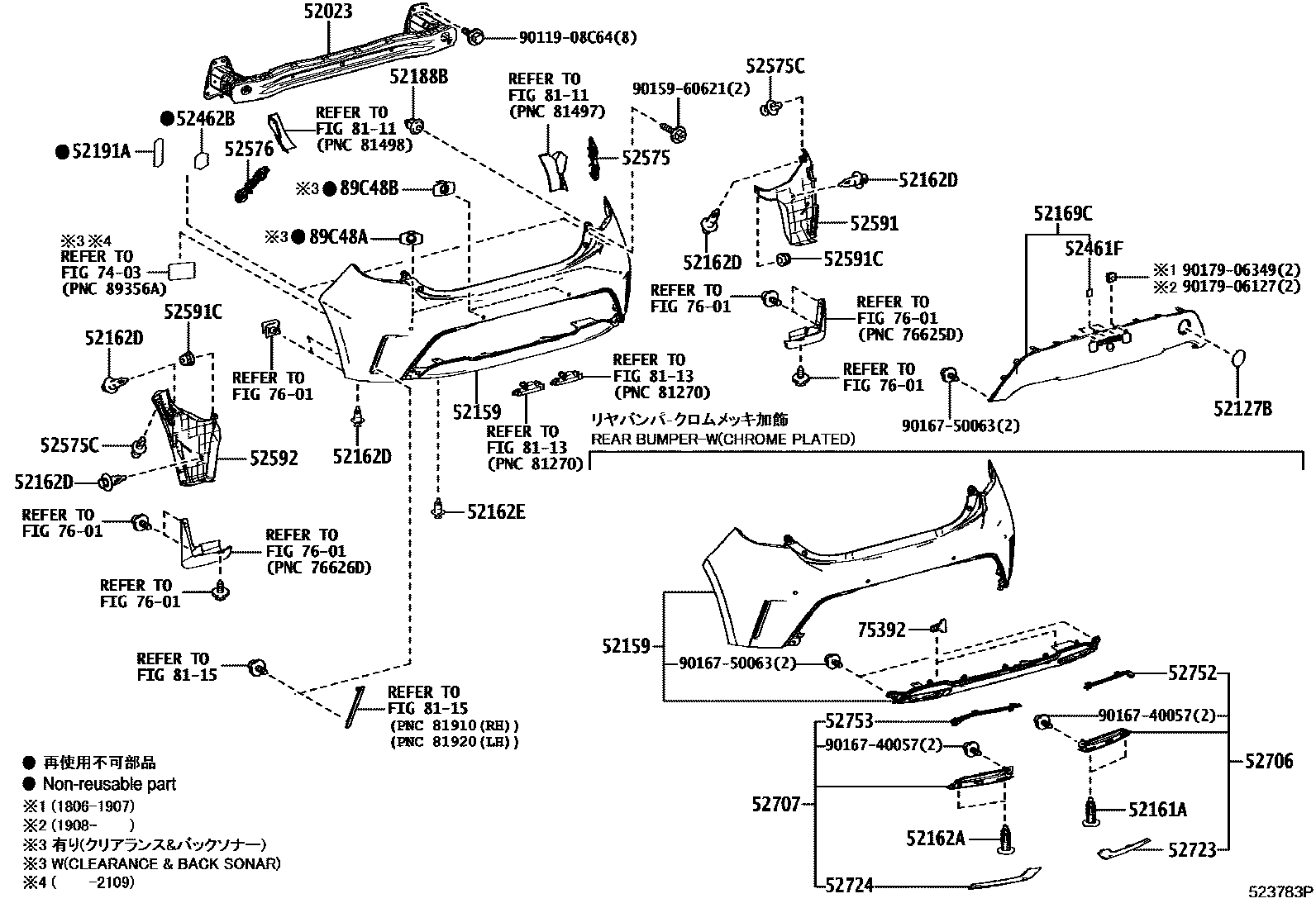

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52127BCOVER, REAR BUMPER HOLE, RH
52159COVER, REAR BUMPER
PAINT REQ.
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
PAINT REQ.,REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
PAINT REQ.,Z PACKAGE&MUD GUARD-WITH(FRONT & REAR)
52161APIECE, REAR BUMPER, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
52162APIECE, REAR BUMPER, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
52162DPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.,Z PACKAGE&MUD GUARD-WITH(FRONT & REAR); NO PAINT REQ.,Z PACKAGE&MUD GUARD-WITH(FRONT & REAR)&CLEARANCE & BACK SONAR-WITHOUT
52188BSPACER, REAR BUMPER MOUNTING
52191ASEAL, REAR BUMPER ARM
52461FPAD, REAR BUMPER
52462BPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
52592SEAL, REAR BUMPER SIDE, LH
52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
52723MOULDING, REAR BUMPER EXTENSION, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
52724MOULDING, REAR BUMPER EXTENSION, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
52752MOULDING, REAR BUMPER SIDE, RH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
52753MOULDING, REAR BUMPER SIDE, LH
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
7403CAUTION PLATE (EXTERIOR & INTERIOR)
75392RETAINER, OUTSIDE MOULDING
REAR BUMPER-W(REINFORCEMENT) & W(CHROME PLATED)
7601MUDGUARD & SPOILER
8111REAR COMBINATION LAMP
8113REAR LICENSE PLATE LAMP
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
GRAY ME.,1G3 ,2QZ
SILVER ME.,1F7 ,2UF
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040; SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT,PLATINUM WHITE PEARL MC.,089 ,2PS; PLATINUM WHITE PEARL MC.,089 ,2PS
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1F7 ,2UF; SILVER ME.,1F7 ,2UF
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3 ,2QZ; GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,2XM ,3U9
CLEARANCE & BACK SONAR-WITHOUT,ORANGE M.M.,4Y8; ORANGE M.M.,4Y8
CLEARANCE & BACK SONAR-WITHOUT,DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,2RC ,8W7
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040; SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT,PLATINUM WHITE PEARL MC.,089 ,2PS; PLATINUM WHITE PEARL MC.,089 ,2PS
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1F7 ,2UF; SILVER ME.,1F7 ,2UF
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3 ,2QZ; GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,2XM ,3U9
CLEARANCE & BACK SONAR-WITHOUT,ORANGE M.M.,4Y8; ORANGE M.M.,4Y8
CLEARANCE & BACK SONAR-WITHOUT,DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,2RC ,8W7
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7 ,2UF
GRAY ME.,1G3 ,2QZ
ATTITUDE BLACK MC.,218
EMOTIONAL RED 3,2XM ,3U9
ORANGE M.M.,4Y8
DK.BLUE M.M.,2RC ,8W7
9011908C64
main90119-08C64
9015960621
main90159-60621
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
9017906349
main90179-06349
38 parts on this diagram · 3 diagrams in section
