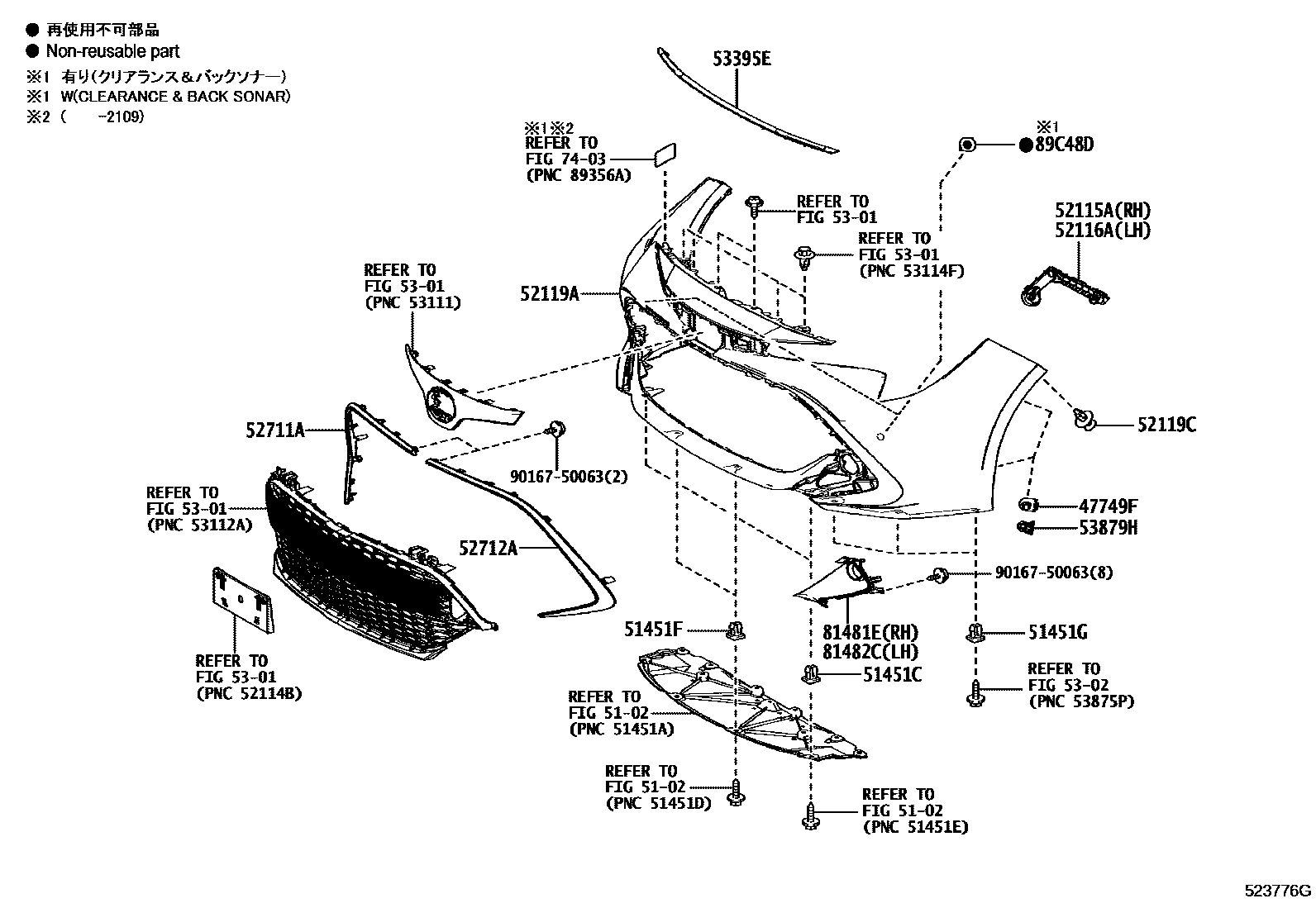

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102SUSPENSION CROSSMEMBER & UNDER COVER
51451CGROMMET(FOR ENGINE UNDER COVER)
51451FGROMMET, NO.1
51451GGROMMET, NO.2
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52711AGARNISH, FRONT BUMPER
Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEATHEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&FRONT FOG & DRIVING LAMP-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWERSEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&FRONT FOG & DRIVING LAMP-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&FRONT FOG & DRIVING LAMP-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH
52712AGARNISH, FRONT BUMPER, LH
X PACKAGE
Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEATHEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&FRONT FOG & DRIVING LAMP-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWERSEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&*AVS-WITH&FRONT FOG & DRIVING LAMP-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH; Z PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER&FRONT FOG & DRIVING LAMP-WITH&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&FRONT SEAT-WITH(*DRS:POWER SEAT & *PAS:MANUAL SEAT)&SEAT HEATER-WITH
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53395ESEAL, HOOD TO FRONT END PANEL
53879HRETAINER, FRONT FENDER LINER
7403CAUTION PLATE (EXTERIOR & INTERIOR)
81481ECOVER, FOG LAMP, RH
X PACKAGE
X PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
81482CCOVER, FOG LAMP, LH
X PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
ATTITUDE BLACK MC.,218,LH
BLACKISH AGEHA GF.,221,LH
SUPER WHITE 2,040,LH
PLATINUM WHITE PEARL MC.,089 ,2PS,LH
SILVER ME.,1F7 ,2UF,LH
GRAY ME.,1G3 ,2QZ,LH
CYAN METALLIC,2UH ,8W9,LH
EMOTIONAL RED 3,2XM ,3U9,LH
ATTITUDE BLACK MC.,218,RH
BLACKISH AGEHA GF.,221,RH
SUPER WHITE 2,040,RH
PLATINUM WHITE PEARL MC.,089 ,2PS,RH
SILVER ME.,1F7 ,2UF,RH
GRAY ME.,1G3 ,2QZ,RH
CYAN METALLIC,2UH ,8W9,RH
EMOTIONAL RED 3,2XM ,3U9,RH
SUPER WHITE 2,040,LH
PLATINUM WHITE PEARL MC.,089 ,2PS,LH
SILVER ME.,1F7 ,2UF,LH
GRAY ME.,1G3 ,2QZ,LH
ATTITUDE BLACK MC.,218,LH
EMOTIONAL RED 3,2XM ,3U9,LH
ORANGE M.M.,4Y8,LH
DK.BLUE M.M.,2RC ,8W7,LH
SUPER WHITE 2,040,RH
PLATINUM WHITE PEARL MC.,089 ,2PS,RH
SILVER ME.,1F7 ,2UF,RH
GRAY ME.,1G3 ,2QZ,RH
ATTITUDE BLACK MC.,218,RH
EMOTIONAL RED 3,2XM ,3U9,RH
ORANGE M.M.,4Y8,RH
DK.BLUE M.M.,2RC ,8W7,RH
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040,LH; SUPER WHITE 2,040,LH
CLEARANCE & BACK SONAR-WITHOUT,PLATINUM WHITE PEARL MC.,089 ,2PS,LH; PLATINUM WHITE PEARL MC.,089 ,2PS,LH
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1F7 ,2UF,LH; SILVER ME.,1F7 ,2UF,LH
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3 ,2QZ,LH; GRAY ME.,1G3 ,2QZ,LH
ATTITUDE BLACK MC.,218,LH; CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218,LH
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 3,2XM ,3U9,LH; EMOTIONAL RED 3,2XM ,3U9,LH
CLEARANCE & BACK SONAR-WITHOUT,ORANGE M.M.,4Y8,LH; ORANGE M.M.,4Y8,LH
CLEARANCE & BACK SONAR-WITHOUT,DK.BLUE M.M.,2RC ,8W7,LH; DK.BLUE M.M.,2RC ,8W7,LH
SUPER WHITE 2,040,RH
PLATINUM WHITE PEARL MC.,089 ,2PS,RH
SILVER ME.,1F7 ,2UF,RH
GRAY ME.,1G3 ,2QZ,RH
ATTITUDE BLACK MC.,218,RH
EMOTIONAL RED 3,2XM ,3U9,RH
ORANGE M.M.,4Y8,RH
DK.BLUE M.M.,2RC ,8W7,RH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),WHITE PEARL CS.,070 ,2QJ,LH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SCARLET ME.,2UG ,3U4,LH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),EMOTIONAL RED 2,2SC ,3U5,LH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),OXIDE BRONZE ME.,2UD ,6X1,LH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),WHITE PEARL CS.,070 ,2QJ,RH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SCARLET ME.,2UG ,3U4,RH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),EMOTIONAL RED 2,2SC ,3U5,RH
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),OXIDE BRONZE ME.,2UD ,6X1,RH
9016750063
main90167-50063
20 parts on this diagram · 4 diagrams in section
