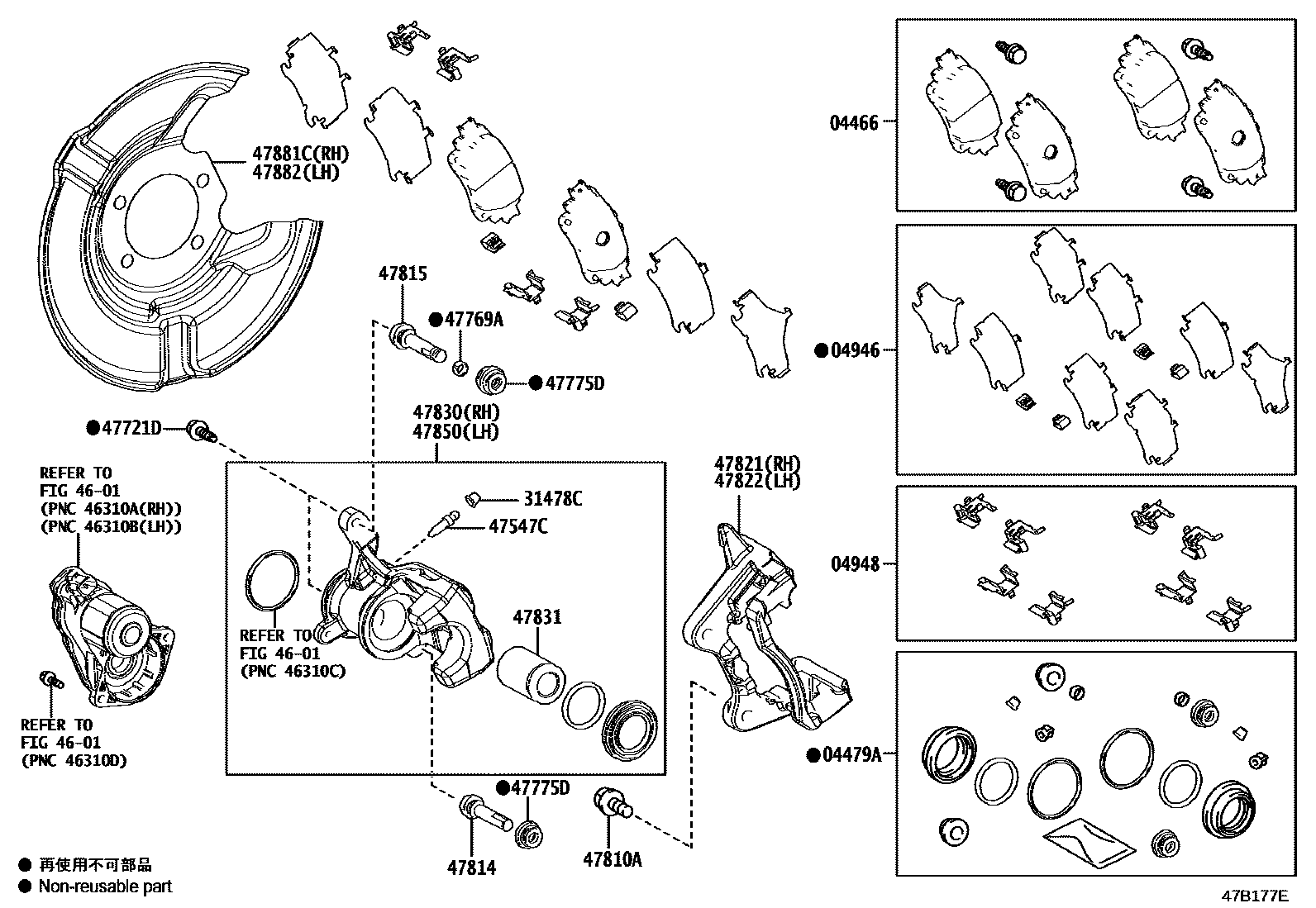

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12162iMZEA12,NRE210,ZWE211201806

MARK NBK D6360-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iMZEA12..CVT201806-202209

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12130iMZEA12..CVT201806-202209

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iMZEA12,NRE210,ZWE211201806-201905

main04948-12071iMZEA12..CVT201905-202209

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMZEA12..CVT201806-202209

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMZEA12..CVT201806-202209

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iMZEA12..CVT201806-202209

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iMZEA12..CVT201806-202209

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270×4iMZEA12..CVT201806-202209

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMZEA12..CVT201806-202209

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iMZEA12..CVT201806-202209

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iMZEA12..CVT201806-202209

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12280iMZEA12..CVT201806-202209

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-12280iMZEA12..CVT201806-202209

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12280iMZEA12..CVT201806-202209

47831PISTON, REAR DISC BRAKE

main47831-10030×2iMZEA12..CVT201806-202209

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12280iMZEA12..CVT201806-202209

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-12130iMZEA12..CVT201806-202209

47882COVER, DISC BRAKE DUST, REAR LH

main47882-12130iMZEA12..CVT201806-202209

20 parts on this diagram · 1 diagram in section
