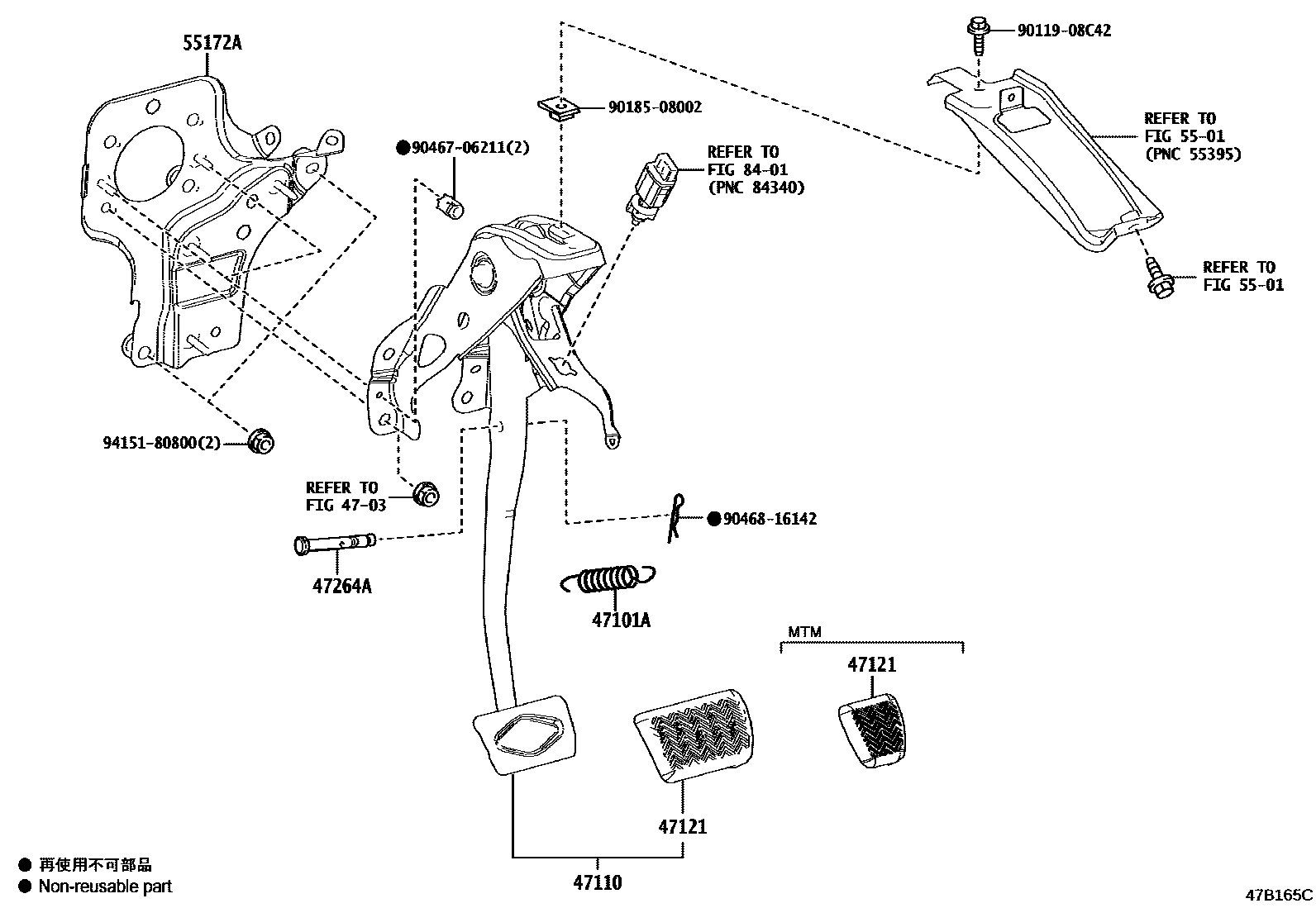

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15009iZWE211201806

main90507-15010iMZEA12..CVT201806-202209

47110SUPPORT ASSY, BRAKE PEDAL

main47110-12390iMZEA12..TAIW201806-202209

main47110-12391iMZEA12..TAIW202402

main47110-12420iNRE210..CVT201806

main47110-12421iMZEA12..ARL202402-202508

main47110-12430iMZEA12,NRE210..6F201806

main47110-12510iZWE219202209

main47110-47070iZWE211201806-202206

main47110-76090iZWE211202207

47121PAD, BRAKE PEDAL

main47121-12040iMZEA12,NRE210..6F201806

main47121-16020iZWE211202207

main47121-47010iMZEA12202209-202402

47264APIN(FOR PUSH ROD)

main90249-08221iNRE210;MZEA12..6F201806

main90249-08309iZWE211201806

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12160iMZEA12..TAIW202209-202411

main55172-12161iMZEA12..TAIW202411

main55172-12170iMZEA12..6F;NRE210,ZWE211201806

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

13 parts on this diagram · 3 diagrams in section
