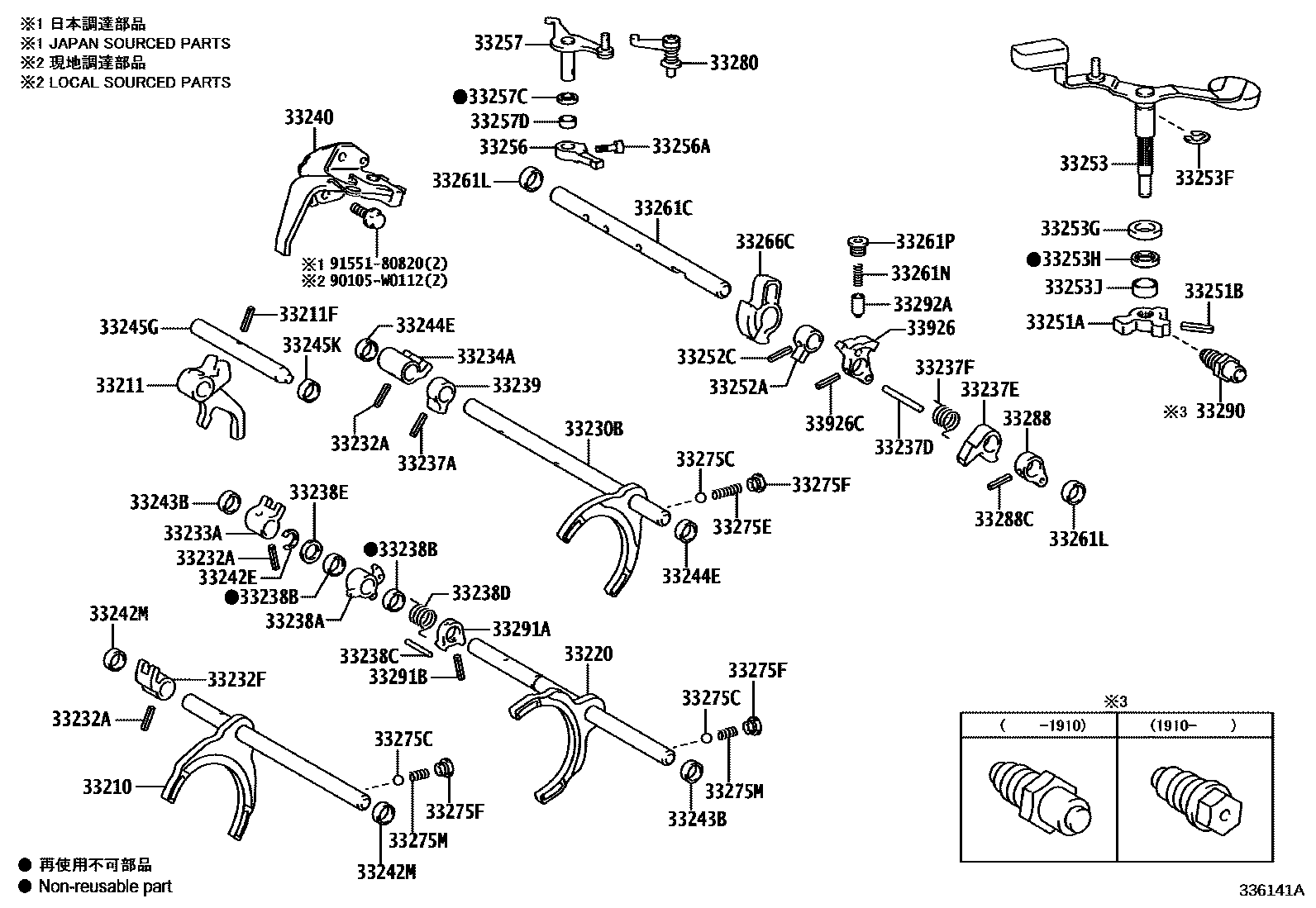

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33211FPIN, SLOTTED SPRING(FOR REVERSE SHIFT FORK)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33237APIN, SLOTTED SPRING (FOR RELEASE HEAD)
33237DPIN, STRAIGHT(FOR RELEASE HEAD)
33237EHEAD, REVERSE PRE-BALK, NO.1
33237FSPRING, TORSION(FOR REVERSE PRE-BALK HEAD NO.1)
33238AHEAD, REVERSE PRE-BALK, NO.2
33238BBUSH, BIMETAL FORMED(FOR REVERSE PRE-BALK HEAD NO.2)
33238CPIN, STRAIGHT(FOR REVERSE PRE-BALK HEAD NO.2)
33238DSPRING, TORSION(FOR REVERSE PRE-BALK HEAD NO.2)
33238ESPACER(FOR REVERSE PRE-BALK HEAD NO.2)
33239HEAD, REVERSE PRE-BALK, NO.3
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33242MBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.1)
33243BBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.2)
33244EBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.3)
33245KBUSH, BIMETAL FORMED(FOR GEAR SHIFT FORK SHAFT NO.4)
33251ALEVER, SHIFT, INNER NO.1
(L)
(J)
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
33253FRING, E(FOR SHIFT OUTER LEVER)
33253GSPACER(FOR SHIFT OUTER LEVER)
33253HSEAL, OIL(FOR SHIFT OUTER LEVER)
33253JBUSH(FOR SHIFT OUTER LEVER)
33256ABOLT, SET (FOR SELECT INNER LEVER)
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33257DBUSH, BIMETAL FORMED(FOR OUTER SELECT LEVER)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33261NSPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)
33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33280PIN ASSY, REVERSE RESTRICT
33288BLOCK, SELECT STOPPER
33288CPIN, SLOTTED SPRING(FOR SELECT STOPPER BLOCK)
33291ASTOPPER, SHIFT FORK SHAFT
33291BPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER)
33926LEVER, SHIFT INNER, FRONT
33926CPIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)
90105W0112
main90105-W0112
9155180820
main91551-80820
61 parts on this diagram · 2 diagrams in section
