TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

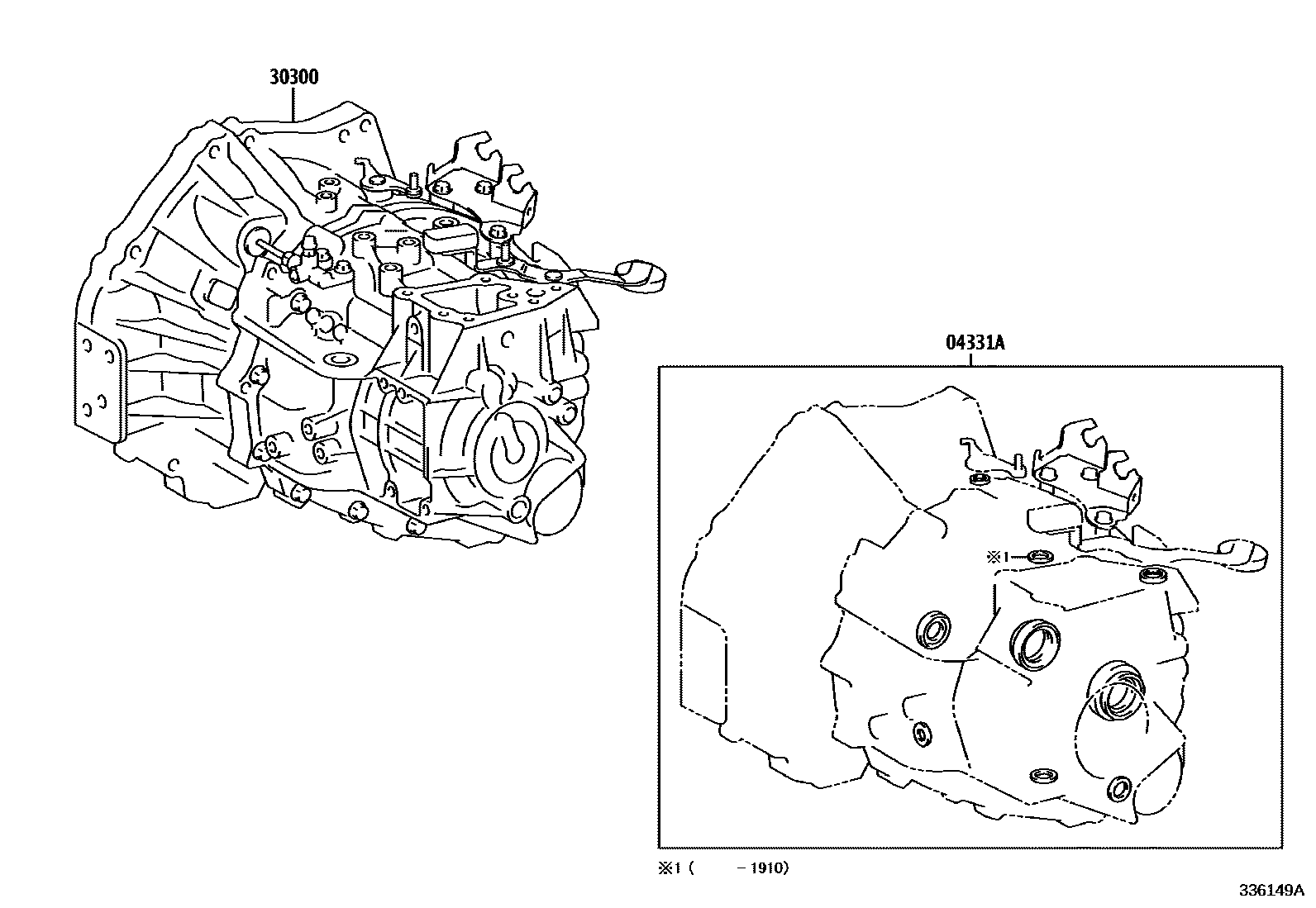

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-0F011i201806-201910

main04331-0F020i201910

main04331-12840i201806

30300TRANSAXLE ASSY, MANUAL

main30300-02460i201806-201910

EC6A,REFER TO PNC 33403K

main30300-02461i201910

EC6A,REFER TO PNC 33403K

main30300-12J10i201806

EG60

2 parts on this diagram · 2 diagrams in section
