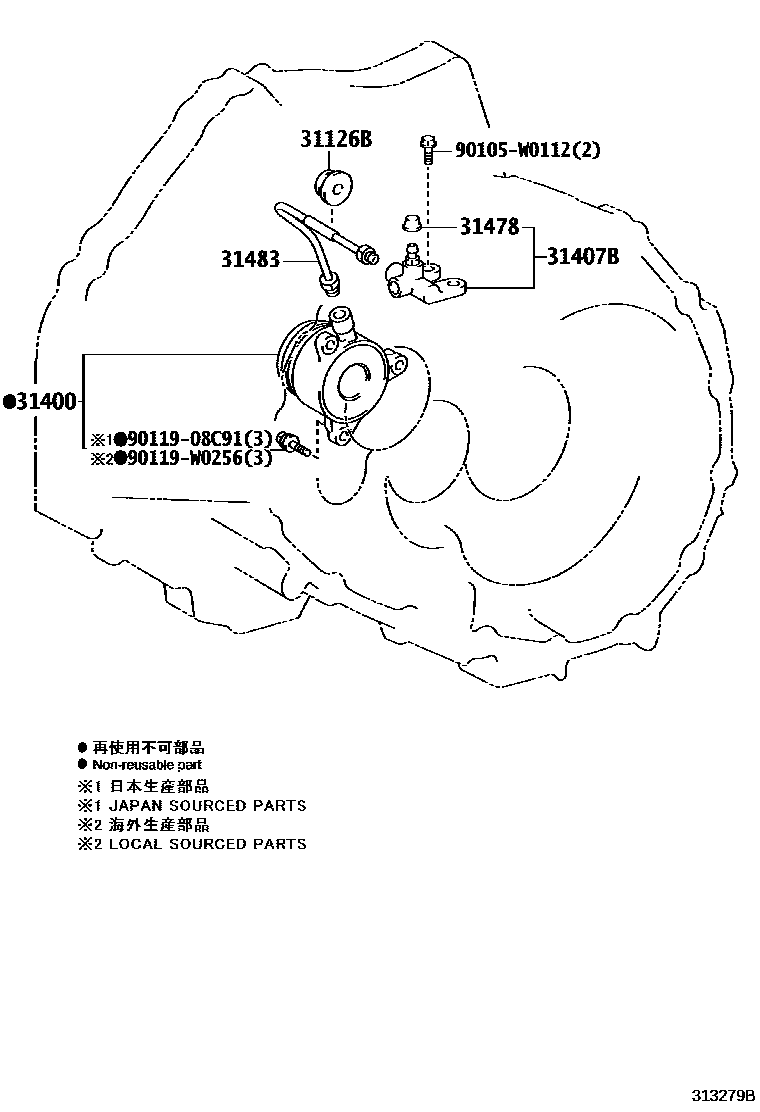

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31126BBOOT, CLUTCH TUBE

main31126-05010iNRE210..6F201806

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-09001iNRE210..6F201806-202211

main31400-19025iMZEA12..6F201806-202111

main31400-19026iMZEA12..6F202111

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-12010iMZEA12..6F201806

main31407-52010iNRE210..6F201806

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iMZEA12,NRE210..6F201806

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-05130iNRE210..6F201806

90105W0112

main90105-W0112

9011908C91

main90119-08C91

90119W0256

main90119-W0256

8 parts on this diagram · 2 diagrams in section
