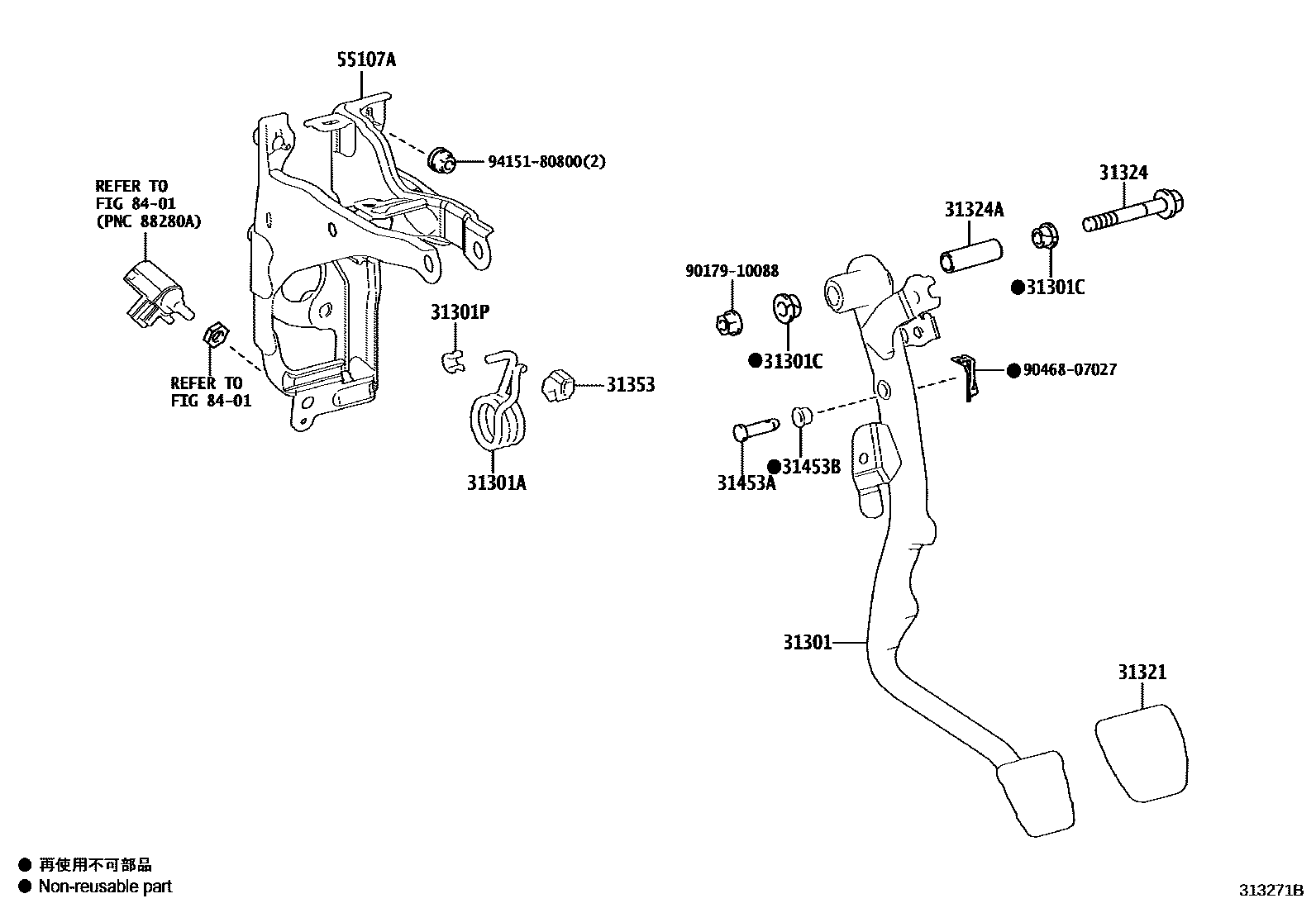

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02600iMZEA12,NRE210..6F201806

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iMZEA12,NRE210..6F202104

main90949-03068iMZEA12,NRE210..6F201806-202103

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iMZEA12,NRE210..6F201806

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iMZEA12,NRE210..6F201806

31321PAD, CLUTCH PEDAL

main31321-42010iMZEA12,NRE210..6F201806

31324SHAFT, CLUTCH PEDAL

main90105-10524iMZEA12,NRE210..6F201806

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMZEA12,NRE210..6F201806

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iMZEA12,NRE210..6F201806

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08078iMZEA12,NRE210..6F201806

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iMZEA12,NRE210..6F201806

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02510iMZEA12,NRE210..6F201806

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910088

main90179-10088

9046807027

main90468-07027

9415180800

main94151-80800

15 parts on this diagram · 3 diagrams in section
