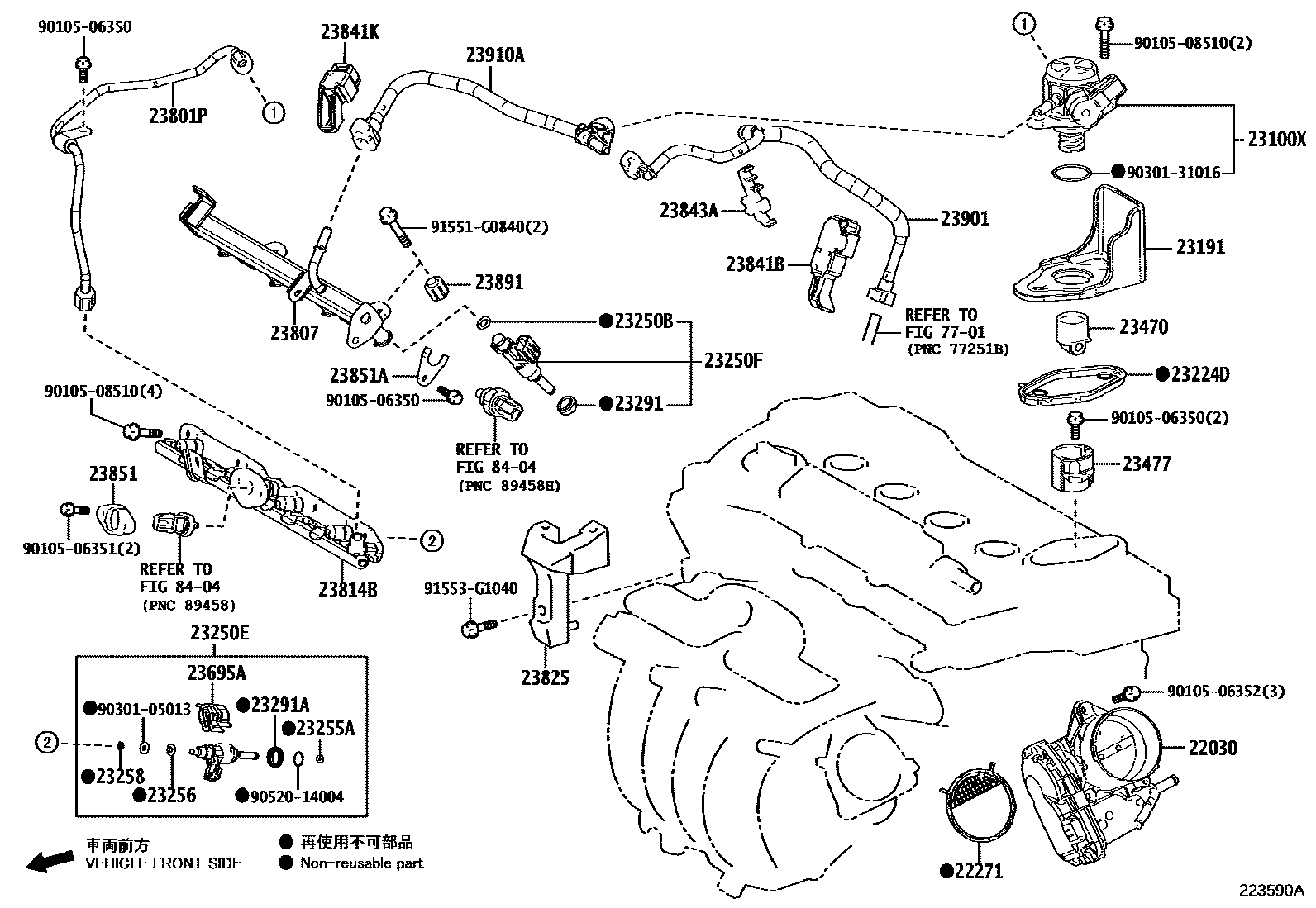

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0T060i202209

(L)

main22030-24010i201806

main22030-37060i202209

(J)

main22030-47080i201806

22271GASKET, THROTTLE BODY

main22271-24010i202209

main22271-37020i201806

main22271-47060i201806

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202209-202508

main23101-47020i201806

23191FLANGE, FUEL PUMP

main23191-25050i201806-202209

23224DGASKET, FUEL PUMP SPACER

main23224-25010i201806-202106

main23224-25011i202107-202209

main23224-47010i201806

23250INJECTOR ASSY, FUEL

main23209-39295×4i201806

main23209-47100-01×4i201806

MARK 1,REFER REPAIR MANUAL

main23209-47100-02×4i201806

MARK 2,REFER REPAIR MANUAL

main23209-47100-03×4i201806

MARK 3,REFER REPAIR MANUAL

main23209-47100-04×4i201806

MARK 4,REFER REPAIR MANUAL

main23209-47100-05×4i201806

MARK 5,REFER REPAIR MANUAL

main23209-47100-06×4i201806

MARK 6,REFER REPAIR MANUAL

main23209-47100-07×4i201806

MARK 7,REFER REPAIR MANUAL

main23209-47100-08×4i201806

MARK 8,REFER REPAIR MANUAL

main23209-47100-09×4i201806

MARK 9,REFER REPAIR MANUAL

23250BRING, O(FOR FUEL INJECTOR)

main90301-05013×4i201806

main90301-07037×4i202209

(J)

main90301-C0072×4i202209-202508

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i201806-202209

MARK 1,REFER REPAIR MANUAL

main23209-24010-02×4i201806

MARK 2,REFER REPAIR MANUAL

main23209-24010-03×4i202209

MARK 3,REFER REPAIR MANUAL

main23209-24010-04×4i201806-202209

MARK 4,REFER REPAIR MANUAL

main23209-24010-05×4i201806-202209

MARK 5,REFER REPAIR MANUAL

main23209-24010-06×4i201806-202209

MARK 6,REFER REPAIR MANUAL

main23209-24010-07×4i202209-202508

MARK 7,REFER REPAIR MANUAL

main23209-24010-08×4i201806-202209

MARK 8,REFER REPAIR MANUAL

main23209-24010-09×4i201806

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115×4i202209-202508

main23209-29165×4i201907-202209

23255ASEAL, FUEL INJECTOR

main23255-25010×4i201806-202209

main23255-31020×4i201806-201901

main23255-31030×4i201902

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202209

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-36010×4i201806

main23258-47010×4i202209-202508

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i202209

TYPE A:REFER ILLUST.

main23291-28020×4i201806

TYPE B:REFER ILLUST.

main23291-31020×4i201806

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202209

23470LIFTER ASSY, FUEL PUMP

main23470-25010i202209-202508

main23470-36020i201806

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i201806

main23477-47010i201806

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i202209

main23695-70010×4i201806

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202209-202508

main23801-47030i201806

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i201806

main23814-37100i202209

23814BPIPE, FUEL DELIVERY

main23800-47030i201806

main23814-24010i201806-202210

main23814-24011i202211

23825GUARD, FUEL DELIVERY

main23825-24010i202209-202508

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-24040i202209

main23841-37081i201806

main23841-37090i201806

main23841-37160i202209

23841KCLAMP, FUEL PIPE

main23841-25040i202209-202508

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010i201806-202209

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202209-202508

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i201806

23891SPACER, FUEL DELIVERY

main23891-24010×2i202209-202508

23901TUBE SUB-ASSY, FUEL

main23901-24010i201806-201901

main23901-24011i202209-202508

main23901-24021i202107-202209

main23901-37270i201806

main23901-37350i202209

main23901-47110i201806-201901

main23901-47111i201902

23910ATUBE SUB-ASSY, FUEL

main23901-24070i201806-201902

main23901-24071i201903-202209

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040
