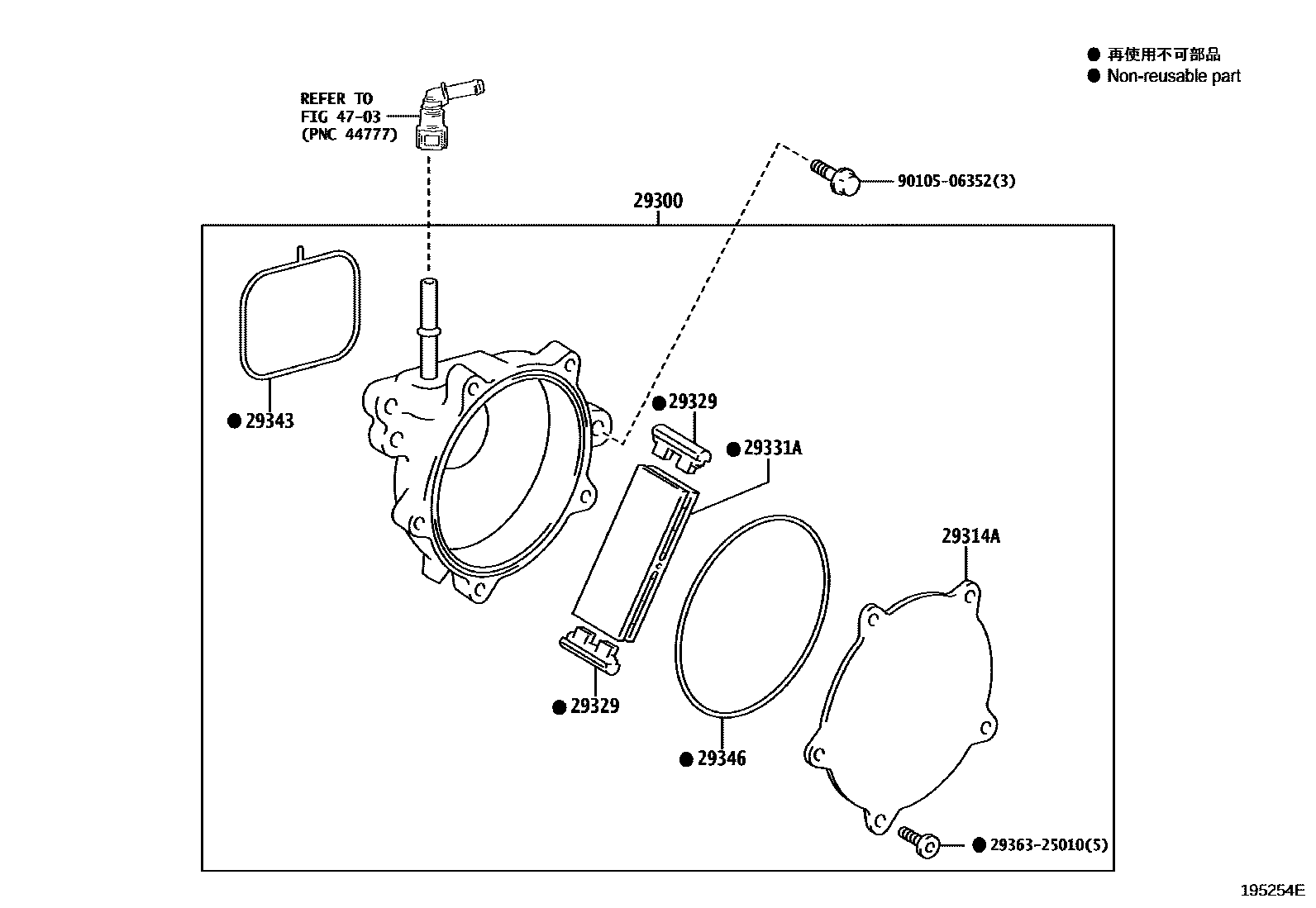

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MZEA12..6F201806

main29300-47050i8NRFTS..NRE210201806

29314ACOVER, END

main29314-25010iM20AFKS..MZEA12..ARL202209-202508

main29314-47040i8NRFTS..NRE210201806

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MZEA12..CVT201806-202209

main29329-37010×2i8NRFTS..NRE210201806

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MZEA12..CVT201806-202209

main29331-37010i8NRFTS..NRE210201806

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20AFKS..MZEA12..6F201806

main29343-47040i8NRFTS..NRE210201806

29346RING, O VACUUM PUMP COVER

main29346-25010iM20AFKS..MZEA12..ARL202209-202508

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 2 diagrams in section
