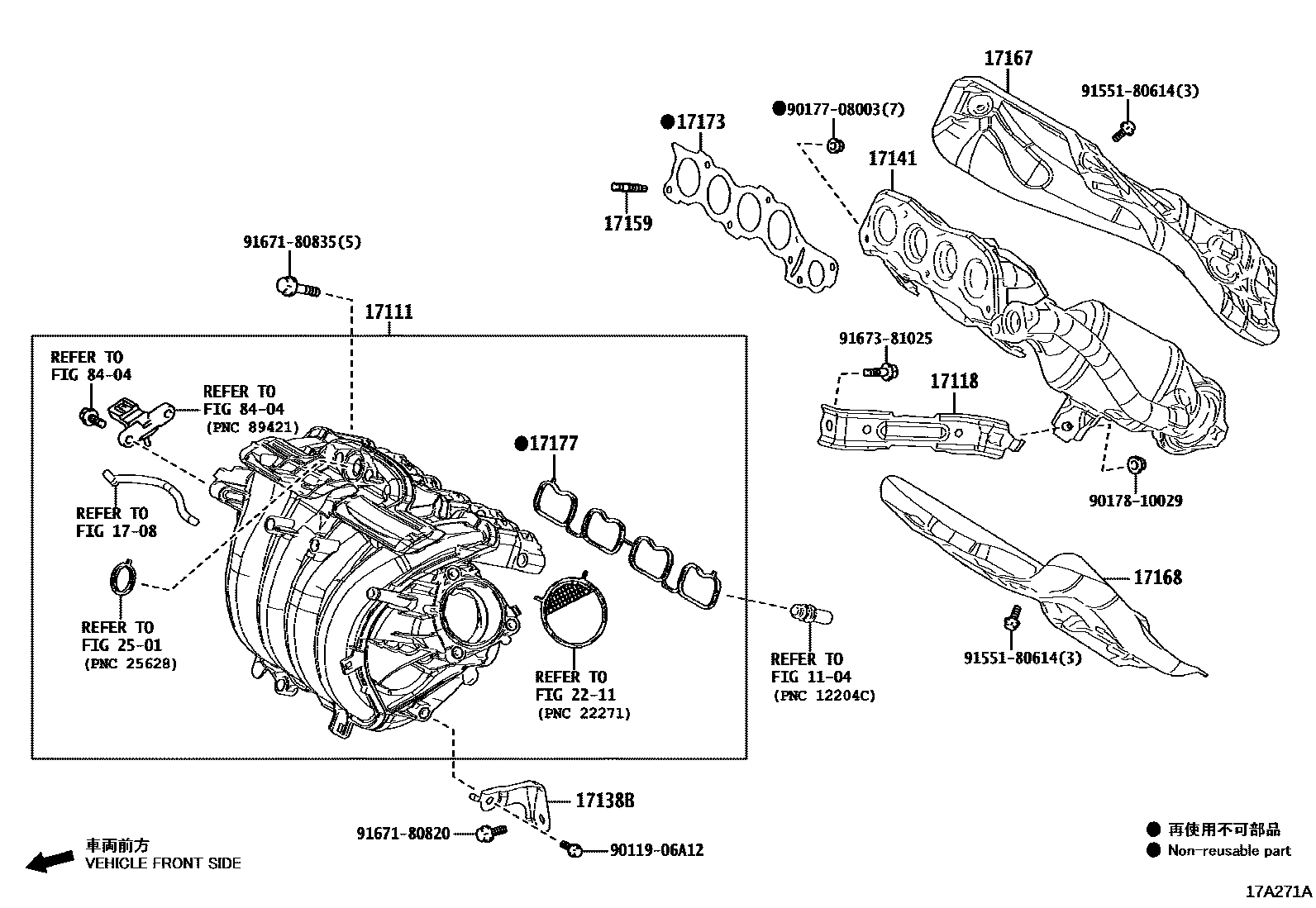

MANIFOLD
1104CYLINDER HEAD
1708VACUUM PIPING
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
17141MANIFOLD, EXHAUST
*114=TOYOTA/AT37180Y
*114=TOYOTA/AT37180Y
*114=TOYOTA/AT37290Y
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
8404ELECTRONIC FUEL INJECTION SYSTEM
9011906A12
main90119-06A12
9017708003
main90177-08003
9017810029
main90178-10029
9155180614
main91551-80614
9167180820
main91671-80820
9167180835
main91671-80835
9167381025
main91673-81025
21 parts on this diagram · 5 diagrams in section
