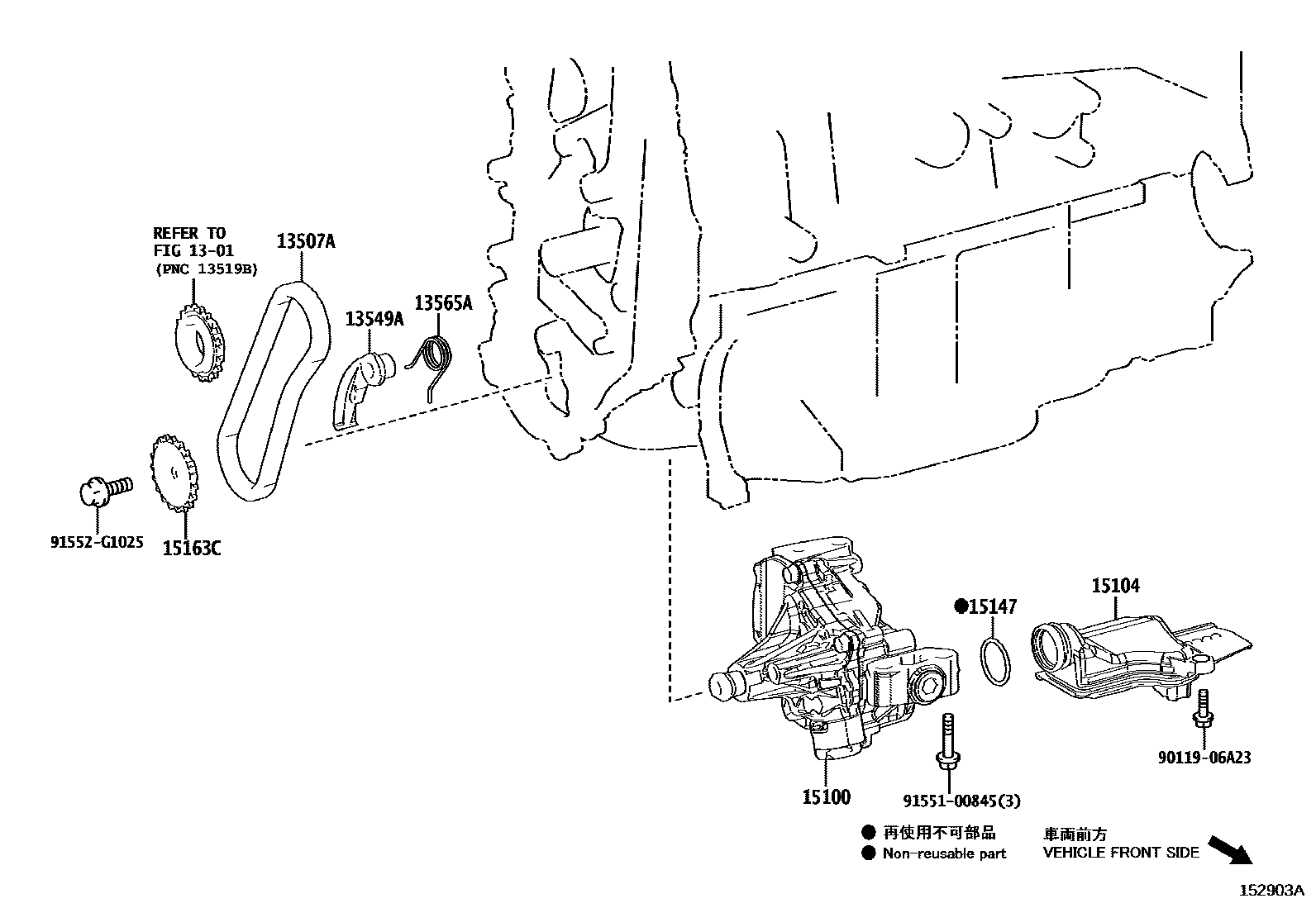

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24010iM20AFKS..MZEA12201806-201810

main13507-24020iM20AFKS..MZEA12..CVT201810-202209

13549APLATE, CHAIN TENSIONER

main13549-25020iM20AFKS..MZEA12..CVT201806-202209

13565ASPRING, CHAIN DAMPER

main13565-25010iM20AFKS..MZEA12..CVT201806-202209

15100PUMP ASSY, OIL

main15100-24020iM20AFKS..MZEA12..CVT201806-202209

main15100-37060i2ZRFXE..ZWE211201806-202107

main15100-37070i2ZRFXE..ZWE219202209

main15100-47050i8NRFTS..NRE210201806

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20AFKS..MZEA12..CVT201806-202209

15147GASKET, OIL STRAINER

main15147-25010iM20AFKS..MZEA12..CVT201806-202209

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2ZRFXE..ZWE219202209

main15163-33010i8NRFTS..NRE210201806

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20AFKS..MZEA12..ARL202209-202508

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

12 parts on this diagram · 3 diagrams in section
