AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-02C80supersedes 89170-02C90iZRE18#..6F..N..SA; ZRE18#..CVT..D..SAP; ZRE18#..CVT..N..SAP201401-201701
SRS AIR BAG-WITH(*DRS & *PAS & SIDE); VSC-WITH(W/CUT OFF SWITCH)
main89170-02D10supersedes 89170-02D20iNDE180..D..TUP;NDE180,ZRE182..6F..N;NRE180,ZRE181..6F..N..SAP201306-201701
VEHICLE STABILITY CONT-WITH(W/CUT OFF SWITCH)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & KNEE)
AIR CONDITIONER-AUTO AIR CONDITIONER; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE); VSC-WITH(W/CUT OFF SWITCH)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
AIR CONDITIONER-AUTO AIR CONDITIONER; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
SRS AIR BAG-WITH(*DRS & *PAS)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE); VEHICLE STABILITY CONT-WITH(W/CUT OFF SWITCH)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE& *CUSA & KNEE)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
AIR CONDITIONER-AUTO AIR CONDITIONER
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
90105W0093
main90105-W0093
90105W0095
main90105-W0095
9011908C89
main90119-08C89
90119W0206
main90119-W0206
90178W0019
main90178-W0019
91553A0625
main91553-A0625
9415180600
main94151-80600

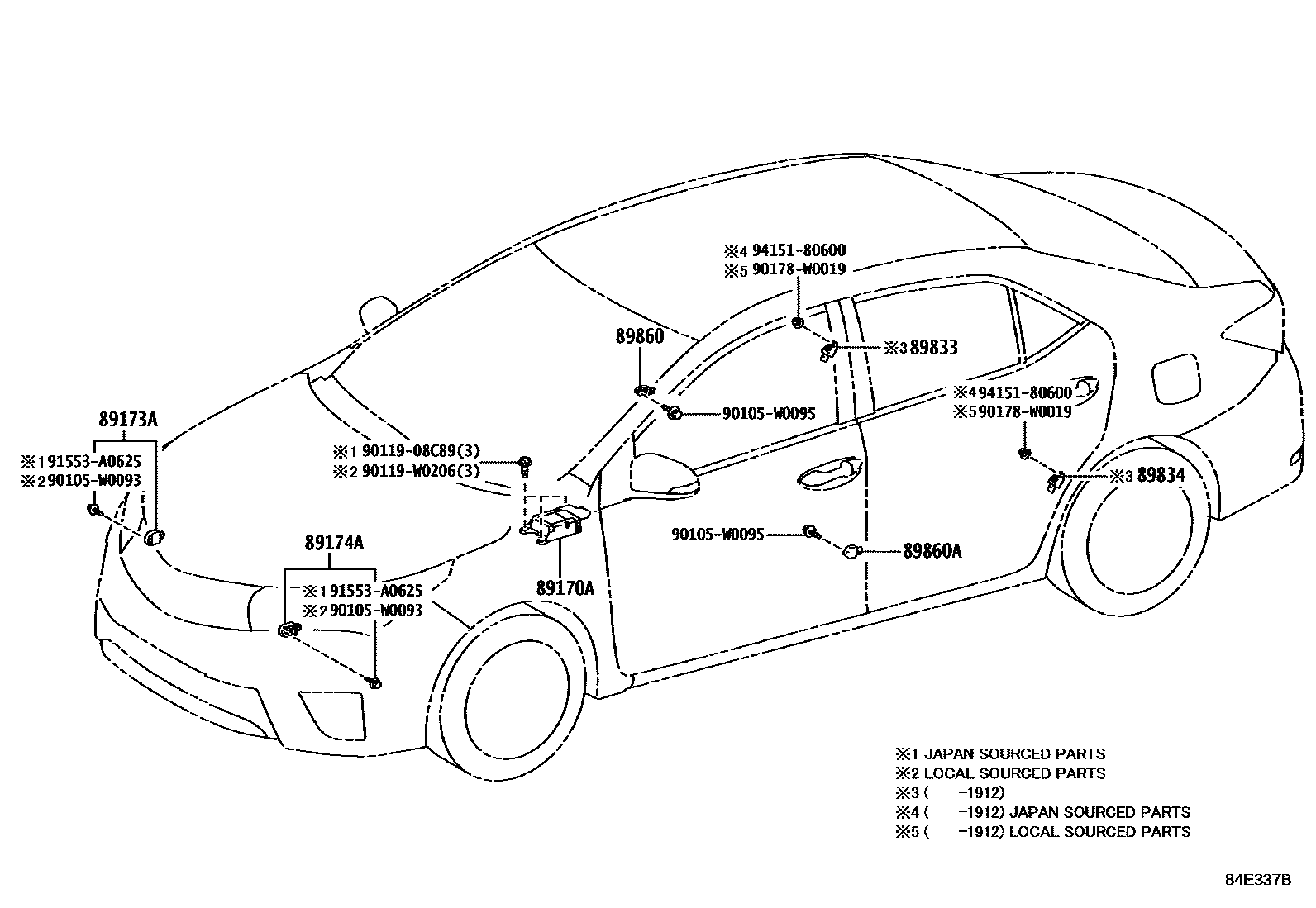

14 parts on this diagram · 1 diagram in section
