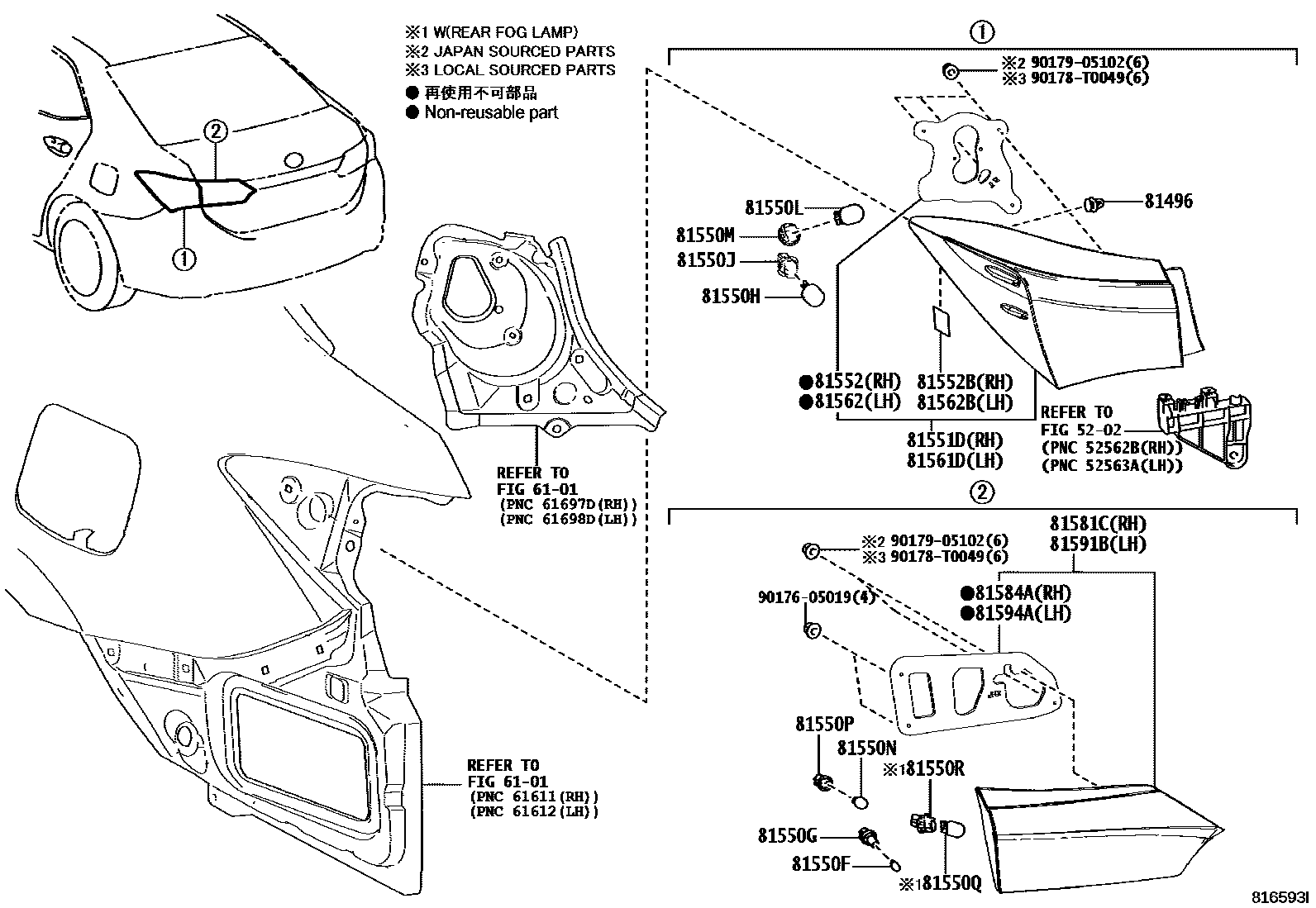

REAR COMBINATION LAMP

0001 1BULB TYPE(STOP LAMP) 0002 1LED TYPE(STOP LAMP)

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iNRE180..TUP201306-201912

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02A80iNRE180..N..TUP201606-201912

81550FBULB, TAILLAMP

main99132-12050iNDE180..TUP201306-201912

12V 5W

81550GSOCKET, TAILLAMP

main90075-60077iNDE180..TUP201306-201912

81550HBULB, TAIL & STOP LAMP

main90981-13044iNDE180..TUP201306-201912

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-60079iNDE180..TUP201306-201912

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iNDE180..TUP201306-201912

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026iNDE180..TUP201306-201912

81550NBULB, BACK UP LAMP

main90981-11059iNDE180,NRE180,ZRE18#201306-201912

12V 16W

main90981-11059iNDE180..TUP201511-201909

12V 16W,(J)

main90981-11059iZRE182..SA201912

12V 16W,REAR FOG LAMP-WITHOUT

main90981-WB019iZRE182..GEN201511-201909

12V 16W,(L)

81550PSOCKET, BACK UP LAMP

main90075-60001iNDE180,ZRE18#..TUP201306-201912

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iNRE180..TUP201306-201901

12V 21W

81550RSOCKET, REAR FOG LAMP

main90075-60003iNDE180,ZRE18#..D..TUP201306-201901

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02760iNRE180..D..TUP201306-201912

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-02760iNDE180..TUP201306-201912

main81552-02A80iNRE180..N..TUP201606-201912

81552BPACKING, REAR COMBINATION LAMP BODY, RH

main81554-02760iNDE180,NRE180,ZRE18#..SAP201306-201912

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02760iZRE182201306-201912

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-02A80iZRE182..N..SAP201606-201912

main81562-02760iNDE180,ZRE18#..D..TUP201306-201912

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81554-02760iNDE180..TUP201306-201912

81581CLENS AND BODY, REAR LAMP, RH

main81581-02520iNRE180..D..TUP201306-201901

main81581-02530iZRE182..SA201912

main81581-02540iZRE182..D..SAP;NDE180,NRE180,ZRE181..SAP201401-201912

81584AGASKET, REAR LAMP RH

main81584-02520iNDE180,NRE180,ZRE18#..SAP201306-201912

main81584-02A20iZRE182..N..SAP201606-201912

81591BLENS AND BODY, REAR LAMP, LH

main81591-02520iZRE182..SA201912

main81591-02530iNRE180..D..TUP201306-201901

main81591-02540iZRE182..D..SAP;NDE180,NRE180,ZRE181..SAP201401-201912

81594AGASKET, REAR LAMP LH

main81584-02A20iNRE180..N..TUP201606-201912

main81594-02520iNDE180..TUP201306-201912

9017605019

main90176-05019

90178T0049

main90178-T0049

9017905102

main90179-05102

27 parts on this diagram · 2 diagrams in section
